onsemi N-Channel Power MOSFET 40 V, 200 A, 110 W, 5-Pin DFN Surface Mount NTMFS5C430NLT1G

Free Delivery in India | Lowest Global Shipping Charges

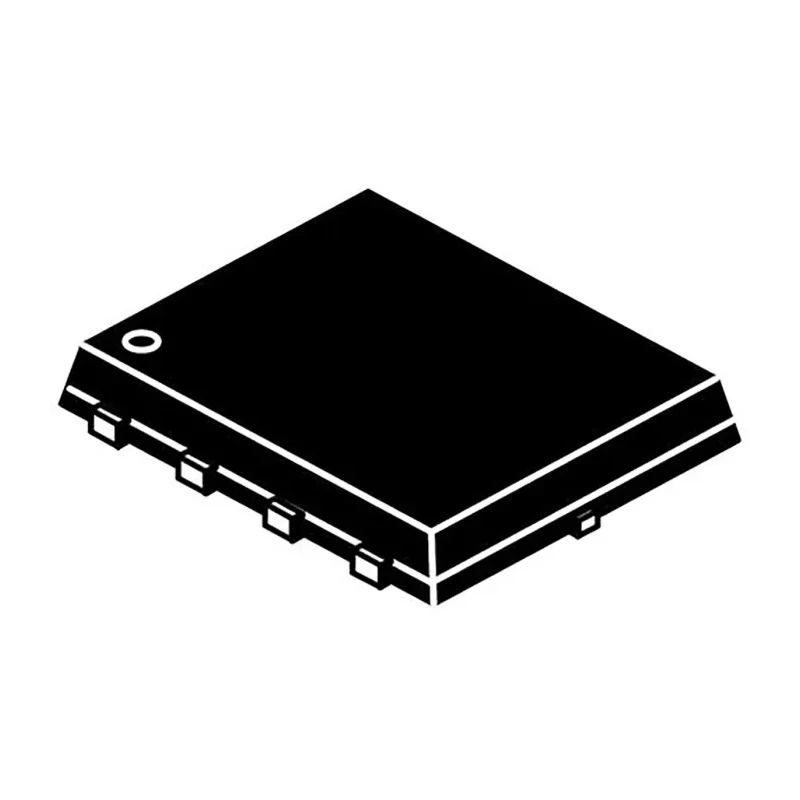

onsemi N-Channel Power MOSFET 40 V, 200 A, 110 W, 5-Pin DFN Surface Mount NTMFS5C430NLT1G

Name: onsemi N-Channel Power MOSFET 40 V, 200 A, 110 W, 5-Pin DFN Surface Mount NTMFS5C430NLT1G
Brand: onsemi
SKU: 412644
Price: 0.75 USD
Availability: InStock



Category Power MOSFET Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.1mm
Length	5.1mm
Model	NTMFS5C430NLT1G
Width	6.1mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	DFN
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS, Pb-Free
Pin Count	5
Channel Type	N
Maximum Continuous Drain Current Id	200A
Maximum Drain Source Voltage Vds	40V
Maximum Drain Source Resistance Rds	2.2mΩ
Channel Mode	Enhancement
Maximum Power Dissipation Pd	110W
Typical Gate Charge Qg @ Vgs	70nC
Maximum Gate Source Voltage Vgs	-20, +20V
Forward Voltage Vf	0.81V

Key Features

Supports a maximum power dissipation of 110 W.
Features an enhancement mode channel with low 2.2 mΩ drain-source resistance.
Operates efficiently at temperatures ranging from -55°C to 175°C.
Compact dimensions of 5.1 mm length, 6.1 mm width, and 1.1 mm height for surface mounting.
Typical gate charge of 70 nC ensures fast switching capabilities.
Rated for a maximum gate-source voltage of -20 V to +20 V.
RoHS compliant and Pb-free construction supports environmental standards.

Product Description

onsemi NTMFS5C430NLT1G is a high-performance N-Channel Power MOSFET designed for efficient switching and power management applications.

This MOSFET supports a maximum continuous drain current of 200 A and a drain-source voltage rating of 40 V, making it suitable for demanding industrial and automotive electronic systems.

The device features a low on-resistance of 2.2 mΩ in an enhancement mode channel, facilitating minimal conduction losses during operation.

It is packaged in a compact 5-pin DFN surface mount package with physical dimensions of 5.1 mm in length, 6.1 mm in width, and 1.1 mm in height, enabling integration in space-constrained PCB layouts.

Thermally robust, this MOSFET operates reliably across a broad temperature range from -55°C up to 175°C, supporting harsh environment conditions commonly found in industrial, automotive, and power supply applications.

The typical gate charge of 70 nC ensures fast switching speeds, essential for high-frequency power conversion and motor control circuits. Additional safety is provided with a maximum gate-source voltage tolerance from -20 V to +20 V.

This product complies with RoHS and is lead-free, aligning with global environmental and safety regulations. Supports a maximum power dissipation of 110 W. Compact 5-pin DFN package for surface mounting. Low Rds(on) for efficient energy usage.

Wide operating temperature range. Fast switching performance with low gate charge. RoHS and Pb-Free compliant. This MOSFET is intended for use in industrial electronics, power supplies, automotive controls, and other high-current switching applications.

Explore more power management components and semiconductor devices at EnvMart for quality and reliability.
