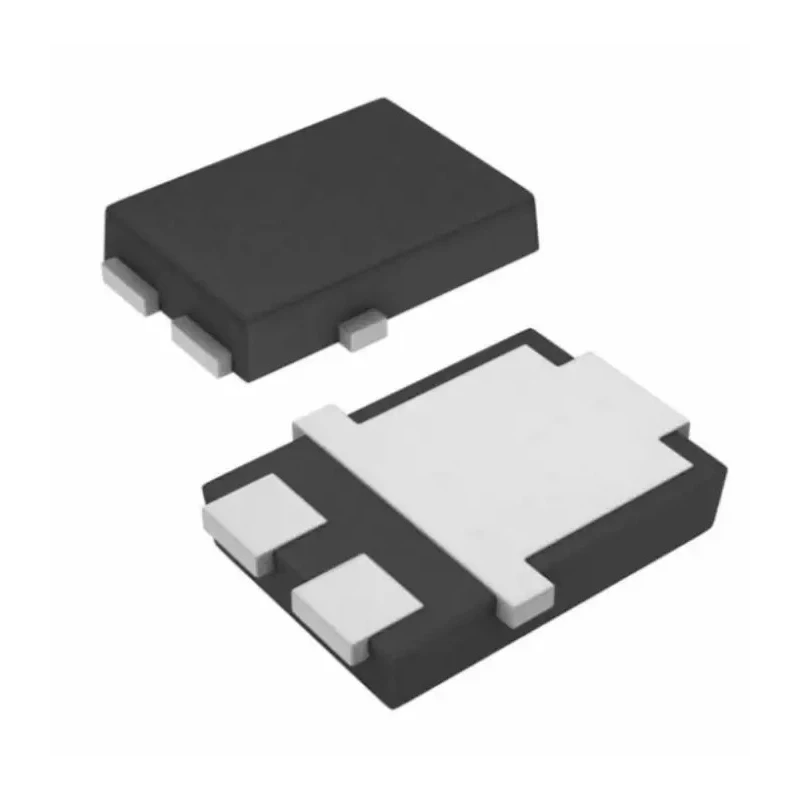

Vishay 100 V 12 A Schottky Diode Single Configuration 3-Pin TO-277 Package V12P10-M3/86A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 4.75mm |
| Model | V12P10-M3/86A |
| Width | 6.15mm |
| Mount Type | Surface |
| Series | V12 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 250μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 0.7V |
Key Features
- Patented trench MOS barrier technology enhances efficiency and switching speed.
- Maximum continuous forward current up to 12 amperes.
- Peak reverse voltage rating of 100 volts.
- Maximum forward voltage drop of 0.7 volts ensures low power loss.
- Operating temperature range from -40°C to 150°C for robust performance.
- Surface mount type suitable for automated assembly processes.
- Complies with automotive standard AEC-Q101 for quality assurance.
- Small dimensions with length 4.75 mm, width 6.15 mm, and height 1.2 mm.
Product Description
Vishay V12P10-M3/86A is a Schottky diode featuring a patented trench MOS barrier structure that significantly improves efficiency by minimizing minority carrier injection and stored charges. This design delivers faster switching speeds and reduced forward voltage drops compared to planar Schottky rectifiers, particularly at voltages of 45 V and above.
This diode supports a maximum continuous forward current of 12 A and can withstand peak repetitive reverse voltages of 100 V, making it suitable for demanding electronic applications.
The device uses a 3-pin TO-277 package with compact dimensions (length 4.75 mm, width 6.15 mm, height 1.2 mm), facilitating easy integration into surface-mount assemblies. Its peak forward voltage is 0.7 V, and it can endure a maximum operating temperature of 150°C.
Designed to meet automotive standard AEC-Q101, this component is reliable for use in automotive and industrial electronics. It is particularly effective in AC/DC switched mode power supplies and DC/DC converters where high efficiency and power density are critical.
Patented trench MOS barrier Schottky rectifier technology improves switching performance. High maximum continuous forward current of 12 A. Peak reverse repetitive voltage rating at 100 V. Compact TO-277 surface mount package type.
Low maximum forward voltage drop of 0.7 V. Wide operational temperature range from -40°C to 150°C. Compliant with automotive standard AEC-Q101. Peak surge current capability of 200 A for transient conditions.
This diode is manufactured in China and is suitable for industrial, automotive, electronic component manufacturing, and power supply applications. For further technical resources and design files, refer to Vishay's documentation.
Explore more Schottky diodes and rectifiers at EnvMart for diverse electronics components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 12 A.
The peak reverse voltage rating of this diode is 100 V.
The maximum forward voltage drop for this Schottky diode is 0.7 V.
The dimensions of the TO-277 package are 4.75 mm in length, 6.15 mm in width, and 1.2 mm in height.
The operating temperature range for this model is from -40°C to 150°C.
This diode complies with the automotive standard AEC-Q101 for quality assurance.
The peak non-repetitive forward surge current capability of this diode is 200 A.
This diode uses a surface mount type, suitable for automated assembly processes.
The pin count for this diode is 3.
This diode is a Schottky rectifier, featuring a patented trench MOS barrier structure.
The peak reverse current for this diode is 250 μA.
This diode is particularly effective in AC/DC switched mode power supplies and DC/DC converters where high efficiency and power density are critical.
