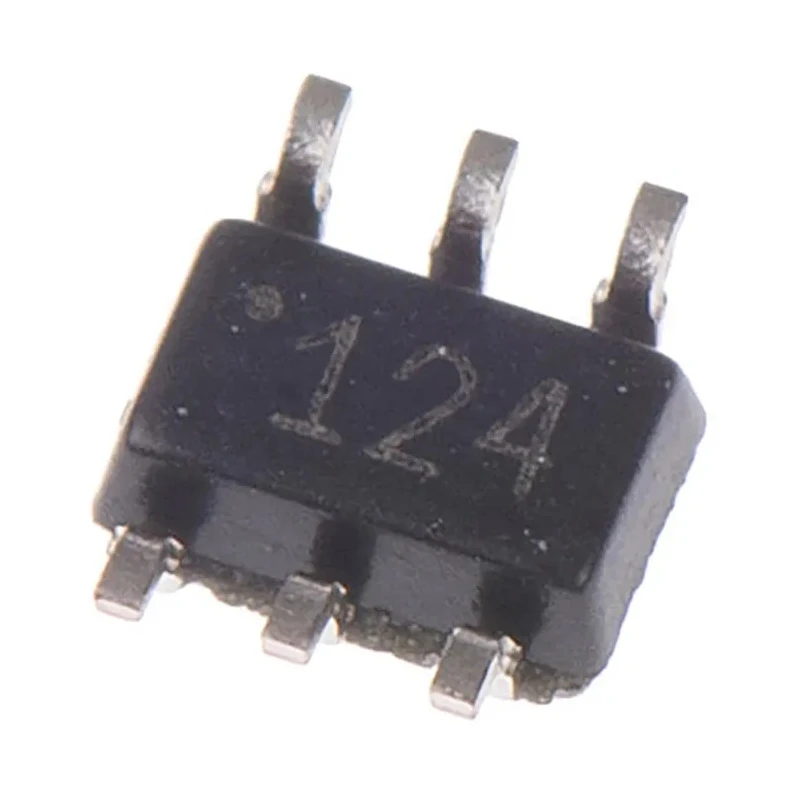

Texas Instruments Analogue Switch 1 CMOS Single SPDT Multiplexer 6-Pin SOT-323 SN74LVC1G3157DCKR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 2mm |
| Model | SN74LVC1G3157DCKR |
| Width | 1.25mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Series | SN74LVC1G3157 |
| Configuration | Single SPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 1.65 to 5.5 V |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 1.65V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 50Ω |
Key Features
- Operates over a voltage range of 1.65 to 5.5 V to support various low-voltage digital circuits.
- Features a maximum on state resistance of 50 ohms ensuring efficient signal switching.
- Built with CMOS logic family technology for reduced power consumption.
- Supports input compatibility with LVTTL/TTL and output compatibility with LVCMOS logic levels.
- Complies with RoHS standards and automotive standard AEC-Q100 for quality assurance.
- Compact dimensions of 2mm length, 1.25mm width, and 900μm height for space-constrained designs.
- Designed for surface mount applications on PCBs using the SOT-323 package.
- Rated for operation between -40°C to 85°C operating temperature for reliable use in diverse environments.
Product Description
Texas Instruments SN74LVC1G3157DCKR is a high-quality analogue switch utilizing 1 CMOS Single SPDT configuration in a compact 6-Pin SOT-323 surface mount package. Operating voltage ranges from 1.65 V to 5.5 V, making it suitable for low-voltage digital circuits and battery-powered devices.
This multiplexer IC exhibits a maximum on-state resistance of 50 ohms, enabling efficient conduction and signal integrity in multiplexing and switching applications. It incorporates CMOS technology for low power consumption and enhanced switching performance.
The device is compatible with input LVTTL/TTL and output LVCMOS levels, facilitating seamless integration with various digital logic families. RoHS compliant, this IC adheres to environmental standards and meets AEC-Q100 automotive standards, ensuring robust performance in automotive and industrial electronics.
Its compact form factor with physical dimensions of 2 mm length, 1.25 mm width, and a height of 900 μm makes it suitable for compact PCB layouts and high-density electronics assemblies.
Operating temperature ranges from -40°C to 85°C, allowing it to function reliably in demanding ambient conditions. Operates at low voltage from 1.65 to 5.5 V. CMOS logic family technology for power efficiency. Single SPDT switch configuration for signal multiplexing.
Maximum on resistance of 50Ω assures signal quality. Surface mount 6-Pin SOT-323 package for efficient PCB layout. Wide temperature range from -40°C to 85°C. RoHS and AEC-Q100 certified ensuring quality and safety.
This analogue switch IC is ideal for electronics, automotive, industrial control, and communications equipment requiring compact, low-voltage multiplexing with reliable switch performance. For further selection and complementary components browse related Multiplexer & Demultiplexer ICs on EnvMart.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a voltage range of 1.65 V to 5.5 V, making it suitable for low-voltage digital circuits.
The maximum on-state resistance is 50 ohms, ensuring efficient signal switching.
It is housed in a compact 6-Pin SOT-323 surface mount package, suitable for efficient PCB layout.
The dimensions are 2 mm in length, 1.25 mm in width, and 900 μm in height.
It supports input compatibility with LVTTL/TTL and output compatibility with LVCMOS logic levels.
The operating temperature range is from -40°C to 85°C, allowing reliable use in diverse environments.
It complies with the AEC-Q100 automotive standard, ensuring quality assurance for automotive applications.
Yes, it is RoHS compliant, adhering to environmental standards.
It features a Single SPDT (Single Pole Double Throw) configuration for signal multiplexing.
It is ideal for electronics, automotive, industrial control, and communications equipment requiring compact, low-voltage multiplexing.
This chip contains 1 element per chip, designed for single switch applications.
It utilizes CMOS logic family technology, which contributes to reduced power consumption.
