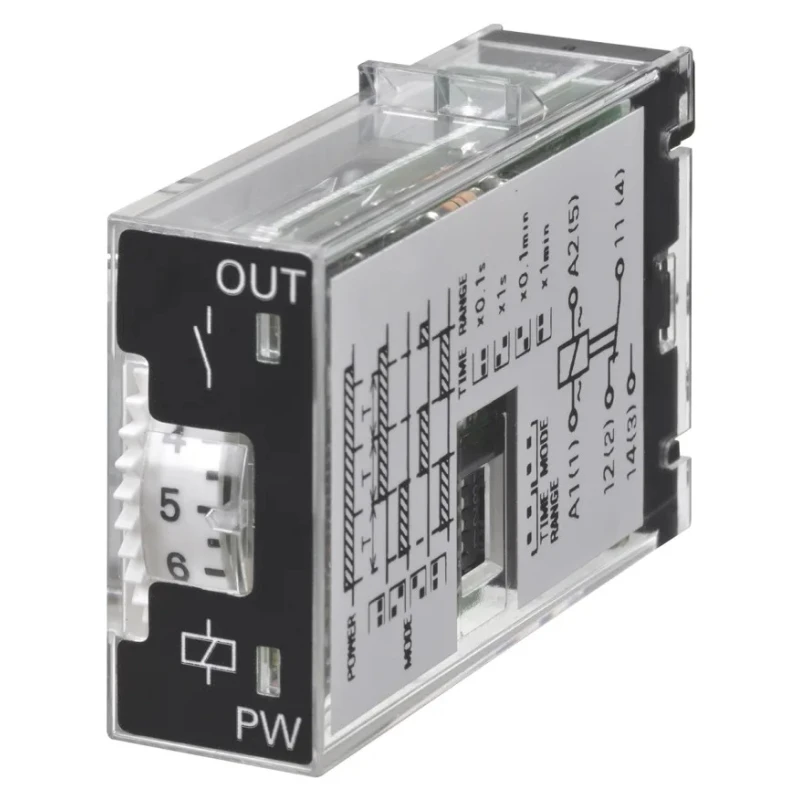

Omron Multifunction Panel Timer Relay 2-Contact SPDT 12-24 V DC 24V AC 0.1s to 10min IP40 H3RN
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 31.2mm |
| Function | Multifunction |
| Length | 12.8mm |
| Model | H3RN |
| IP Rating | IP40 |
| Mode | Multifunction |
| Width | 47.2mm |
| Mount Type | Panel |
| Series | H3RN |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 s to 10 min |
| Terminal type | Plug-In |
| Standards/Approvals | cURus, CE, UL, EN 61812-1, cULus, IEC 60664-1, CSA |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V ac |
| Contact Current | 3A |
| Supply DC Voltage | 12 to 24 V dc |
| Timing Adjustment | Swedish Pipe |
| Supply AC Voltage | 24V ac |
| Omron Plug In Timer Relay, 24V dc, 2-Contact, 0.1 → 600s, SPDTBrand | Omron |
Key Features
- Operates on 12 to 24 V DC and 24 V AC supply voltages.
- Supports switching voltage up to 250 V AC and contact current rating of 3A.
- Panel mount with plug-in terminals for easy installation and maintenance.
- Compact dimensions with 47.2mm width, 31.2mm height, and 12.8mm length.
- IP40 rated enclosure for protection from ingress of solid objects.
- Features multifunction timing modes suitable for diverse industrial applications.
- Designed for operation within −10°C to 55°C ambient temperature range.
- Certified to cURus, CE, UL, cULus, IEC 60664-1, CSA, and EN 61812-1 standards.
Product Description
Omron H3RN is a multifunction panel timer relay designed for versatile timing control in industrial automation and control panels. It supports 12 to 24 V DC and 24 V AC supply voltages, with a timing range from 0.1 seconds to 10 minutes, allowing precise time sequencing for various control tasks.
This timer relay features a 2-contact SPDT configuration rated for 3A contact current and switching voltage up to 250 V AC, making it suitable for moderate control loads. Its compact panel mount design with plug-in terminals ensures straightforward installation and maintenance within electrical control cabinets and automation systems.
The device is constructed with an IP40 rated enclosure protecting internal components from ingress of solid objects greater than 1mm, suitable for typical industrial environments. It operates reliably across a temperature range of −10°C to 55°C, making it adaptable to common industrial ambient conditions.
Timing adjustments are made via a Swedish Pipe mechanism enabling fine-tuning of intervals between 0.1 seconds and 10 minutes. The multifunction timing mode supports a variety of timing functions to meet diverse application requirements.
Omron H3RN carries relevant international certifications including UL, CE, IEC, CSA, and cURus approvals, ensuring conformity and safety for use in regulated industrial settings.
This timer relay is ideal for use in automation panels, relay logic control in manufacturing machinery, test equipment timing control, and various delay or cyclic operations in electrical control systems.
Operates on 12 to 24 V DC and 24 V AC supply voltages. 2-contact SPDT configuration with 3A contact current rating. Timing range from 0.1 seconds to 10 minutes with multifunction modes. Panel mount with plug-in terminal type for easy wiring.
IP40 protection and operating temperature from −10°C to 55°C. Compact dimensions: 47.2mm width, 31.2mm height, 12.8mm length. Certified to UL, CE, IEC, CSA, and cURus standards. Explore more Omron Timer Relays and related control components on EnvMart for industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates on a supply voltage range of 12 to 24 V DC and 24 V AC.
It features a 2-contact SPDT (Single Pole Double Throw) configuration.
The maximum switching voltage for this unit is 250 V AC.
The contact current rating is 3A.
The timing range is from 0.1 seconds to 10 minutes.
The dimensions are 47.2mm in width, 31.2mm in height, and 12.8mm in length.
The enclosure has an IP40 rating, providing protection against solid objects greater than 1mm.
It operates reliably within a temperature range of −10°C to 55°C.
This model is designed for panel mounting with plug-in terminals for easy installation.
It is certified to cURus, CE, UL, cULus, IEC 60664-1, CSA, and EN 61812-1 standards.
Timing adjustments are made using a Swedish Pipe mechanism, allowing fine-tuning of intervals.
It is suitable for various applications such as automation panels, relay logic control, and timing control in manufacturing equipment.
