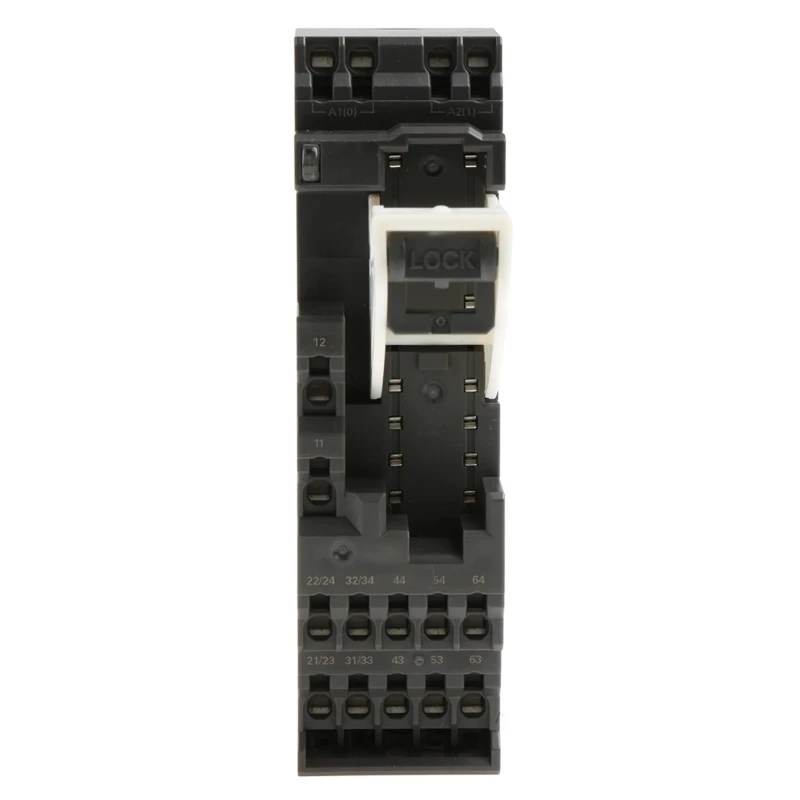

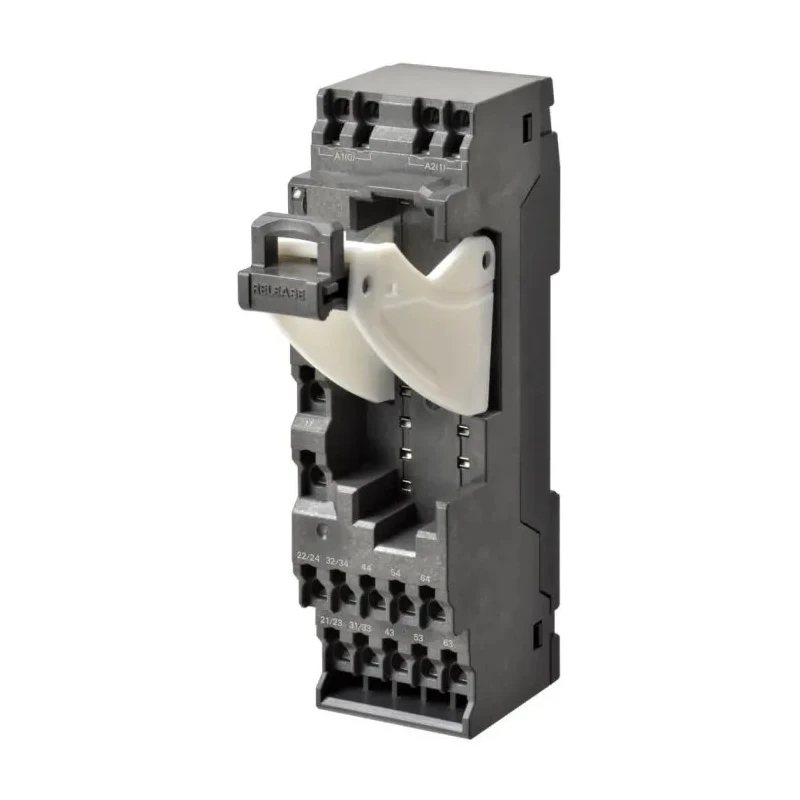

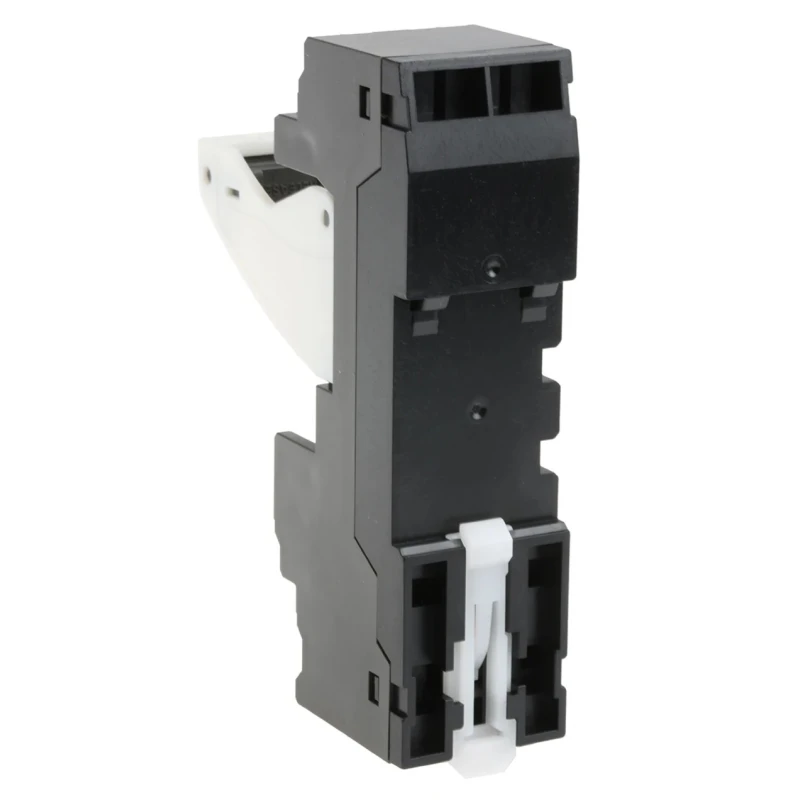

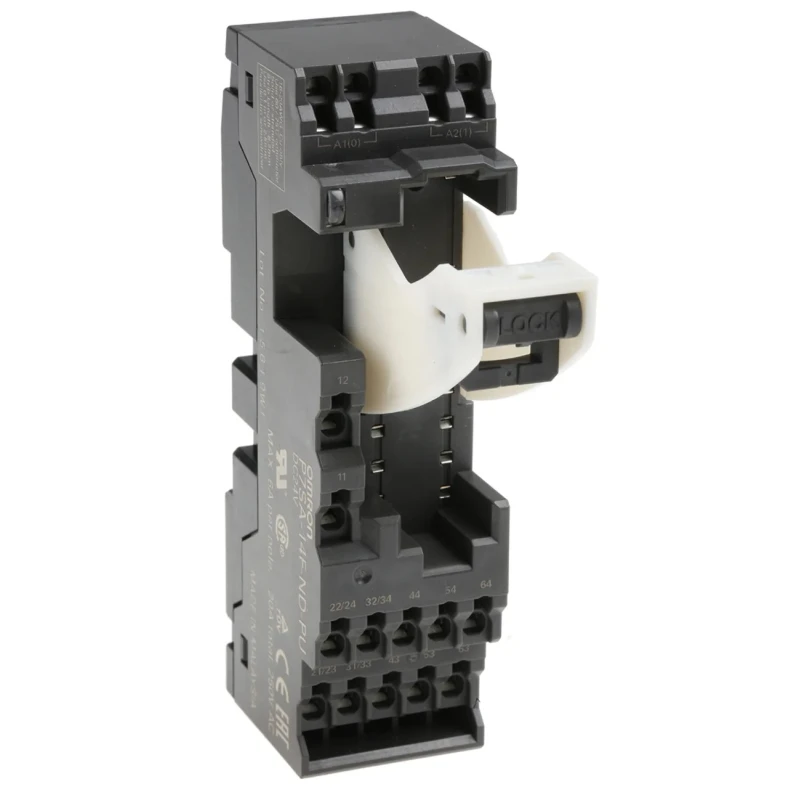

Omron 14 Way 24V DC DIN Rail Relay Socket for G7SA Series Relay P7SA

Omron P7SA 14 Way 24V DC DIN Rail Relay Socket offers a reliable interface for G7SA Series Relay modules. With a robust 14-contact socket design, this product supports a 6A current rating at 24V DC, making it suitable for light industrial control applications.

Featuring push-in terminal technology, the socket allows for quick and secure wire attachment, supporting solid, stranded, or ferrule pre-terminated wires. The DIN rail mounting facilitates straightforward installation and stable positioning within electrical panels.

The device is engineered with flux-tight sealing to prevent ingress of contaminants, enhancing durability in challenging environments. It incorporates a hold-down clip and release lever for rapid relay servicing, reducing maintenance time.

With dielectric strength of 4kV AC for 1 minute, it withstands sudden voltage surges without failure, ensuring operational safety and reliability. Due to its compact 27.7 mm width and lightweight design (approximately 70g), it is easy to handle and install.

Common industrial use cases include application in HVAC systems, industrial lighting equipment, marine vessels, military vehicles, and medical devices. This socket serves important roles in control inverter circuits and various automation systems.

The Omron P7SA relay socket complies with RoHS standards, making it suitable for environmentally conscious applications. The product is manufactured in Malaysia, reflecting high-quality industrial standards.

This relay socket features a 14-pin configuration suitable for G7SA relays. Operates at 24V DC voltage with a current rating of 6A for light-duty applications. Mount type is DIN rail for easy integration into control panels.

Push-in terminals enable fast and reliable wire insertion and connection. Constructed with flux-tight sealing to protect against contaminants and extend service life. Includes a hold-down clip and release lever for quick relay replacement.

Dielectric strength of 4kV AC for 1 minute ensures resistance to power spikes. Compact width of 27.7mm facilitates space-saving panel designs. Browse the Electronics & Electricals category at EnvMart for more Relay Sockets and related automation components from top brands including Omron.
