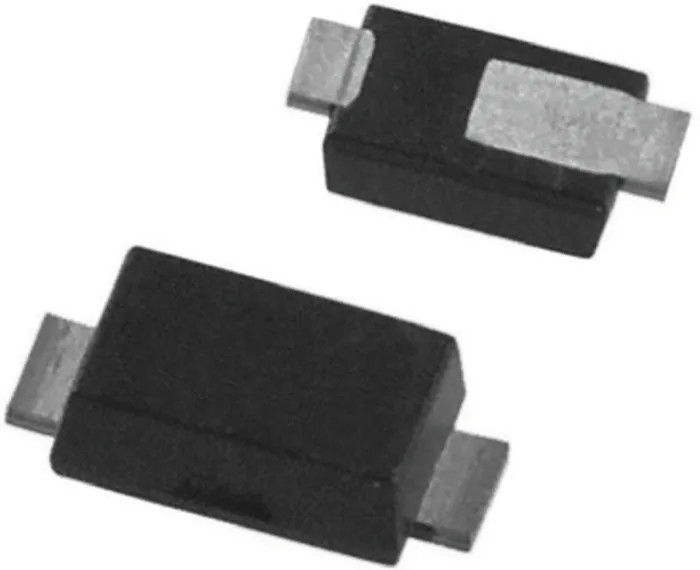

DiodesZetex 100 V 1 A Schottky Diode 2-Pin PowerDI123 Package DFLS1100-7

DiodesZetex DFLS1100-7 is a high-performance Schottky diode designed for electronic circuits requiring efficient rectification with low forward voltage drop. Packaged in a compact PowerDI123 surface mount format, this diode ensures reliable conduction of up to 1 ampere continuous forward current with a peak reverse blocking voltage of 100 volts.

The device’s low forward voltage of 860 millivolts contributes to reduced power loss and improved efficiency, critical for power-sensitive applications in automotive, industrial, and consumer electronic devices. Its ability to withstand peak surge currents of up to 50 amperes makes it suitable for transient events without damage.

With operating temperature extremes ranging from -55°C to 175°C, the DFLS1100-7 diode maintains stable electrical characteristics in harsh environments, supported by compliance with the automotive industry’s AEC-Q101 standard. The diode’s small footprint (3 mm length × 1.93 mm width × 1 mm height) facilitates high-density PCB designs.

This single Schottky diode configuration features minimal reverse leakage current of just 1 microampere, enhancing circuit reliability. Manufactured to FBI quality standards in China, it is a robust choice for power switching, voltage clamping, freewheeling diode, and polarity protection applications in various industrial, automotive, and consumer electronics systems.

This Schottky diode offers a maximum continuous forward current of 1 ampere. It features a peak reverse repetitive voltage of 100 volts for effective blocking. Designed with a low forward voltage drop of 860 millivolts for high efficiency.

Supports peak non-repetitive forward surge current up to 50 amperes for transient conditions. Compact dimensions with length 3 mm, width 1.93 mm, and height 1 mm for space-saving PCB layouts. Operates reliably across a temperature range from minus 55°C to 175°C.

Certified to automotive standard AEC-Q101 ensuring suitability for demanding automotive applications. Constructed as a single diode configuration in a PowerDI123 surface mount package. Peak reverse current leakage limited to 1 microampere at rated conditions.

Manufactured in China with FBI standards compliance for quality assurance.

This diode is ideal for industrial electronics, automotive electronic control units, power rectification, voltage protection circuits, and general semiconductor applications. Explore the DiodesZetex product range and related Schottky diodes & rectifiers on EnvMart for trusted quality and performance.
