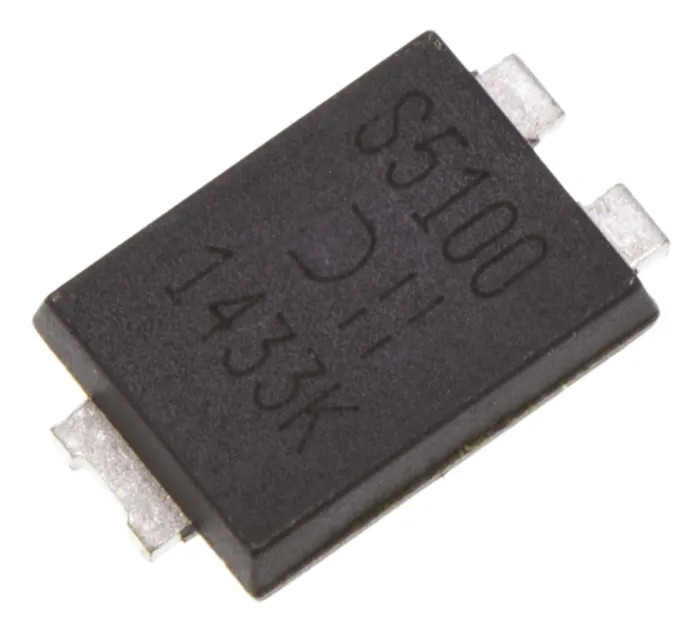

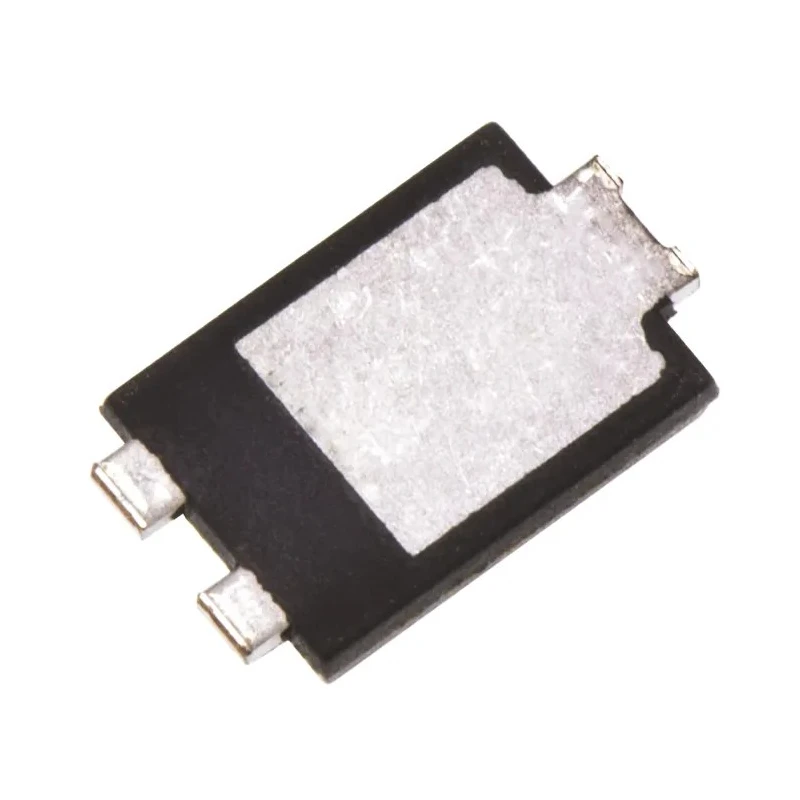

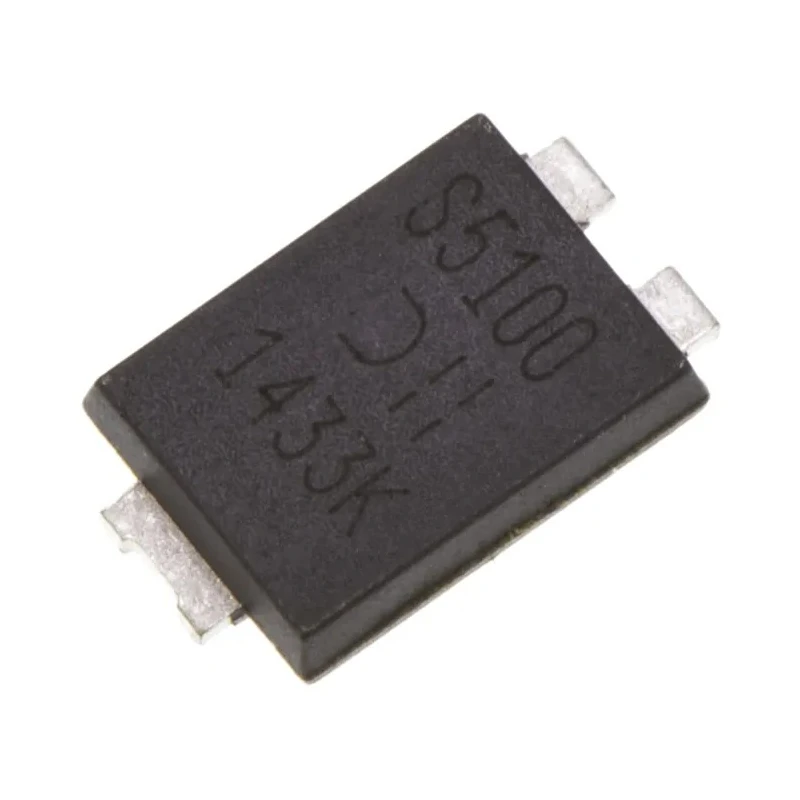

DiodesZetex 100 V 5 A Surface Mount Schottky Diode PowerDI5 3-Pin PDS5100-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 4.05mm |
| Model | PDS5100-13 |
| Width | 5.45mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 890mV |
Key Features
- Operates with a maximum forward voltage of 890 mV for efficient conduction.
- Supports peak non-repetitive forward surge current up to 120 A.
- Designed for temperature operation range from -65°C to 150°C ensuring reliability.
- Offers low peak reverse current of 20 mA to minimize leakage.
- Compact dimensions with length 4.05 mm, width 5.45 mm, and height 1.15 mm.
- Meets automotive standard AEC-Q101 for high quality and durability.
- Surface mount mount type in a PowerDI5 package for easy PCB integration.
- Suitable for use in power supplies, automotive electronics, and high frequency rectification.
Product Description
DiodesZetex PDS5100-13 Schottky Diode is a high-performance discrete semiconductor designed for efficient power rectification applications. This surface mount diode supports a maximum continuous forward current of 5 A and peak reverse repetitive voltage of 100 V, packaged in a compact PowerDI5 3-pin configuration suitable for space-constrained PCBs.
The device features a low forward voltage drop of 890 mV which reduces power losses and increases efficiency in power circuits. With a peak non-repetitive forward surge current rating of 120 A, it is capable of handling transient current spikes without damage.
Its operating temperature range from -65°C to 150°C makes it reliable for harsh and automotive environments. The diode’s minimal peak reverse current of 20 mA ensures low leakage current and better performance at high frequencies.
Measuring 4.05 mm in length, 5.45 mm in width, and 1.15 mm in height, it is designed for surface mounting with a PowerDI5 package that simplifies assembly and improves mechanical stability.
This Schottky diode complies with the automotive standard AEC-Q101, guaranteeing reliability and longevity in automotive and industrial applications. It is well suited for power supply units, voltage clamping, freewheeling diodes, and other semiconductor switching circuits requiring fast recovery and low forward voltage characteristics.
Operates with a maximum forward voltage of 890 mV for efficient conduction. Supports peak non-repetitive forward surge current up to 120 A. Designed for temperature operation range from -65°C to 150°C ensuring reliability.
Offers low peak reverse current of 20 mA to minimize leakage. Compact dimensions with length 4.05 mm, width 5.45 mm, and height 1.15 mm. Meets automotive standard AEC-Q101 for high quality and durability. Surface mount mount type in a PowerDI5 package for easy PCB integration.
Suitable for use in power supplies, automotive electronics, and high frequency rectification. Explore more semiconductor solutions and Schottky diode options at EnvMart to optimize your electronic designs and manufacturing processes.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 5 A.
This diode has a peak reverse repetitive voltage rating of 100 V.
It operates with a maximum forward voltage drop of 890 mV.
The operating temperature range is from -65°C to 150°C.
It supports a peak non-repetitive forward surge current of up to 120 A.
The diode measures 4.05 mm in length, 5.45 mm in width, and 1.15 mm in height.
The peak reverse current is 20 mA, which helps minimize leakage.
It is packaged in a PowerDI5 configuration suitable for surface mounting.
Yes, it meets the automotive standard AEC-Q101, making it suitable for automotive applications.
This Schottky diode has a single diode configuration.
It complies with the FBI standard for quality and performance.
It is suitable for use in power supplies, automotive electronics, and high-frequency rectification.
