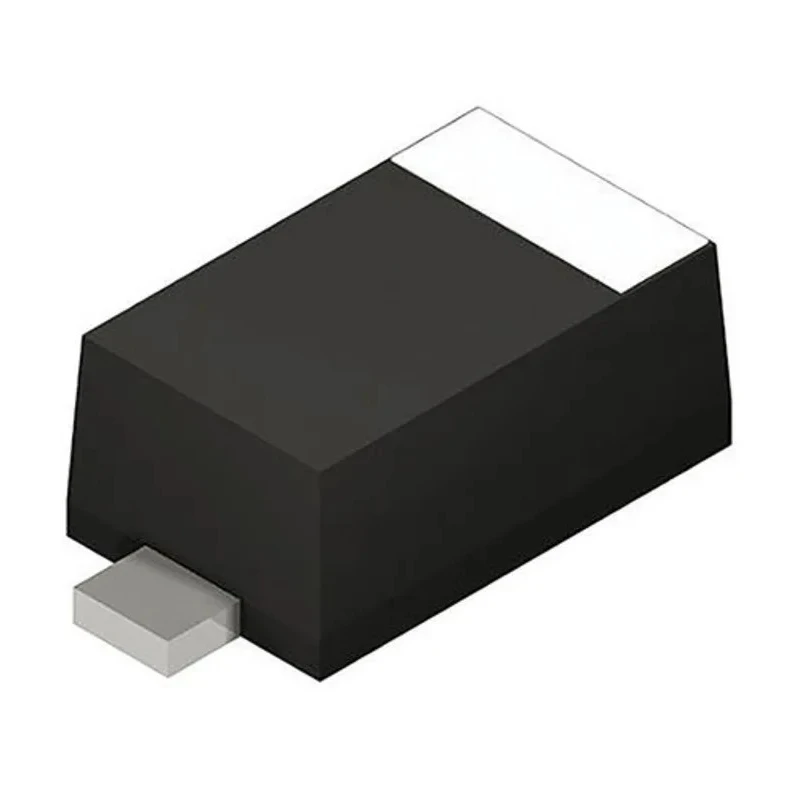

DiodesZetex 100 V 2 A Surface Mount Schottky Diode 2-Pin SOD-123 SDM2100S1F-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 100 V 2 A Surface Mount Schottky Diode 2-Pin SOD-123 SDM2100S1F-7

Name: DiodesZetex 100 V 2 A Surface Mount Schottky Diode 2-Pin SOD-123 SDM2100S1F-7
Brand: DiodesZetex
SKU: 147269
Price: 0.19 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.15mm
Length	2.8mm
Model	SDM2100S1F-7
Width	1.9mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Standards/Approvals	FBI
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	1mA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	830mV

Key Features

Constructed with a guard ring die to provide transient protection.
Features low forward voltage drop for reduced power loss.
Interlocking clip design supports high surge current capacity.
Qualified to automotive standard AEC-Q101 for reliability.
RoHS compliant with lead-free finish and halogen-free materials.
Compact package dimensions of 2.8mm length by 1.9mm width and 1.15mm height.
Wide operating temperature range from -55°C to 175°C.
Peak non-repetitive forward surge current is 50 A suitable for surge conditions.

Product Description

DiodesZetex SDM2100S1F-7 is a surface mount Schottky diode designed for efficient rectification in electronic circuits. It is rated for a maximum continuous forward current of 2 Amps and can withstand a peak reverse voltage of 100 Volts. Housed in a compact 2-pin SOD-123 package, this diode provides low forward voltage drop of 830mV, minimizing power loss and improving system efficiency.

This device uses guard ring die construction to protect against transient voltages, elevating reliability in demanding environments. Its interlocking clip design enhances surge current capacity up to 50 Amps non-repetitive forward surge, accommodating sudden current spikes typical in industrial and automotive applications.

The component is qualified to AEC-Q101 automotive standards, making it suitable for automotive electronics requiring stringent quality and endurance. It operates over a wide temperature range from -55°C up to 175°C, ensuring stable performance in extreme conditions.

RoHS compliant with a lead-free finish and free of halogens and antimony, this diode supports environmental regulations and green design initiatives. Its small dimensions (2.8mm length, 1.9mm width, and 1.15mm height) facilitate space-efficient PCB layouts.

Guard ring die construction for transient voltage protection. Low forward voltage reduces power dissipation in circuits. Interlocking clip design enhances surge current handling. AEC-Q101 certified for automotive-grade applications.

Lead-free, RoHS compliant, and environmentally friendly materials. Compact SOD-123 surface mount package. Wide operational temperature from -55°C to 175°C. Peak non-repetitive surge current rating of 50 A. Single rectifier diode with 2 pins for easy integration.

This Schottky diode is ideal for use in industrial, automotive, power supply, and electronic circuit protection applications, helping designers achieve high efficiency and reliability. Browse more Schottky diodes and rectifiers at EnvMart for diverse technical needs.
