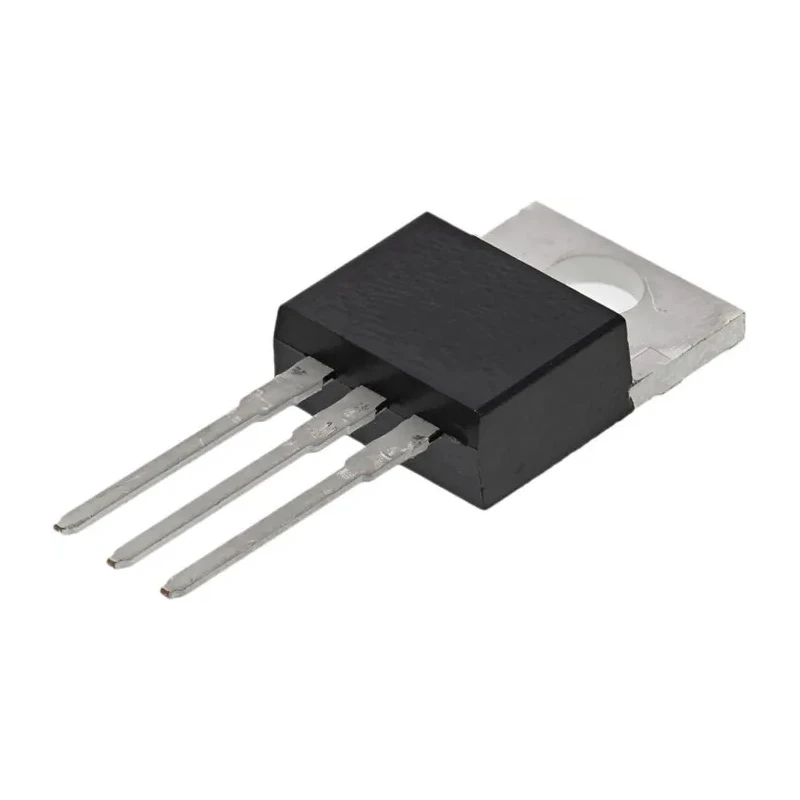

DiodesZetex 100 V 30 A Switching 4-Pin TO-220AB Diode SDT30A100CT

DiodesZetex SDT30A100CT is a robust switching diode designed for industrial and electronic applications requiring reliable Schottky barrier rectification. Featuring a 4-pin TO-220AB through-hole package, this diode supports a peak continuous forward current of 30 amperes and a peak reverse repetitive voltage rating of 100 volts, making it ideal for power management and switching circuits operating at these levels.

The device incorporates a 2x common cathode pair diode configuration, which delivers efficient conduction with a low forward voltage drop of only 730 millivolts. With a peak non-repetitive forward surge current of 200 amperes, it withstands transient surges without degradation, ensuring longevity and durability in demanding environments.

Designed for reliable operation over a wide temperature range from -55°C to 150°C, the SDT30A100CT ensures performance stability under harsh operating conditions commonly found in industrial, automotive, and power supply applications.

The diode's compact dimensions - 16.51 mm height, 10.66 mm length, and 4.82 mm width - facilitate flexible mounting on printed circuit boards using standard through-hole techniques. Its compliance with FBI standards further reinforces its suitability for high-reliability use cases requiring certified components.

The diode features a 2x common cathode pair configuration for efficient operation. Maximum continuous forward current of 30 amperes ensures robust performance. Maximum forward voltage is 730 millivolts for energy-efficient conduction.

Peak reverse repetitive voltage withstands up to 100 volts in switching roles. Wide operating temperature range from -55°C to 150°C for diverse applications. Peak surge current capability of 200 amperes provides transient protection.

Compact TO-220AB package designed for through-hole mounting and easy PCB integration. Built to FBI certification standards emphasizing quality and durability.

Suitable for multiple industrial, electronic, and automotive applications such as power supplies, voltage regulation, and switching circuits, the DiodesZetex SDT30A100CT provides reliable and efficient diode rectification performance combined with proven durability. This makes it a preferred component choice for engineers designing circuits that demand stability, efficiency, and compliance with rigorous standards.
