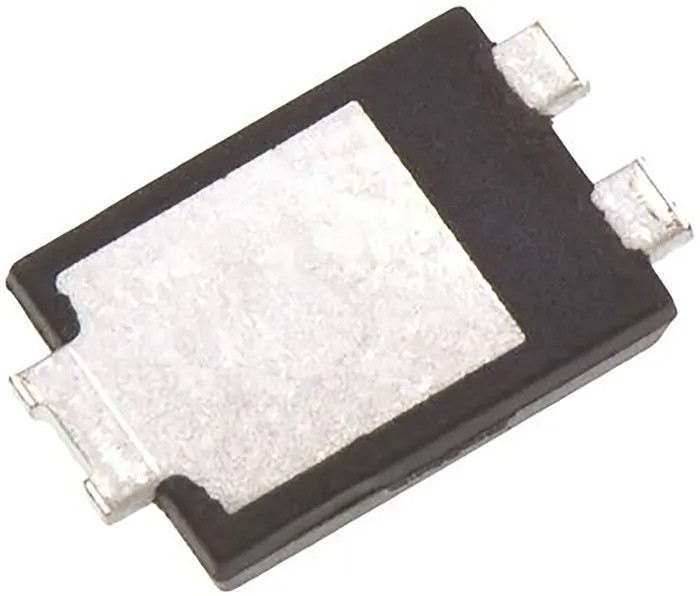

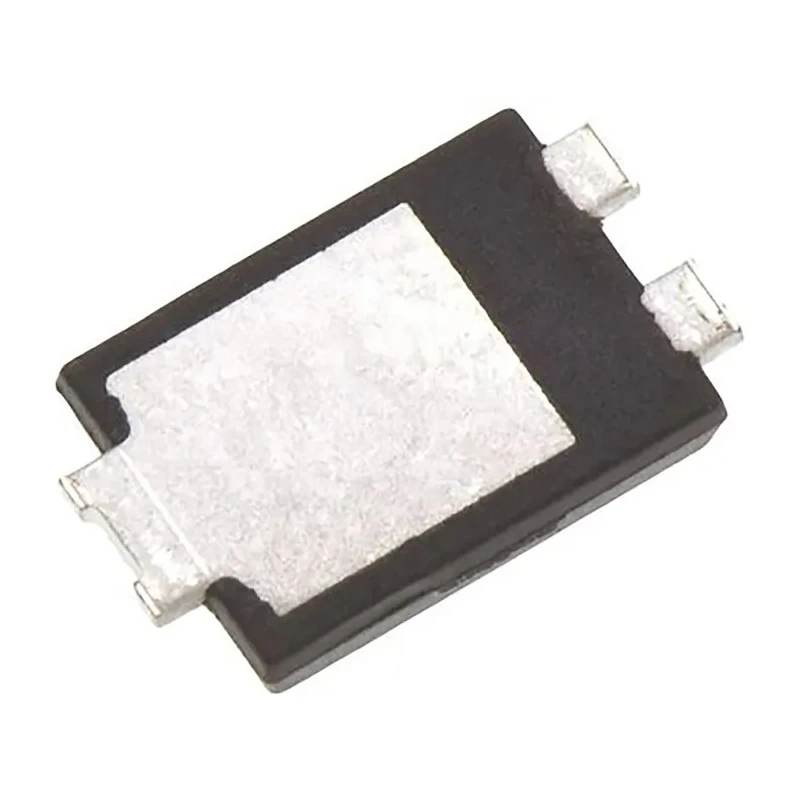

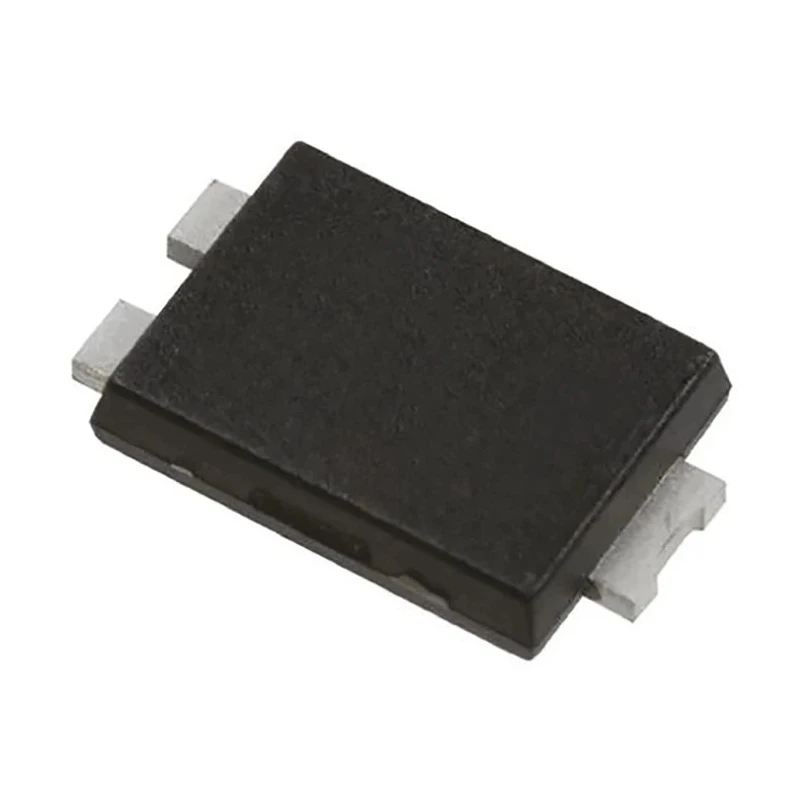

DiodesZetex 100 V 5 A Switching Diode 3-Pin PowerDI5 SDT5H100LP5-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 5.45mm |
| Model | SDT5H100LP5-7 |
| Width | 4.05mm |
| Mount Type | Surface |
| Series | 5A TRENCH SCHOTTKY BARRIER RECTIFIER |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 4.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 660mV |
Key Features
- Supports maximum continuous forward current of 5 A.
- Peak reverse repetitive voltage capability of 100 V.
- Features a low maximum forward voltage of 660 mV for efficient switching.
- Operates reliably from -55°C to 150°C.
- Provides high surge current tolerance with 150 A peak non-repetitive forward surge current.
- Compact 3-pin surface mount PowerDI5 package with dimensions 5.45 mm length, 4.05 mm width, and 1.1 mm height.
- Single diode configuration optimized for switching applications.
- Peak reverse current is 4.5 mA ensuring minimal leakage.
Product Description
DiodesZetex SDT5H100LP5-7 is a high-performance 100 V 5 A switching diode in a compact 3-pin PowerDI5 package designed for automated industrial and electronic applications. This surface-mount Schottky barrier diode offers low forward voltage drop of 660 mV, enhancing efficiency and reducing power loss in power rectification circuits.
Operating reliably across a wide temperature range of -55°C to 150°C, it ensures robustness in demanding environments such as automotive electronics, power supplies, and industrial control systems. Its ability to withstand peak non-repetitive surge current up to 150 A provides enhanced reliability during transient overload conditions.
The device’s small footprint (5.45 mm long, 4.05 mm wide, and 1.1 mm high) allows for high-density mounting on PCBs, facilitating compact and lightweight electronic designs. The diode’s single configuration and surface mount design make it suitable for various switching and rectification applications.
This diode features a peak reverse repetitive voltage of 100 V, aligning with common industrial standards, and a low peak reverse current leakage of 4.5 mA, assuring minimal power wastage and enhanced circuit performance.
Complying with FBI standards, the diode guarantees quality and reliability required in professional electronic components manufacturing. It is manufactured in China under strict quality controls to ensure consistency and performance reliability in industrial and high-volume applications.
Typical applications include power management in electronic equipment, switching regulators, and discrete semiconductor circuits used in telecommunications, manufacturing automation, and automotive sectors.
Supports maximum continuous forward current of 5 A. Low maximum forward voltage of 660 mV reduces conduction losses. Wide operating temperature range from -55°C to 150°C ensures durability. Compact PowerDI5 package suitable for surface mounting.
High peak non-repetitive surge current of 150 A enhances transient tolerance. Complies with FBI standards for electronic component reliability. Single diode configuration optimized for switching rectification. Peak reverse voltage rating of 100 V aligns with industrial requirements.
Manufactured in China under stringent quality controls. Explore more semiconductor and diode solutions on EnvMart to enhance your industrial and electronic assemblies with trusted, high-quality components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 5 A.
It has a peak reverse repetitive voltage capability of 100 V.
The diode features a low maximum forward voltage of 660 mV, which enhances efficiency during operation.
This unit operates reliably within a temperature range of -55°C to 150°C.
It can withstand a peak non-repetitive forward surge current of 150 A.
The dimensions of the PowerDI5 package are 5.45 mm in length, 4.05 mm in width, and 1.1 mm in height.
This model supports surface mounting, making it suitable for high-density PCB designs.
The peak reverse current is 4.5 mA, ensuring minimal leakage during operation.
Yes, it complies with FBI standards for electronic component reliability.
It features a single diode configuration optimized for switching applications.
Typical applications include power management in electronic equipment, switching regulators, and discrete semiconductor circuits in various sectors.
This diode is manufactured in China under strict quality controls to ensure performance reliability.
