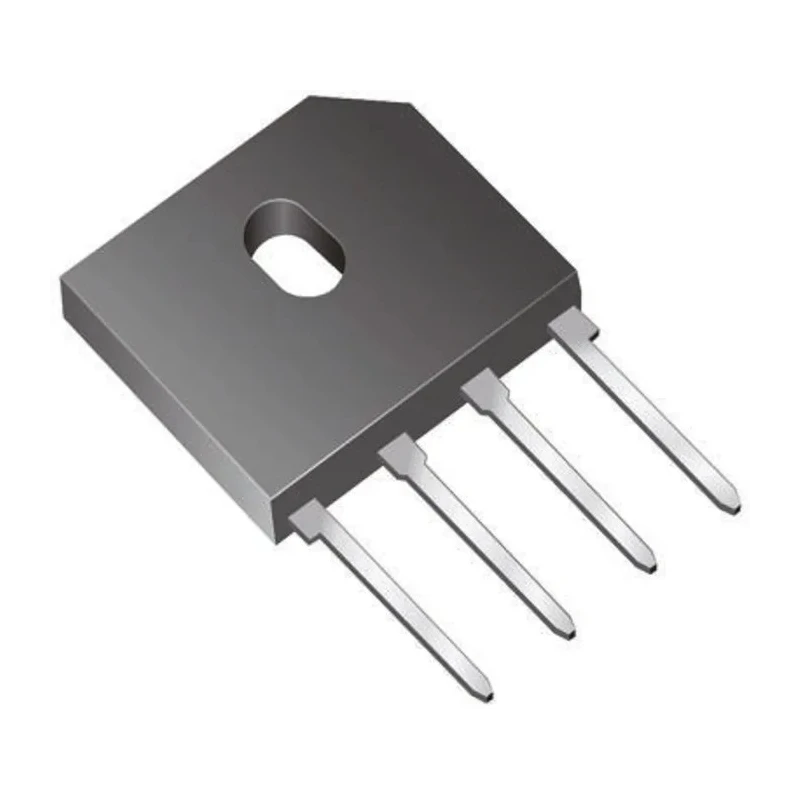

Vishay Bridge Rectifier Single Phase 600 V Peak Reverse Voltage 175 A Surge Current 4-Pin Through Hole GBU6J-E3/51

The Vishay GBU6J-E3/51 Bridge Rectifier is a high-performance single-phase rectifier designed for reliable AC to DC conversion in industrial and electronic applications. This device supports a peak reverse voltage of 600 V and can handle a peak forward surge current of 175 A, making it suited for demanding power rectification tasks.

Equipped with a 4-pin through-hole mount package of the GBU type, this bridge rectifier facilitates easy integration onto printed circuit boards. Its construction includes glass passivated junctions, enhancing thermal stability and long-term reliability.

Operating temperature range from -55°C to 150°C ensures robust performance in harsh environments. The rectifier exhibits a low peak forward voltage of 1 V and a minimal peak reverse current of 5 μA, contributing to energy efficiency and reduced power losses.

The compact form factor with dimensions 22.3 mm (length), 18.8 mm (height), and 3.56 mm (width) allows usage in space-constrained equipment. Its high case dielectric strength of 1500 Vrms further guarantees electrical isolation and safety.

Ideal for industrial, electronic, and power supply applications, this Vishay bridge rectifier offers high surge capability, compact design, and dependable operation under various thermal and electrical conditions.

Features a 4-pin configuration for through-hole mounting on PCBs. Operates reliably within -55°C to 150°C temperature range. Constructed with glass passivated junction for enhanced durability. Designed for full-wave rectification with high surge current capability.

Compact dimensions: 22.3 mm length, 18.8 mm height, and 3.56 mm width. Peak forward voltage of 1 V ensures efficient conduction. Low peak reverse current of 5 μA minimizes leakage. High dielectric strength case rated at 1500 Vrms.
