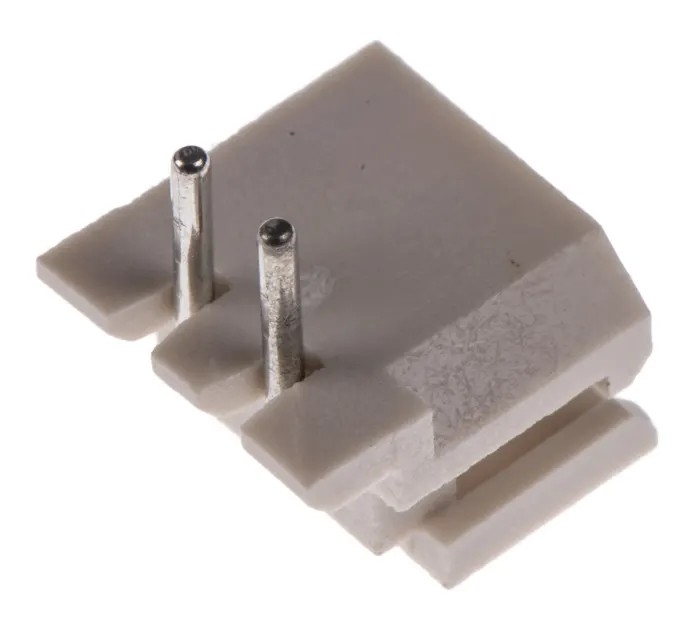

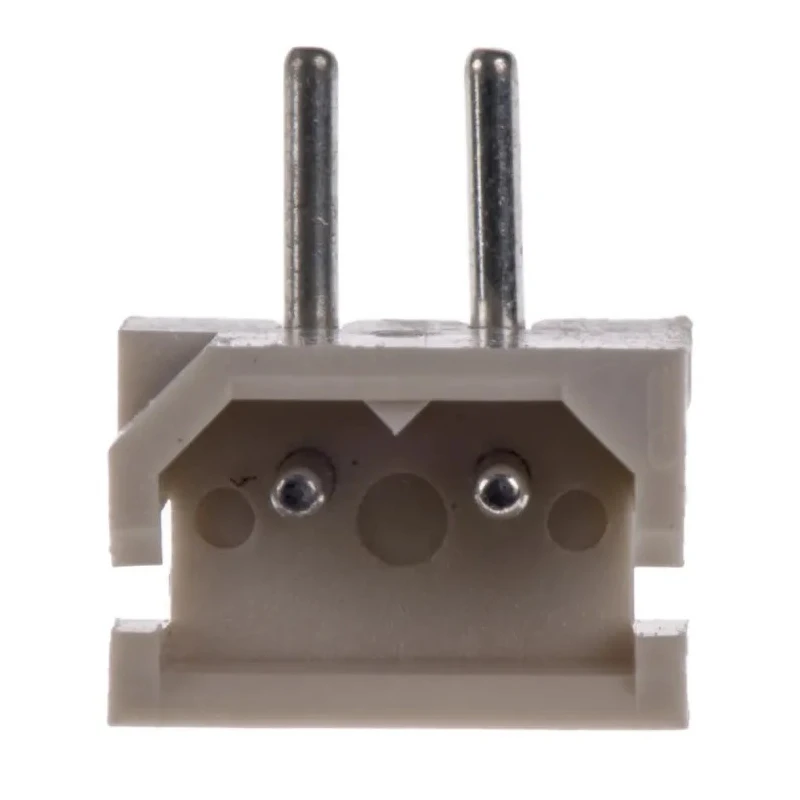

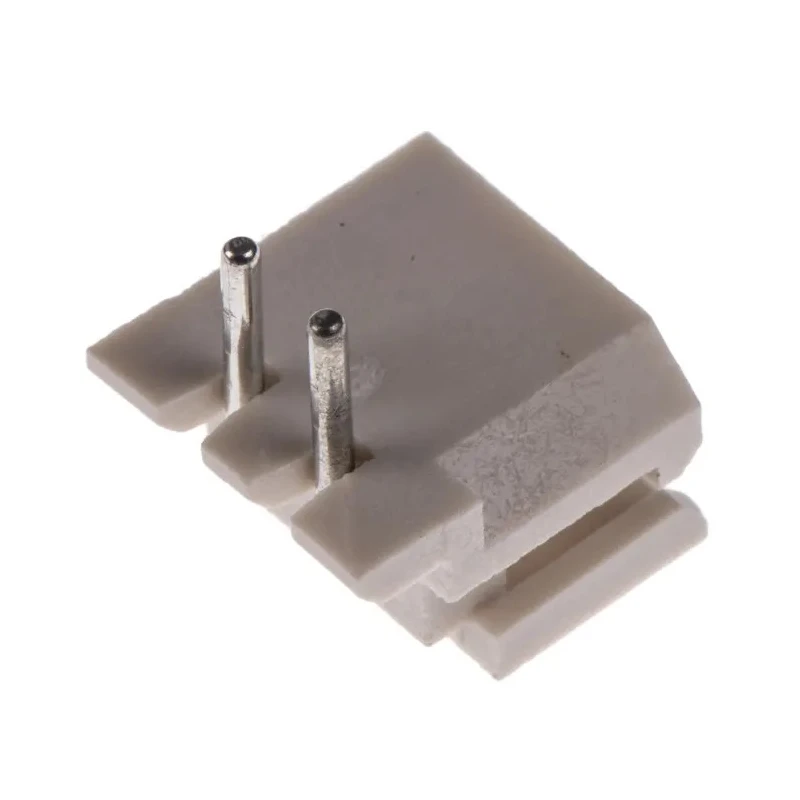

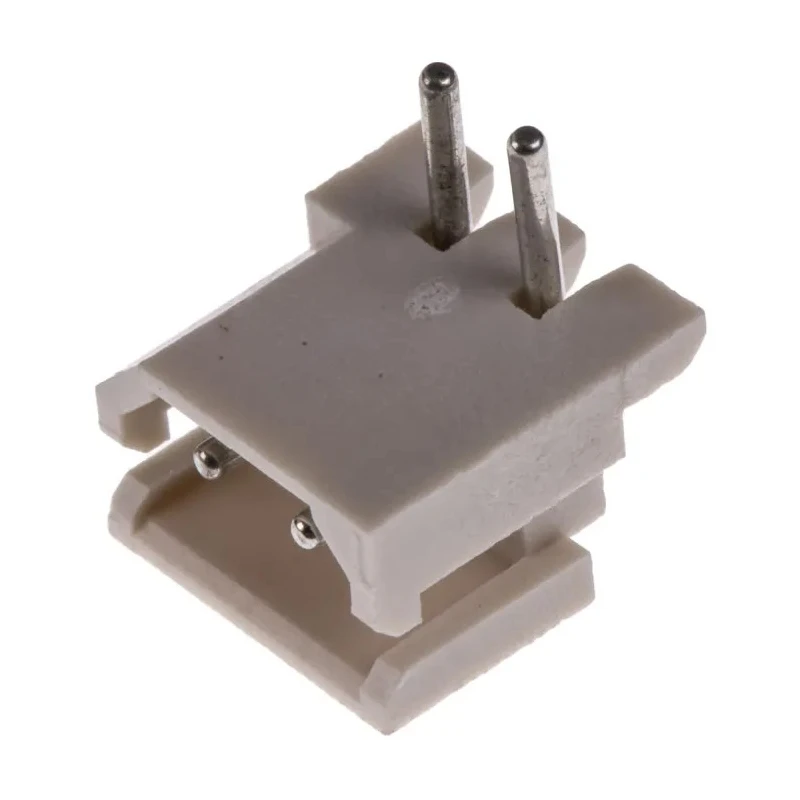

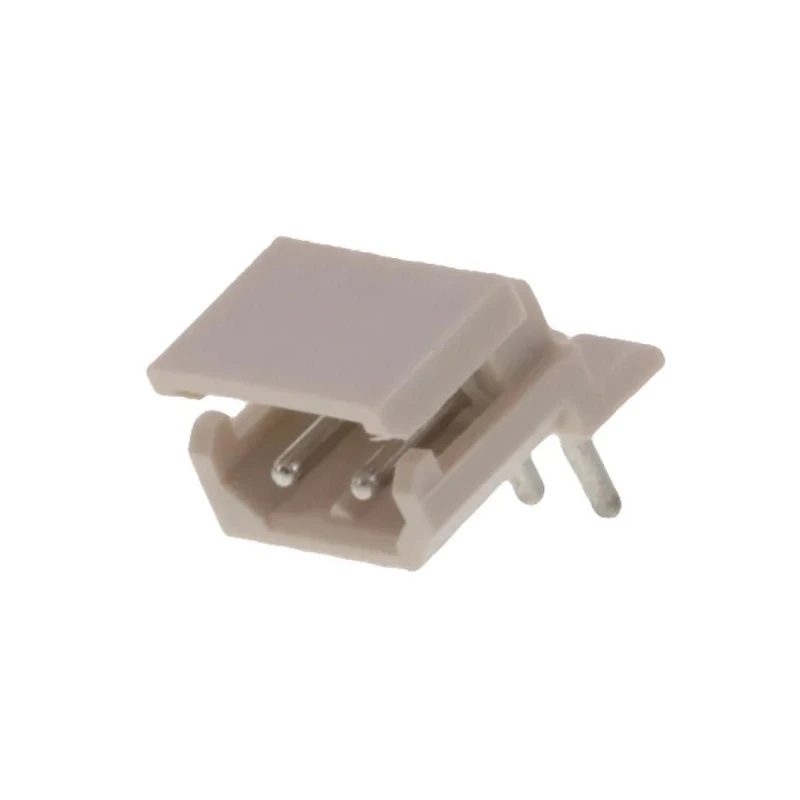

Molex SPOX Series Right Angle Through Hole PCB Header, 2 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded 22-05-7025

Molex 22-05-7025 SPOX Series PCB Header is a shrouded, right angle through hole connector designed for wire-to-board applications. It features 2 contacts arranged in a single row with a 2.5 mm pitch, allowing secure and reliable electrical connections in compact electronic assemblies.

This PCB header is fabricated using a nylon housing that ensures improved thermal stability and durability under demanding operating conditions. The brass contacts plated with tin provide high conductivity and resistance to corrosion, maintaining signal integrity and mechanical robustness.

With a current rating of 3A and voltage rating up to 250V, this connector supports various signal transfer needs in automation, electrical equipment, and industrial electronic devices. The solder termination type with a 3.5 mm tail pin length facilitates sturdy and long-lasting PCB soldering connections.

The right angle orientation enables optimal space utilization on printed circuit boards, and the shrouded design ensures proper alignment and protection during mating. It is compatible with the 5264 SPOX crimp housing series, designed for through-hole termination applications.

Operating temperature ranges from -40°C to 105°C, making it suitable for a wide range of environments including industrial, commercial, and manufacturing settings. This product is manufactured in China and supports applications requiring compact and durable PCB header solutions.

Rated for 3 amps current capacity, ensuring stable electrical performance. Constructed with nylon housing material for enhanced thermal stability. Features brass contacts with tin plating for conductivity and corrosion resistance.

Designed as a single row, right angle orientation for compact PCB layouts. Supports through hole mounting with solder termination type for secure attachment. Operates reliably between -40°C to 105°C temperature range. Tail pin length of 3.5 mm facilitates effective PCB insertion and soldering.

Compatible with 5264 SPOX wire-to-board crimp housing for through-hole termination. Ideal for automation systems requiring compact and durable wire connections. Manufactured in China with a voltage rating of 250V. Explore additional PCB Header components and connectors on EnvMart for comprehensive electronic assembly solutions.
