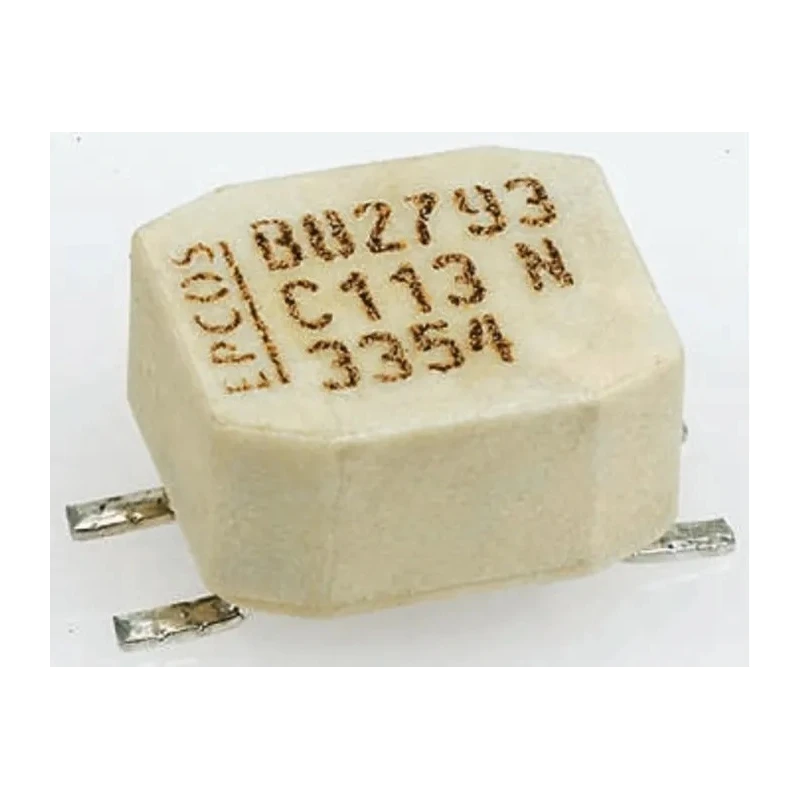

TDK Unshielded Surface Mount Common Mode Choke with Ferrite Core, 1 mH Inductance, -30 to 50 % Tolerance B82793C0105N265
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 4.8mm |
| Length | 9mm |
| Model | B82793C0105N265 |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | B82793 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1mH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 700mA |
| Pin Count | 2 |
| Maximum DC Resistance | 140mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact surface mount design ideal for PCB integration.
- Maximum DC current rating of 700 mA for reliable performance.
- Wirewound construction with ferrite core ensures low electromagnetic interference.
- Operating temperature range from -40°C to 125°C for industrial applications.
- Packaged in tape & reel format for automated assembly.
- Flame retardant case complies with UL 94 V-0 standard.
- Offers excellent suppression of asymmetric interference with bifilar winding.
- Lead-free solder termination for environmental compliance.
Product Description
TDK B82793C0105N265 is an unshielded surface mount common mode choke featuring a ferrite core and wirewound inductor construction, providing an inductance of 1 mH with an inductance tolerance ranging from -30 to 50 percent. This choke is designed for suppression of electromagnetic interference, especially asymmetric interference, in sensitive electronic circuits.
It can handle a maximum DC current of 700 mA and operates reliably between temperatures of -40°C and 125°C, making it suitable for industrial electronics applications including power supplies, communications equipment, and automotive systems compliant with AEC-Q200 standards.
The component is housed in a compact flame retardant case with dimensions of 9 mm length, 4.8 mm height, and 6 mm depth. It uses lead-free solder terminations and is supplied in tape and reel packaging optimized for surface mount assembly processes.
Its bifilar winding core construction helps suppress asymmetric interference, improving EMC performance and reducing high-frequency noise issues within electronic devices. Compact surface mount design ideal for PCB integration.
Maximum DC current rating of 700 mA for reliable performance. Wirewound construction with ferrite core ensures low electromagnetic interference. Operating temperature range from -40°C to 125°C for industrial applications.
Packaged in tape & reel format for automated assembly. Flame retardant case complies with UL 94 V-0 standard. Offers excellent suppression of asymmetric interference with bifilar winding. Dimensions: 9 mm length, 4.8 mm height, and 6 mm depth.
Lead-free solder termination for environmental compliance.
This product is ideal for applications in industrial, automotive, communication, and electronic manufacturing sectors requiring high performance and efficient noise suppression components.
Explore more surface mount inductors and electronic components at EnvMart for your design and manufacturing needs.
Explore more products in our Common Products category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode choke is 1 mH, with a tolerance ranging from -30% to 50%.
This model has a maximum DC current rating of 700 mA, ensuring reliable performance in various applications.
It operates reliably within a temperature range of -40°C to 125°C, making it suitable for industrial applications.
The dimensions of this choke are 9 mm in length, 4.8 mm in height, and 6 mm in depth.
It features a wirewound construction with a ferrite core, which helps in suppressing electromagnetic interference.
The choke is packaged in tape and reel format, which is optimized for automated assembly processes.
This model complies with RoHS standards and is suitable for automotive applications under AEC-Q200 standards.
The termination style of this choke is solder, and it utilizes lead-free solder for environmental compliance.
It offers excellent suppression of asymmetric interference, improving EMC performance in sensitive electronic circuits.
The maximum DC resistance is 140 mΩ, which contributes to its effective performance.
It is suitable for applications in industrial electronics, power supplies, communications equipment, and automotive systems.
The country of origin for this choke is India.
