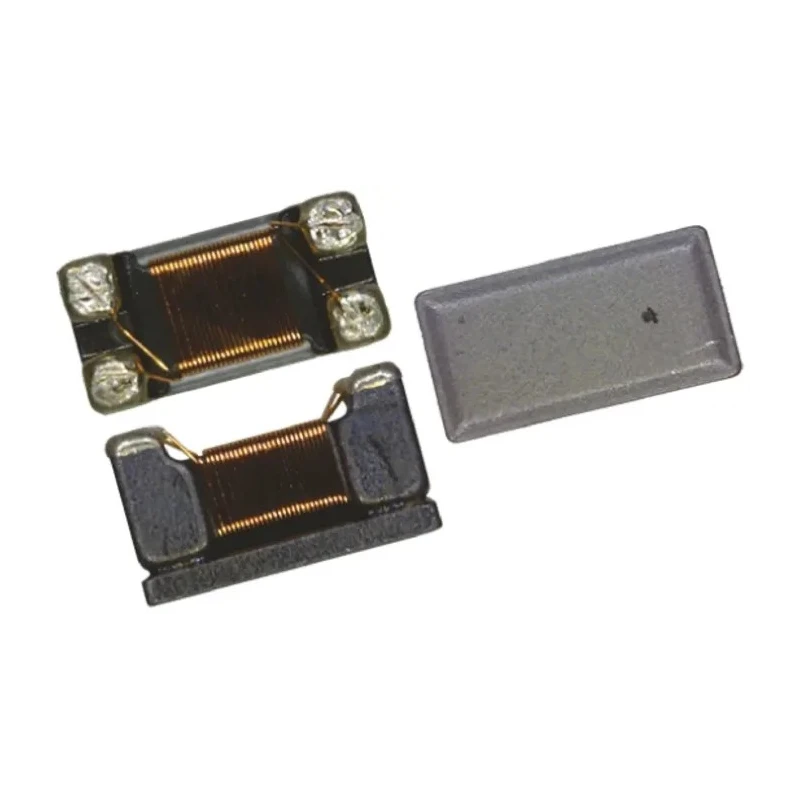

Murata 1206 Surface Mount Common Mode Choke DLW31S ±25 % Inductance Tolerance 370 mA Idc DLW31S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.9mm |
| Length | 3.2mm |
| Model | DLW31S |
| Depth | 1.6mm |
| Packaging | Embossed Tape |
| Series | DLW31S |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, because DLP31S does not provide distortion to high speed signal transmission due to its high coupling (coupling coefficient: 0 |
| Standards/Approvals | RoHS |
| Package/Case | 1206 |
| Maximum DC Current | 370mA |
| Pin Count | 4 |
| Maximum DC Resistance | 300mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Tin plating |
| Inductor Construction | Wirewound |
| Small size, low profile, SMD. 3.2x1.6x1.15mm (Tolerance | +-0.15mm) |
| Murata Wire-wound SMD InductorBrand | Murata |
Key Features

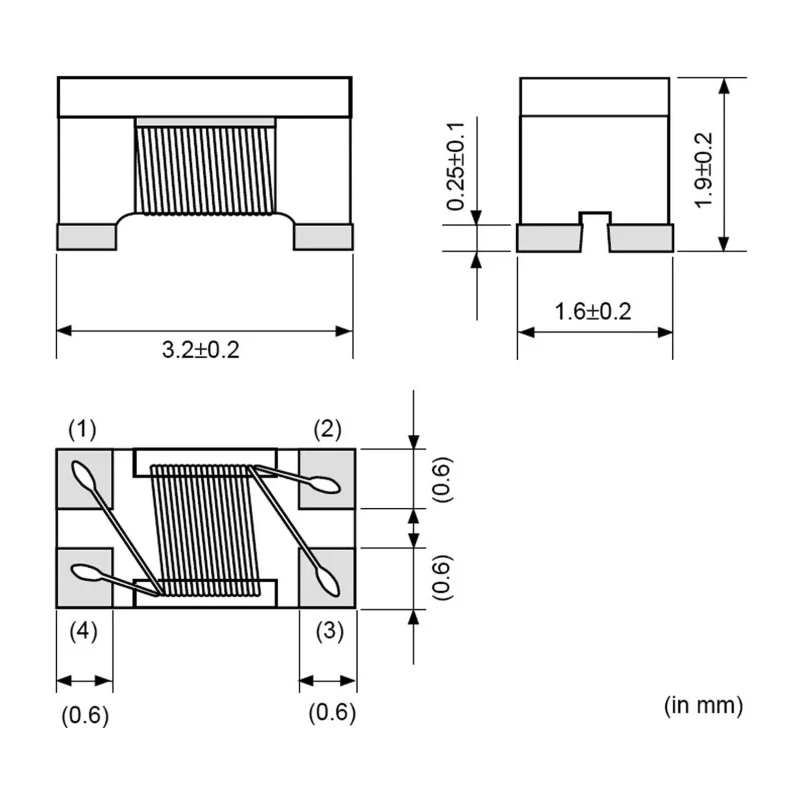

- The compact 1206 package measures 3.2 x 1.6 x 1.9 mm with a low profile design.
- Features wirewound inductor construction with tin plating termination for reliable soldering.
- Maximum DC resistance is 300 mΩ ensuring low power loss.
- Operating temperature ranges from -40°C to 85°C, suitable for various environments.
- RoHS compliant with embossed tape packaging for automated assembly processes.
- High common mode impedance suppresses high frequency noise in USB and LVDS differential signal lines.
- Coupling coefficient of 0.98 min prevents distortion of high speed signals.
- Designed for use in PCs, digital cameras, and other digital AV equipment USB lines.
Product Description
Murata DLW31S Surface Mount Common Mode Choke is a high-performance, small-sized SMD component designed to suppress electromagnetic interference in differential signal lines. It features a 1206 footprint with dimensions of 3.2 x 1.6 x 1.9 mm and tight inductance tolerance of ±25 %, making it ideal for precise filtering applications.
This choke supports a maximum DC current of 370 mA with a maximum DC resistance of 300 mΩ, guaranteeing efficient performance with minimal power losses. The wirewound construction and tin plating termination ensure reliability and solderability for automated PCB assembly.
The DLW31S series excels in high-frequency noise suppression, notably in USB and LVDS lines, due to its high common mode impedance (approximately 550 ohm at 100 MHz typical) and high coupling coefficient (0.98 minimum), which prevents signal distortion in high-speed data transmission.
Operating in a temperature range from -40°C to 85°C and RoHS-compliant, this component suits industrial, laboratory, consumer electronics, and communications applications. Its compact size supports dense PCB layouts in digital AV equipment, PCs, and peripheral devices.
Compact 1206 SMD package for space-saving PCB designs. Wirewound construction for enhanced noise suppression. High common mode impedance reduces EMI effectively. Suitable for USB and LVDS differential signal line applications.
Wide operating temperature range supports various environments. RoHS compliant for environmental safety. Reliable solder termination with tin plating. Explore more high-quality electronic components like inductors and EMI suppressors in the Electronics & Electricals category on EnvMart for your design and manufacturing needs.
Explore more products in our Common Products category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current rating for this model is 370 mA.
It operates within a temperature range of -40°C to 85°C.
The dimensions of the 1206 package are 3.2 mm in length, 1.6 mm in depth, and 1.9 mm in height.
The inductance tolerance for the DLW31S is ±25%.
This model features high common mode impedance, approximately 550 ohms at 100 MHz, which effectively suppresses high-frequency noise in USB and LVDS differential signal lines.
It has a wirewound inductor construction, which enhances its noise suppression capabilities.
The maximum DC resistance is 300 mΩ, ensuring low power loss during operation.
It uses tin plating termination for reliable soldering.
It is designed for use in PCs, digital cameras, and other digital AV equipment, particularly in USB lines.
It is packaged in embossed tape, suitable for automated assembly processes.
Yes, this component is RoHS compliant, ensuring it meets environmental safety standards.
The coupling coefficient is a minimum of 0.98, which helps prevent distortion of high-speed signals.
