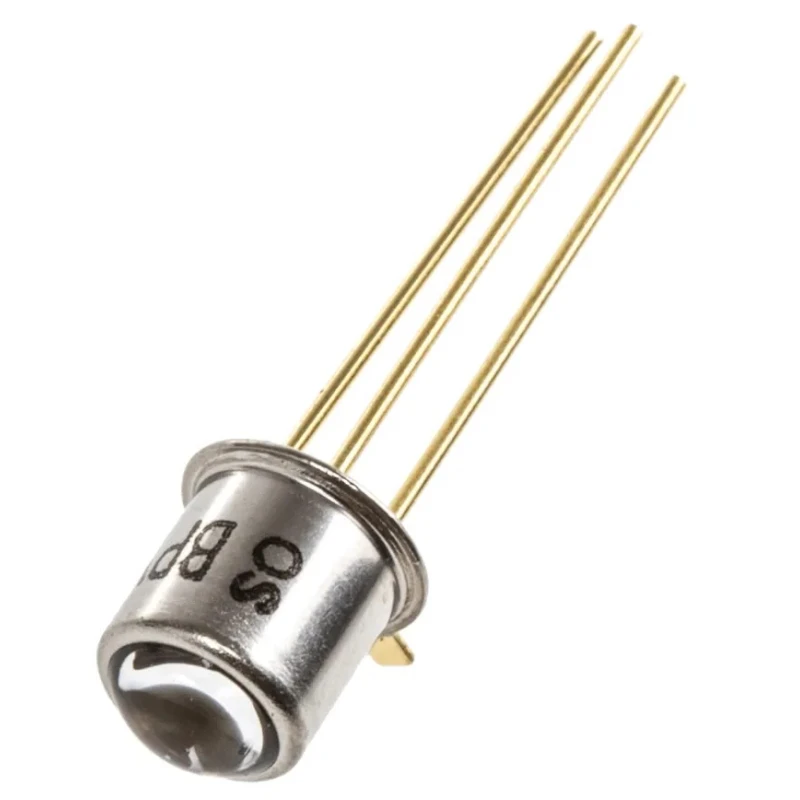

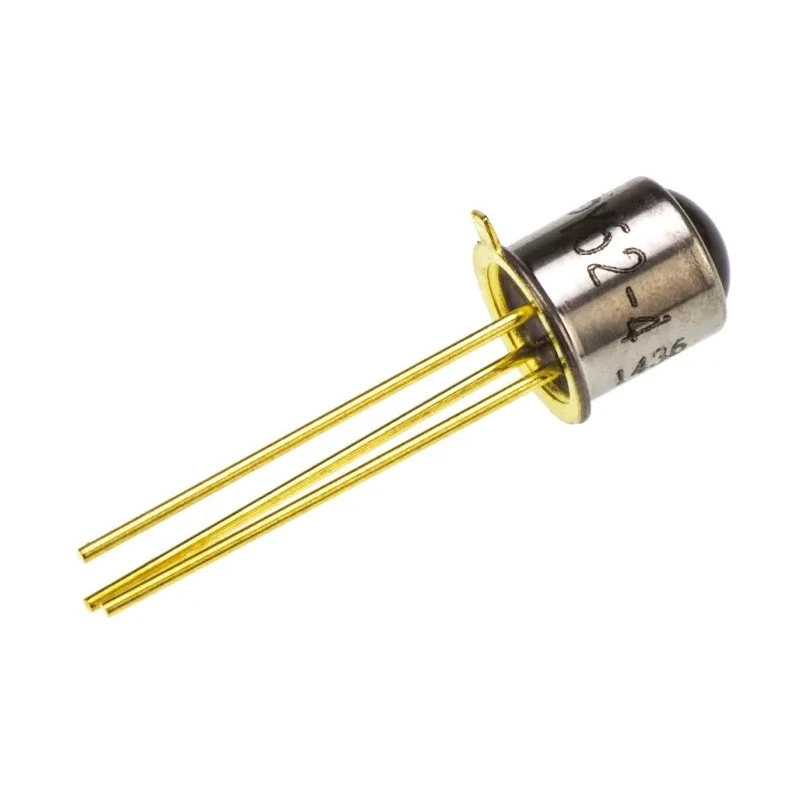

ams OSRAM Infrared Visible Light Phototransistor Through Hole 3-Pin TO-18 Package BPY 62-3/4
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4.8mm |
| Brand | ams OSRAM |
| Height | 6.2mm |
| Length | 5.6mm |
| Model | BPY 62-3/4 |
| Width | 5.6mm |
| Mount Type | Through Hole |
| Series | BPY 62 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-18 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Typical Fall Time | 12μs |
| Peak Wavelength | 830nm |
| Spectrums Detected | Infrared, Visible Light |
| Angle of Half Sensitivity | 16 ° |
| Collector Current | 100mA |
| Maximum Light Current | 5800μA |
| Maximum Dark Current | 50nA |
| Collector Emitter Voltage | 35V |
| Emitter Collector Voltage | 7V |
Key Features
- Detects both infrared and visible light spectrums accurately.
- Features a 16-degree half sensitivity angle for focused light detection.
- Maximum collector current rating of 100mA supports robust performance.
- Operating temperature range from -40°C to 125°C enables use in harsh environments.
- Standard TO-18 metal can package ensures durability and easy mounting.
- Peak wavelength sensitivity at 830nm suitable for infrared applications.
- Low maximum dark current of 50nA reduces noise in circuits.
- Typical rise and fall times of 12μs ensure fast response.
Product Description
The ams OSRAM BPY 62-3/4 is a high-quality phototransistor designed to detect infrared and visible light efficiently, delivered in a sturdy TO-18 through-hole 3-pin metal can package. This NPN phototransistor is ideal for applications requiring reliable and precise light detection, especially in challenging environmental conditions thanks to its wide operating temperature range of -40°C to 125°C.
Its compact dimensions - 6.2mm height, 5.6mm length, 5.6mm width, and 4.8mm diameter - make it suitable for integration into diverse electronic circuits. The phototransistor operates with a peak wavelength sensitivity at 830nm, suitable for many infrared applications including remote controls, optical sensors, and automation systems.
With a collector current rating of up to 100mA and a low dark current of 50nA, the BPY 62-3/4 ensures clear signal output with minimal noise. Its typical rise and fall times of 12 microseconds enable fast switching and accurate light signal capture.
The 16-degree angle of half sensitivity provides targeted detection capability, enhancing performance in focused light sensing scenarios. The device complies with RoHS standards, supporting environmentally responsible manufacturing and application.
Applications for the BPY 62-3/4 phototransistor include industrial automation, medical instrumentation, consumer electronics, and other environments requiring robust light detection components with superior reliability.
Detects infrared and visible light spectrums. Operating temperature range from -40°C to 125°C. Maximum collector current of 100mA. Standard TO-18 through-hole metal can package. Typical rise and fall time of 12μs for fast response.
Peak wavelength at 830nm for infrared sensitivity. Low dark current of 50nA enhances signal clarity. Collector emitter voltage rating of 35V. RoHS compliant for safe electronic design. Explore more Phototransistor products and related electronic components at EnvMart for optimal solutions across various industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector current rating for this model is 100mA, which supports robust performance in various applications.
It operates effectively within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
The peak wavelength sensitivity is at 830nm, which is suitable for infrared applications.
It comes in a standard TO-18 metal can package, which allows for easy mounting and integration into circuits.
The angle of half sensitivity is 16 degrees, providing targeted detection capability for focused light sensing.
The typical rise and fall times are 12 microseconds, ensuring fast response in light signal detection.
The maximum dark current is 50nA, which helps to reduce noise in circuits and enhance signal clarity.
This model features 3 pins, making it compatible with various electronic circuit designs.
The dimensions are 6.2mm in height, 5.6mm in length, and 5.6mm in width, with a diameter of 4.8mm.
Yes, it complies with RoHS standards, supporting environmentally responsible manufacturing and application.
It can detect both infrared and visible light spectrums accurately, making it versatile for various applications.
This phototransistor is suitable for applications in industrial automation, medical instrumentation, and consumer electronics, among others.
