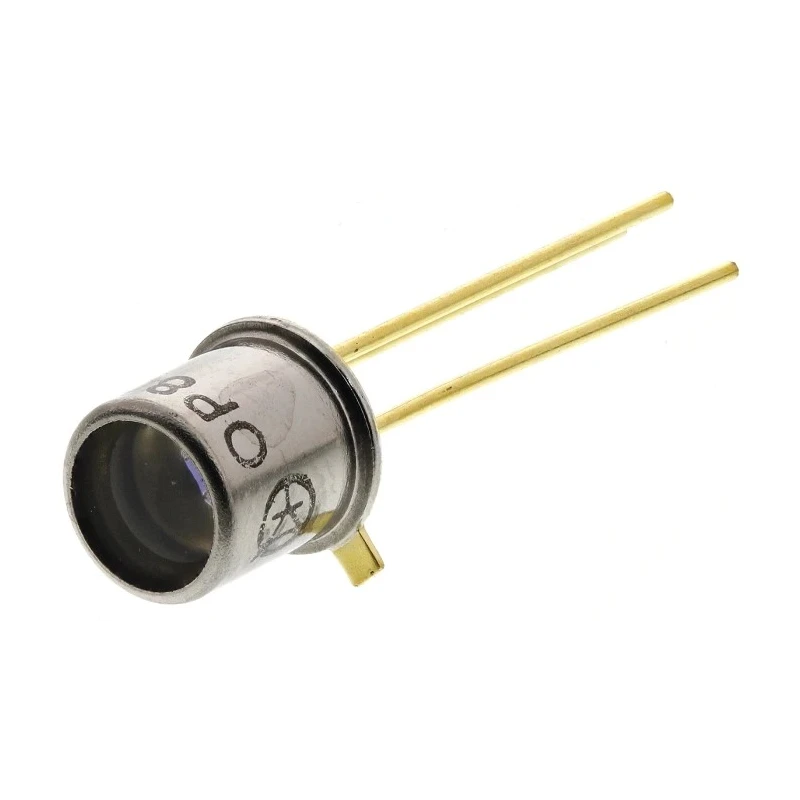

Optek Infrared Phototransistor, Through Hole 3-Pin TO-18 Package OP802WSL

Optek OP802WSL infrared phototransistor is a hermetically sealed NPN silicon device designed for durable performance in harsh environments. Packaged in a TO-18 metal can, it supports through-hole mounting and provides high power dissipation capabilities. Suitable for sensitive detection of infrared light, it is ideal for use in applications demanding reliability and precision.

This phototransistor operates efficiently over a broad temperature range from -65°C up to 125°C, making it highly versatile for industrial, laboratory, and automotive testing environments where temperature extremes occur. The device detects infrared spectrums with quick rise and fall times of 7 microseconds, ensuring rapid signal response.

Electrical characteristics include a maximum light current of 3000μA and a dark current of 100nA, with a collector current limit of 50mA and a collector emitter voltage threshold of 30V. The compact TO-18 package measures approximately 5.84mm in length and width with a 0.23mm diameter, facilitating easy integration onto circuit boards.

Applications of this phototransistor span industrial equipment, measurement instruments, optoelectronic devices, automation systems, and communications technology that require precise infrared light detection. The device is manufactured in Mexico following the OP800WSL series standards and does not carry automotive certification.

The device is hermetically sealed for reliable operation. Standard TO-18 metal can package enables high power dissipation. Through-hole mounting facilitates stable circuit integration. Wide operating temperature range from -65°C to +125°C supports harsh environments.

Fast response times of 7μs rise and fall ensure efficient signal detection. Maximum light current of 3000μA and dark current of 100nA for sensitive detection. Collector current rating of 50mA and voltage limits ensure operational safety.

Compact dimensions allow for easy PCB placement in electronic assemblies. Manufactured in Mexico adhering to OP800WSL series quality standards.

For users needing high reliability infrared Phototransistors for applications in electronics, instrumentation, and industrial systems, the Optek OP802WSL offers an excellent solution. Explore additional Optek electronic components and optoelectronic products at EnvMart to complement your projects and engineering needs.
