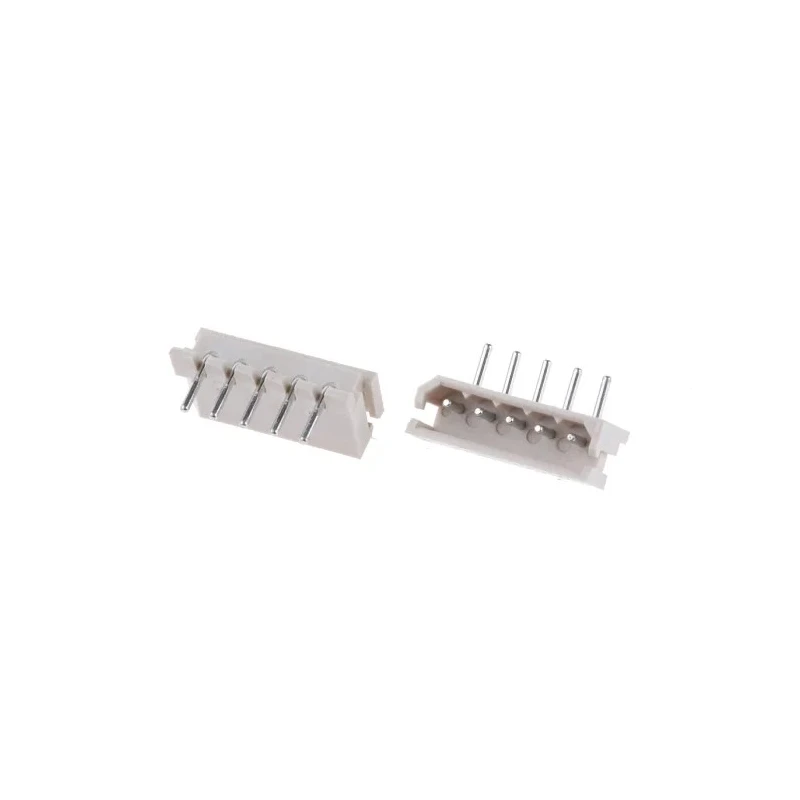

Molex SPOX Series Right Angle Through Hole PCB Header 5 Contacts 2.5 mm Pitch 1 Row Shrouded 22-05-7055

Free Delivery in India | Lowest Global Shipping Charges

Molex SPOX Series Right Angle Through Hole PCB Header 5 Contacts 2.5 mm Pitch 1 Row Shrouded 22-05-7055

Name: Molex SPOX Series Right Angle Through Hole PCB Header 5 Contacts 2.5 mm Pitch 1 Row Shrouded 22-05-7055
Brand: Molex
SKU: 212101
Price: 0.32 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	SPOX
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.5mm

Key Features

Features a shrouded design to prevent incorrect mating.
Constructed with a nylon housing and brass contacts plated with tin for durability.
Operates at a current rating of 3 amps and voltage rating of 250 V.
Single row configuration with 5 male contacts and a 3.5 mm tail pin length.
Designed for through-hole mounting with solder termination.
Suitable for use in automotive, industrial, telecommunications, data communications, and consumer electronics.
Temperature range from -40°C to 105°C for broad application environments.
Includes friction lock mechanism ensuring secure mating connection.

Product Description

Molex 22-05-7055 SPOX Series Right Angle Through Hole PCB Header is a 5 contact, 2.5 mm pitch, 1 row shrouded connector designed for wire-to-board applications. This PCB header features a low-profile shrouded housing made from nylon and brass male contacts plated with tin, providing excellent mechanical and electrical performance. It offers a secure connection with polarization to prevent mismating and a friction lock mechanism for reliability.

The header is rated to operate at 3A current and 250V voltage, suitable for multiple industrial sectors including automotive, medical, networking, telecommunications, and consumer electronics applications. It supports a temperature range from -40°C up to 105°C, ensuring durability in harsh environments.

The product is intended for through-hole solder mounting on PCBs, with a tail pin length of 3.5 mm and a single row of 5 male contacts spaced at 2.5 mm pitch. Its design incorporates features such as swaged tails for secure PCB retention and is compatible with SPOX series crimp housings for versatile use.

This connector facilitates increased production efficiency and reliability in electronic assemblies and is manufactured in China adhering to quality standards. Features a shrouded design to prevent incorrect mating. Constructed with nylon housing and brass contacts plated with tin.

Rated for 3 amps current and 250 volts operating voltage. Comprises 5 male contacts in a single row with 2.5 mm pitch. Through hole mounting with solder termination ensures firm PCB attachment. Suitable for automotive, industrial, telecommunications, consumer electronics, and data communication uses.

Operates within a temperature range of -40°C to 105°C. Includes friction lock and polarization features for secure connections. Low profile design saves PCB space and improves assembly compactness. Manufactured in China maintaining quality manufacturing standards.

Explore more high-quality PCB Headers and connectors on EnvMart for your electronic component needs.
