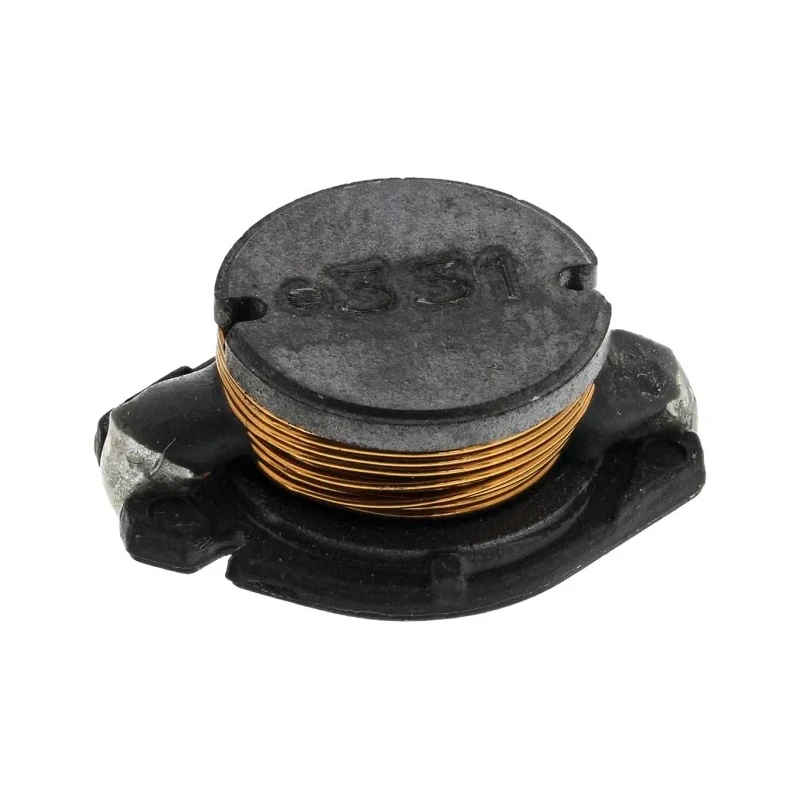

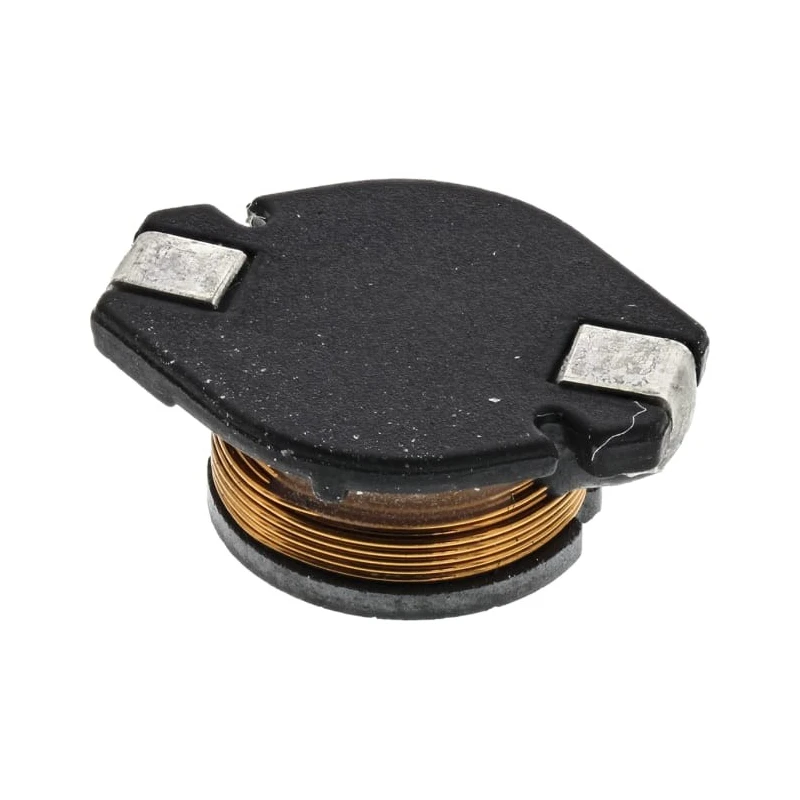

Wurth Elektronik Unshielded Wirewound Surface Mount Inductor with Ferrite Core 330 μH ±10% 700 mA Idc 74456233
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 7.6mm |
| Brand | Wurth Elektronik |
| Height | 5mm |
| Length | 12.7mm |
| Model | 74456233 |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-PD4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 330μH |
| Standards/Approvals | JEDEC JS709B, RoHS, REACH |
| Maximum DC Current | 700mA |
| Maximum DC Resistance | 1.15Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 3.7MHz |
| Inductor Construction | Wirewound |
Key Features
- The inductor is constructed with a ferrite core for low loss and high efficiency.
- It features a wirewound design with a surface mount termination style.
- Operating temperature ranges from -40°C to +125°C, suitable for various industrial environments.
- Maximum DC resistance is 1.15 ohms, ensuring low power loss.
- The component has a compact size with dimensions approximately 12.7 mm in length, 7.6 mm diameter, 10 mm depth, and 5 mm height.
- It complies with JEDEC JS709B, RoHS, and REACH standards for quality and environmental safety.
- Maximum self-resonant frequency is 3.7 MHz, supporting high-frequency applications.
- Packaging is supplied in tape and reel format for automated assembly processes.
Product Description
Wurth Elektronik model 74456233 is an unshielded wirewound surface mount inductor with a ferrite core, offering an inductance of 330 μH with ±10% tolerance and a maximum DC current rating of 700 mA. This compact inductor is designed for efficient power management applications, featuring low losses and a robust construction.
Its wirewound construction combined with a ferrite core ensures stable inductance and excellent performance at frequencies up to 3.7 MHz. The inductor operates reliably across a wide temperature range from -40°C to +125°C, making it suitable for use in harsh industrial and electronic environments.
The inductor’s physical dimensions are 12.7 mm in length, 7.6 mm diameter, 10 mm depth, and 5 mm height, optimized for surface mount technology (SMT) assembly. Its maximum DC resistance of 1.15 ohms contributes to minimized power dissipation during operation.
Compliant with JEDEC JS709B, RoHS, and REACH standards, the component guarantees high quality and environmental safety. The product is packaged on tape and reel for efficient processing in automated manufacturing setups.
This WE-PD4 series inductor is ideal for high-efficiency switch-mode power supplies (SMPSUs), EMI interference suppression, and other power electronic applications requiring reliable inductance performance.
The inductor is constructed with a ferrite core for low loss and high efficiency. It features a wirewound design with a surface mount termination style. Operating temperature ranges from -40°C to +125°C, suitable for various industrial environments.
Maximum DC resistance is 1.15 ohms, ensuring low power loss. The component has a compact size with dimensions approximately 12.7 mm in length, 7.6 mm diameter, 10 mm depth, and 5 mm height. It complies with JEDEC JS709B, RoHS, and REACH standards for quality and environmental safety.
Maximum self-resonant frequency is 3.7 MHz, supporting high-frequency applications. Packaging is supplied in tape and reel format for automated assembly processes. Manufactured in China, the inductor belongs to the WE-PD4 series known for robust performance in power electronics.
Explore the full range of Wurth Elektronik Surface Mount Inductors on EnvMart for your power electronics and industrial component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This inductor has an inductance value of 330 μH with a tolerance of ±10%.
The maximum DC current rating for this unit is 700 mA.
The inductor measures approximately 12.7 mm in length, 7.6 mm in diameter, 10 mm in depth, and 5 mm in height.
The maximum DC resistance is 1.15 ohms, which helps ensure low power loss during operation.
It operates reliably within a temperature range of -40°C to +125°C, making it suitable for various industrial environments.
The maximum self-resonant frequency is 3.7 MHz, supporting high-frequency applications.
This model features a ferrite core, which contributes to its low loss and high efficiency.
It is supplied in tape and reel format, which is suitable for automated assembly processes.
It complies with JEDEC JS709B, RoHS, and REACH standards for quality and environmental safety.
The termination style of this inductor is surface mount, designed for SMT assembly.
This inductor is part of the WE-PD4 series, known for its robust performance in power electronics.
It is ideal for high-efficiency switch-mode power supplies (SMPSUs) and EMI interference suppression.
