Vishay Thyristor Module 1200 V 380 A Surge Current Screw Mount VS-P135

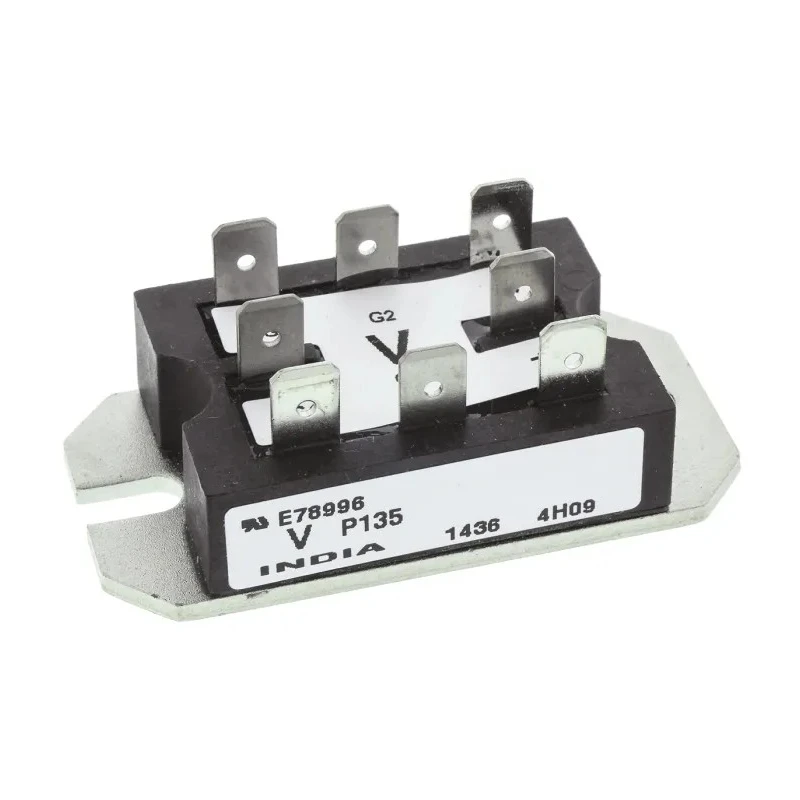

Vishay VS-P135 Thyristor Module is engineered for industrial and power electronic applications requiring robust performance at high voltages and currents. This 8-pin module supports a repetitive peak reverse voltage (VDRM) of 1200 V and a surge current rating of 380 A, making it ideal for controlled rectification and power switching tasks. Its rated average on-state current (Irms) is 25 A, with a maximum gate trigger current of 60 mA and a holding current of 130 mA, which ensures reliable triggering and stable latching of the device.

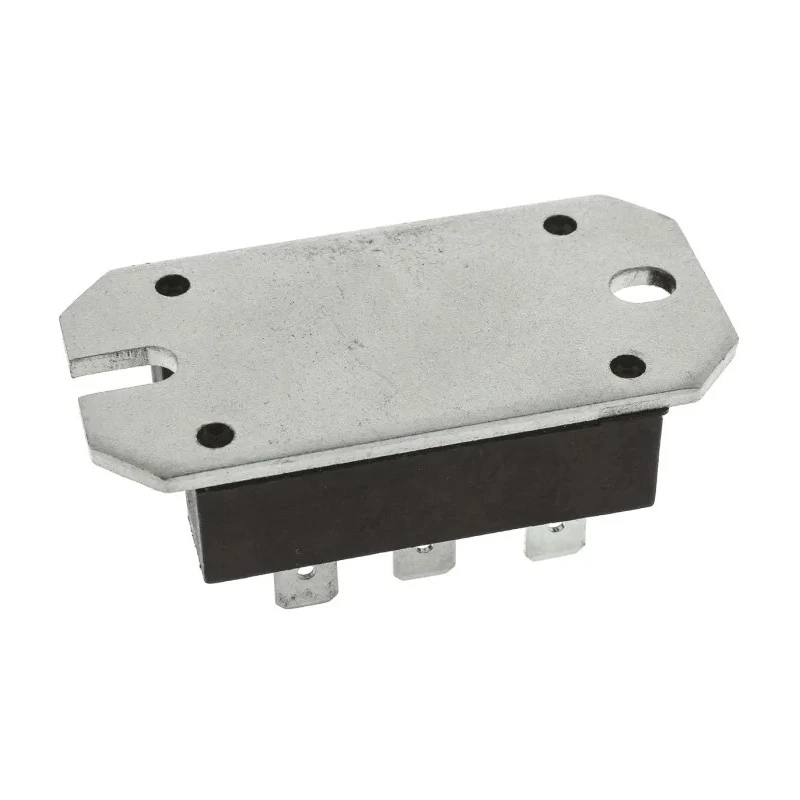

The module features a screw mount design ensuring sturdy installation and physical stability. Its compact size - 63.5 mm in length, 32.5 mm in width, and 15.5 mm in height - allows integration into space-constrained setups. The maximum operating temperature rating of 125°C enables high-temperature endurance for demanding environments.

The peak on-state voltage of 1.35 V contributes to energy efficiency by reducing conduction losses. This VS-P135 module belongs to the VS-P100 series, which comprises single-phase and three-phase fully controlled bridge rectifiers with isolated base plates. Connection options typically include faston tabs with solder tips or screw terminals for versatile use.

This Vishay thyristor module is commonly deployed in industrial manufacturing, power electronics, HVAC systems, and automation where durable and precise power control is essential. Its design supports rugged electrical performance with minimal maintenance requirements.

Key features include its high surge current capability, low on-state voltage, screw mounting for secure installation, and compatibility with various power rectification configurations. This product is new and manufactured to Vishay’s stringent quality standards, guaranteeing dependable operation in critical electronic systems.

Rated average on-state current of 25 A for reliable operation. Maximum gate trigger current is 60 mA ensuring sensitive gate control. Maximum holding current of 130 mA for stable thyristor latching. Compact dimensions with length 63.5 mm, width 32.5 mm, and height 15.5 mm.

Operates safely up to a maximum temperature of 125°C. Peak on-state voltage of 1.35 V minimizes power dissipation. Mount type is screw for secure mechanical fixing. Part of the VS-P100 series of fully controlled bridge rectifiers with isolated base plate.

Suitable for industrial semiconductor applications requiring high surge currents. Explore the Vishay range of Thyristor Modules and power semiconductors on EnvMart for quality components supporting your industrial and electronic system needs.
