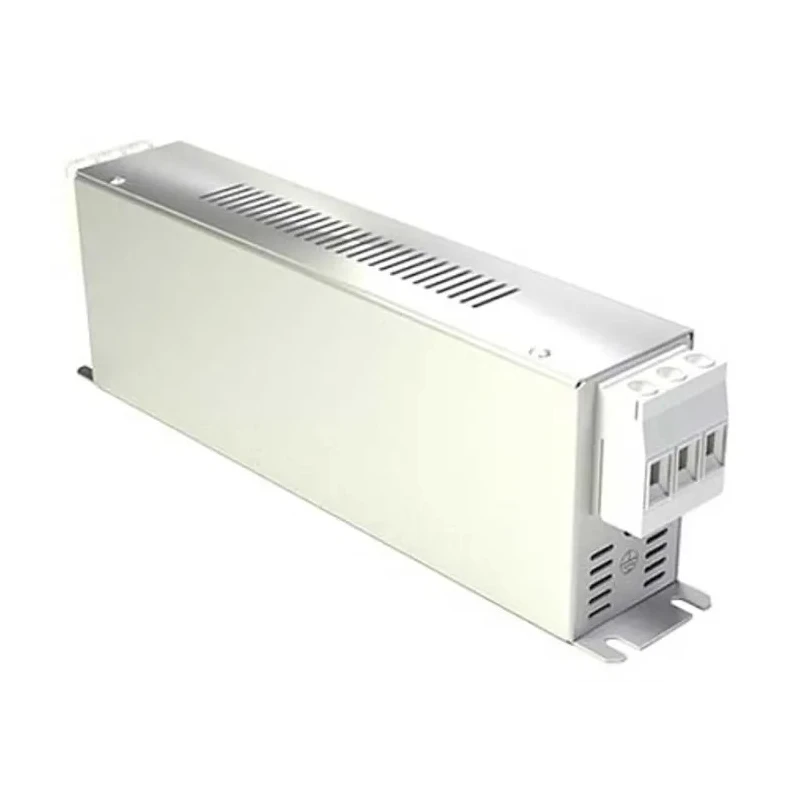

KEMET 3-Phase Chassis Mount EMC Filter 130A 530V AC 50Hz, 60Hz Terminal Block FLLD3

KEMET FLLD3 model is a 3-phase chassis mount EMC filter rated for a maximum current of 130A and maximum voltage of 530V AC, operating at 50Hz and 60Hz. It features terminal block termination for secure electrical connections and chassis mount configuration for robust mechanical stability.

This EMC filter delivers high insertion loss, effectively suppressing electromagnetic interference in industrial power lines and equipment. The operating temperature range from −25°C to 100°C allows for reliable performance in harsh environments.

Measuring 270mm in length, 150mm in height, and 90mm in depth, it is designed for compact installations and comes packaged in tape and reel format to facilitate automated handling and assembly.

Power loss is rated at 40W, which supports heavy-duty electromagnetic noise reduction while maintaining safety with low leakage current of 4.7mA. It meets several standards and approvals including UL, CQC, cUL, and ENEC ensuring compliance with international industrial safety and quality benchmarks.

Typical applications include switch mode power supplies, servo drives, robotics systems, battery chargers, inverters, converters, and process automation in industrial manufacturing lines.

This product is new, sourced from India, and represents a reliable EMC filtering solution for industrial electronic equipment. Provides efficient suppression of electromagnetic interference in 3-phase power lines. Chassis mount design with Terminal Block termination for easy installation.

Operates reliably between −25°C to 100°C ambient temperature. Compact dimensions measuring 270mm length, 150mm height, and 90mm depth. High power loss capacity of 40W ensures effective filtering under heavy loads. Complies with UL, CQC, cUL, and ENEC international safety and quality standards.

Low leakage current of 4.7mA minimizes power loss and enhances safety. Suitable for industrial applications such as servo drives, robotics, inverters, and process automation. Explore the full range of EMC filters and power line filters available to meet industrial noise suppression needs at EnvMart.
