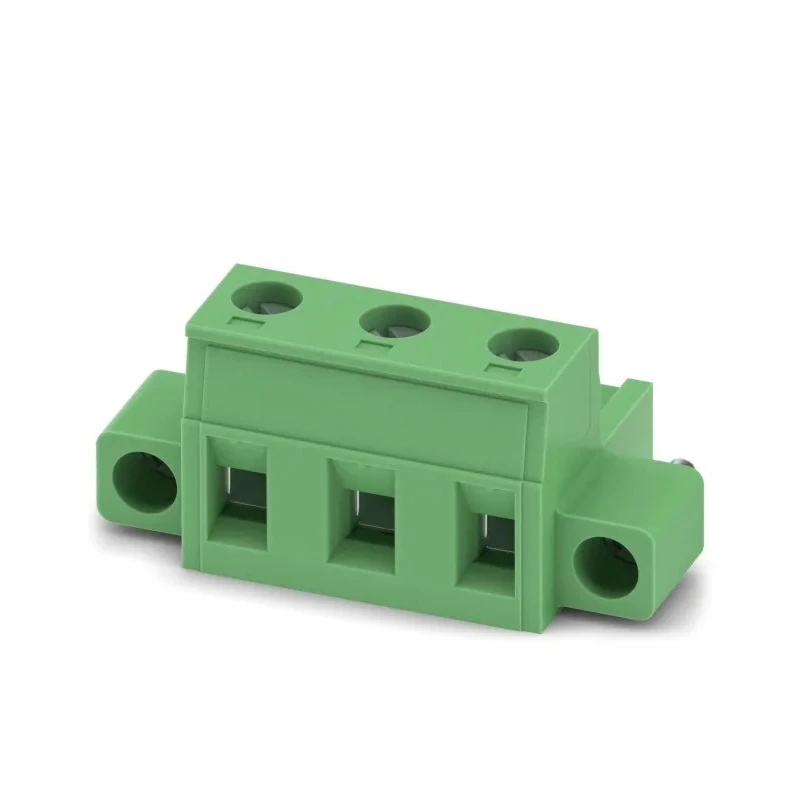

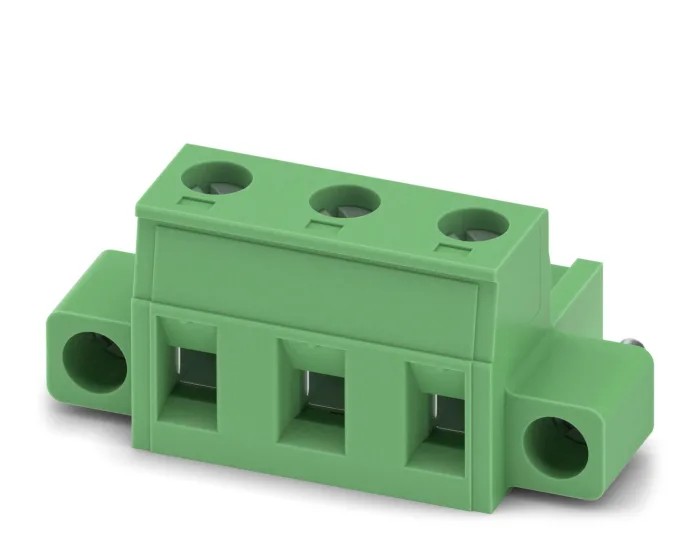

Phoenix Contact Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, Screw Connection, Polyamide, Female 1858772

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, Screw Connection, Polyamide, Female 1858772

Name: Phoenix Contact Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, Screw Connection, Polyamide, Female 1858772
Brand: PHOENIX CONTACT
SKU: 81701



Category Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	1kV
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	12A
Length	18.2mm
Model	1858772
Depth	15mm
Width	33.25mm
Housing Material	Polyamide
Series	GMSTB 2.5/3-STF-7.62
Number of Rows	1
Contact Surface	Tin
Pitch	7.62mm
Standards/Approvals	RoHS
Number of Contacts	3
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw
PCB connector, nominal current	12 A, rated voltage (III/2): 630 V, number of positions: 3, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, colour: green, contact surface: Tin
Rated voltage (III/2)	630 V

Key Features

Provides reliable connection for PCB mounting and industrial wiring applications.
Features a straight orientation for easy integration and assembly.
Includes screw connection with tension sleeve for secure wire fastening.
Accommodates wire sizes from 0.2 mm² to 2.5 mm² with female connector gender.
Green polyamide housing ensures chemical resistance and electrical insulation.
Supports a nominal voltage of 1 kV and current up to 12 A, suitable for power and signal distribution.
RoHS compliant for environmentally responsible manufacturing.

Product Description

The Phoenix Contact 1858772 is a robust pluggable terminal block designed for reliable connections in industrial and electronic applications. This terminal block accommodates three contacts with a 7.62 mm pitch, making it suitable for PCB mounting and modular wiring systems where high voltage and current capability are required.

Ideal for power and signal distribution, the terminal block features a polyamide housing with green coloration, providing superior chemical resistance and electrical insulation. Its female connector gender and straight orientation facilitate straightforward assembly and integration onto control panels and printed circuit boards.

The screw connection method with tension sleeve enhances wire retention and mechanical stability, ensuring user-friendly installation and secure connection. It supports wire sizes ranging from 0.2 mm² to 2.5 mm² (AWG 24 to AWG 12), catering to varied conductor types used in automation, control, and signal applications.

Rated for a maximum voltage of 1 kV and current carrying capacity of 12 A, this terminal block is suitable for demanding industrial circuits. Compact product dimensions of 18.2 mm length, 15 mm depth, and 33.25 mm width allow efficient space utilization and arrangement within cabinets or enclosures.

The Phoenix Contact GMSTB 2.5/3-STF-7.62 series complies with RoHS environmental standards, supporting responsible and sustainable manufacturing. Its tin-plated contact surface contributes to reliable electrical performance and corrosion resistance during prolonged usage.

Common use cases include industrial automation panels, process control assemblies, HVAC systems, and laboratory electronics - where modular terminal blocks are vital for safe, organized, and efficient wiring.

Explore other Phoenix Contact Terminal Blocks and electronics connectors within the Electronics Components category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This terminal block supports a maximum voltage of 1 kV and a current carrying capacity of 12 A, making it suitable for power and signal distribution in industrial applications.

It accommodates wire sizes ranging from 0.2 mm² to 2.5 mm² (AWG 24 to AWG 12), allowing for various conductor types used in automation and control applications.

The contacts in this terminal block are spaced at a pitch of 7.62 mm, which is suitable for PCB mounting and modular wiring systems.

The housing is made of green polyamide, providing chemical resistance and electrical insulation, while the contact surface is tin-plated for reliable electrical performance.

Wires are connected using a screw connection method with a tension sleeve, which enhances wire retention and mechanical stability during installation.

The dimensions of this model are 18.2 mm in length, 15 mm in depth, and 33.25 mm in width, allowing for efficient space utilization in cabinets or enclosures.

This terminal block features a straight orientation, facilitating straightforward assembly and integration onto control panels and printed circuit boards.

Yes, this terminal block complies with RoHS environmental standards, supporting responsible and sustainable manufacturing practices.

It has three contacts, making it suitable for applications requiring multiple connections in a compact form factor.

Common applications include industrial automation panels, process control assemblies, HVAC systems, and laboratory electronics, where modular terminal blocks are essential for organized wiring.

The country of origin for this terminal block is Germany, indicating its manufacturing location.

This terminal block is part of the GMSTB 2.5/3-STF-7.62 series, which is designed for high voltage and current applications in industrial settings.
