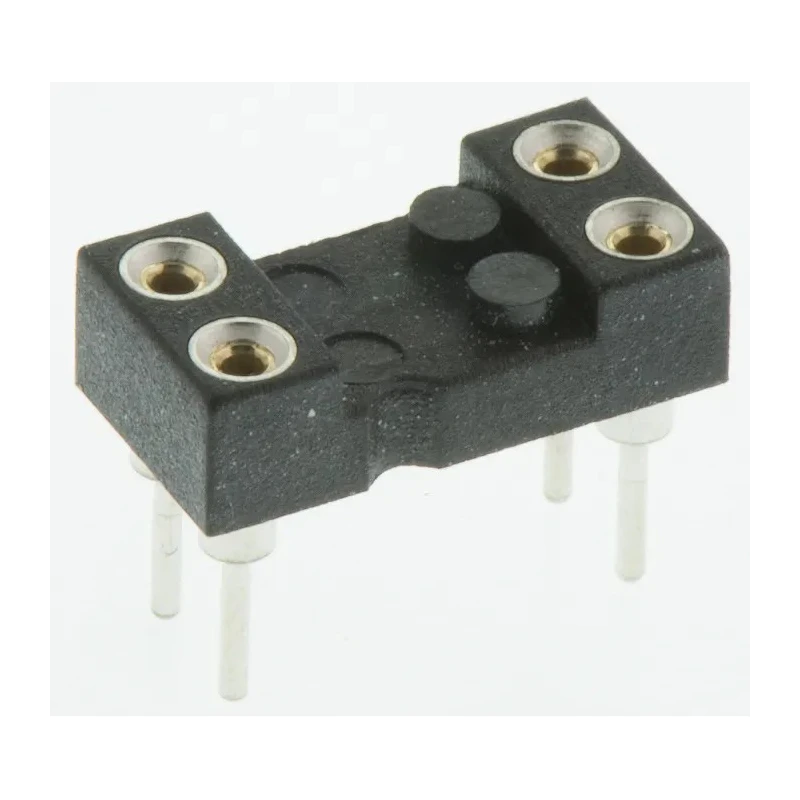

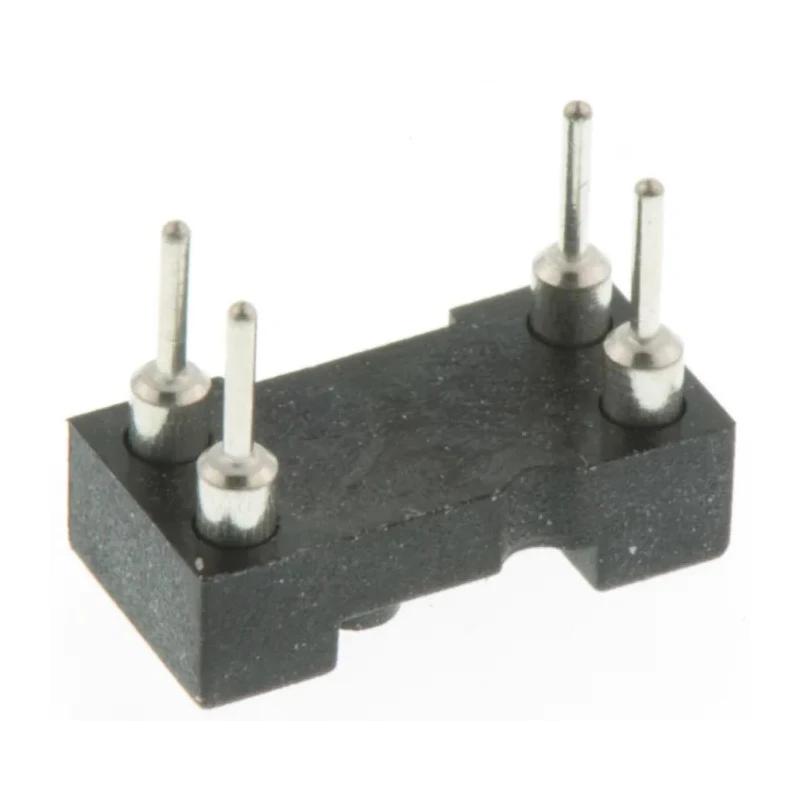

Preci-Dip 2.54 mm Pitch Vertical 4 Way Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-304-41-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 100, 150V ac |
| Brand | Preci-Dip |
| Orientation | Vertical |
| Current | 1A |
| Frame Type | Open Frame |
| Length | 5mm |
| Depth | 2.8mm |
| Width | 10.1mm |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Beryllium Copper Alloy, Brass |
| Series | 110 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Tin, Gold |
| Number of Contacts | 4 |
| Pin Type | Turned |
| Row Width | 7.62mm |
| Stock numbers | 702-0691 , 702-2704 , 702-2701 , 702-2713 , 702-2767, 702-2779 , 702-2773 , 702-2798 and 702-2808 are without a centre bar |
Key Features
- Features an open frame design for efficient ventilation.
- Constructed with beryllium copper alloy and brass contacts for durability.
- Contact plating combines tin and gold for corrosion resistance.
- Supports voltages up to 150V AC with a vertical orientation.
- Operates reliably from -55°C to 125°C temperature range.
- Solder termination ensures stable PCB connections.
- Manufactured from fibreglass reinforced polyethylene terephthalate housing.
- Designed for electronic component assemblies and PCB applications.
Product Description
Preci-Dip 110-87-304-41-001101 is a high-quality vertical 4 way DIL Socket featuring a 2.54 mm pitch, designed for through hole mounting with turned pin contacts. It supports a current rating of 1 ampere and AC voltages up to 150V, making it suitable for a range of electronic components and PCB socket applications.
The socket employs an open frame design for enhanced cooling and easy inspection. The contact material is a blend of beryllium copper alloy and brass, which provides excellent electrical conductivity and mechanical strength. Contacts are plated with tin and gold flash to ensure corrosion resistance and reliable signal integrity.
Its housing is made from fibreglass reinforced polyethylene terephthalate, delivering robust mechanical stability and durability in demanding environments. The solder termination type is ideal for secure mounting on printed circuit boards using standard soldering processes.
With dimensional measurements of 10.1 mm width, 5 mm length, and 2.8 mm depth, this socket is compact and inline with industry standards. It performs reliably within a temperature range from -55°C to 125°C, suitable for industrial, laboratory, and electronic manufacturing assembly use cases.
Open frame through hole vertical DIL socket offers easy access and stable mounting. Beryllium copper alloy and brass contacts provide longevity and good conductivity. Tin and gold plating on contacts ensures high corrosion resistance.
Compact footprint supports efficient PCB design layout. Wide operating temperature range allows use in harsh industrial environments. Suitable for use in electronic component testing and prototyping. Precision manufacturing standards from Switzerland guarantee quality and reliability.
Supports various electronics assembly and repair operations.
Preci-Dip sockets are widely applied in electronics manufacturing, testing laboratories, and repair facilities where reliable and precise socket connectivity is required. Their Swiss engineering heritage ensures durability and consistent performance. Browse more electronics components and DIL Sockets at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports voltages up to 150V AC.
The current rating is 1 ampere.
The dimensions are 10.1 mm in width, 5 mm in length, and 2.8 mm in depth.
It operates reliably within a temperature range from -55°C to 125°C.
It is constructed from fibreglass reinforced polyethylene terephthalate housing, with contacts made of beryllium copper alloy and brass.
The termination type is solder, which ensures stable PCB connections.
This model features 4 contacts.
The pitch is 2.54 mm.
It features an open frame design for efficient ventilation.
The country of origin for this socket is Switzerland.
It is designed for electronic component assemblies and PCB applications.
It uses turned pin contacts.
