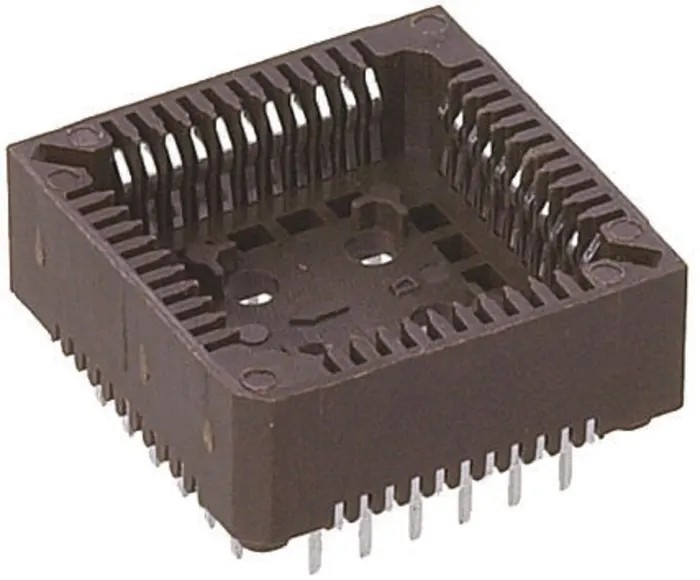

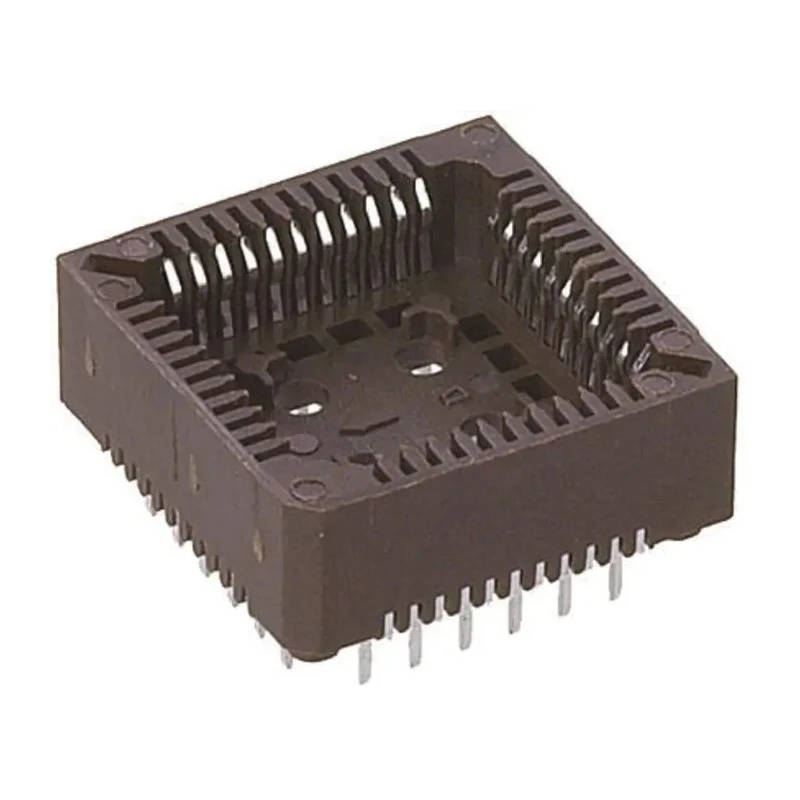

Preci-Dip 1.27 mm Pitch 28 Way DIP Through Hole PLCC IC Socket 540-88-028-24-008

Preci-Dip 540-88-028-24-008 28 Way DIP Through Hole PLCC IC Socket is engineered for industrial and electronic manufacturing applications requiring secure and reliable integrated circuit connections. Featuring a 1.27 mm pitch and 28 contacts arranged in 4 rows, it complies with JEDEC package standards MO-047 and MO-52, ensuring standard form factor compatibility.

This IC socket uses phosphor bronze contacts with tin plating for optimal electrical conductivity and corrosion resistance. Designed for through-hole mounting with solder termination, the socket guarantees a robust mechanical and electrical connection to the PCB.

The housing is constructed of fibreglass reinforced polyphenylene sulphide, a material chosen for its excellent mechanical strength, thermal stability, and electrical insulation properties. It is rated for operating voltages from 100 to 150 volts and can operate reliably in temperature extremes ranging from -55°C up to 125°C.

Each contact maintains a minimum contact pressure of 1.5 newtons to ensure stable mate with integrated circuits, and the socket features a mechanical life of at least 50 cycles, suitable for maintenance and replacement operations in industrial settings.

Additional features include compliance with UL 94V-0 flame retardant standards, enhancing safety in high-reliability environments such as manufacturing, laboratory electronics, communication equipment, and instrumentation.

Compact 1.27 mm pitch and 28 contacts in 4 rows. Phosphor bronze tin-plated contact material for durability and conductivity. Through-hole device mount type with solder termination. Fibreglass reinforced polyphenylene sulphide housing material.

Operating voltage 100-150V, temperature range -55°C to 125°C. Minimum contact pressure 1.5 N per contact. Mechanical life minimum 50 cycles. UL 94V-0 flame retardant compliant.

This socket is ideal for industrial electronics assembly, manufacturing test equipment, custom PCB designs, and other applications requiring reliable IC connectivity. EnvMart offers this Preci-Dip 540 Series IC Socket as a component that supports robust electronic device design and long-term reliability.
