ASSMANN WSW 2.54 mm Pitch Vertical 14 Way Through Hole Stamped Pin Open Frame DIL Socket 1A A 14-LC-TT

Free Delivery in India | Lowest Global Shipping Charges

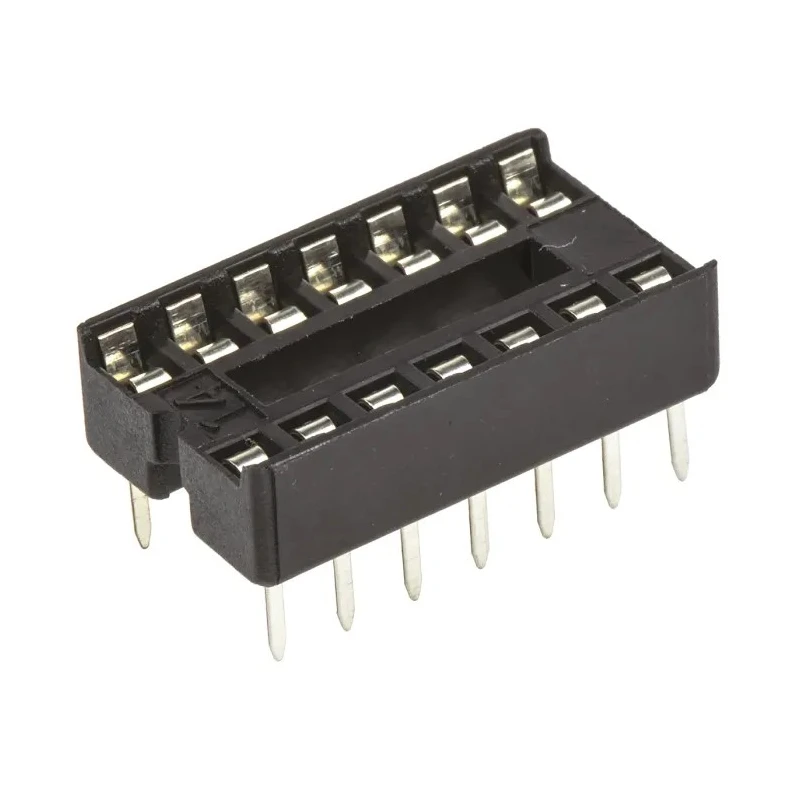

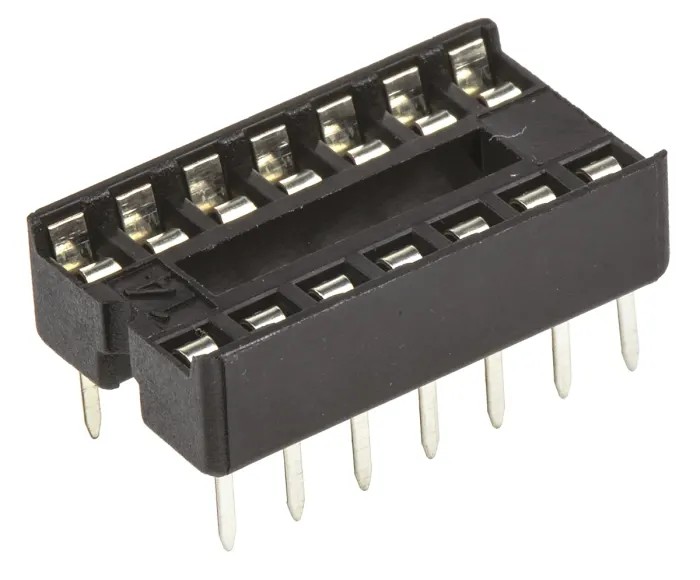

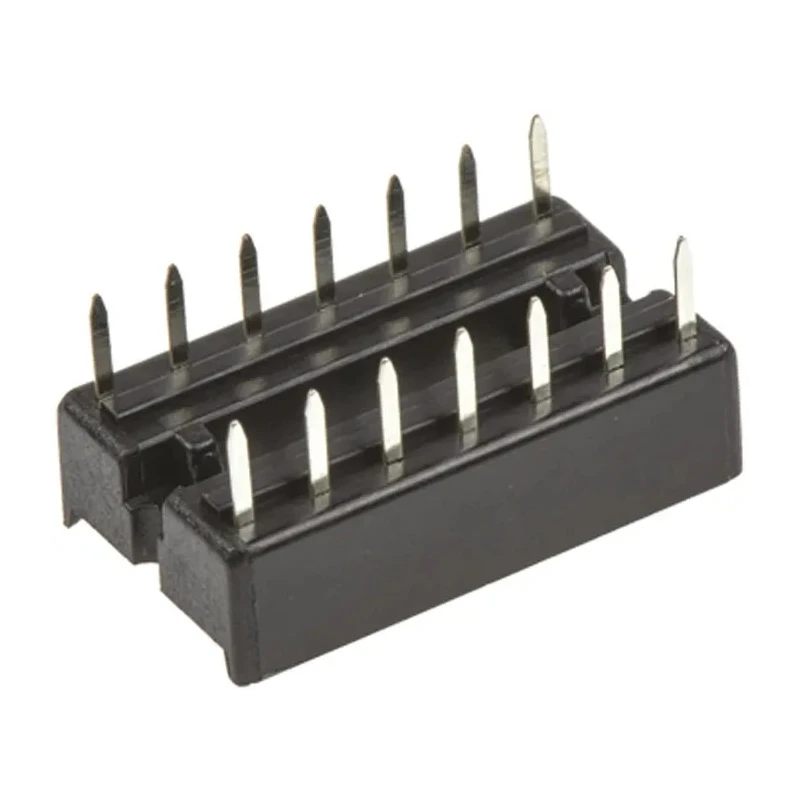

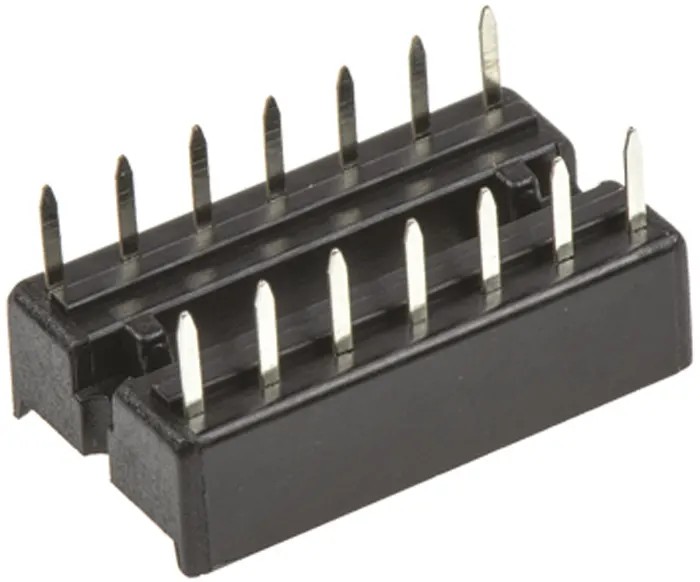

ASSMANN WSW 2.54 mm Pitch Vertical 14 Way Through Hole Stamped Pin Open Frame DIL Socket 1A A 14-LC-TT

Name: ASSMANN WSW 2.54 mm Pitch Vertical 14 Way Through Hole Stamped Pin Open Frame DIL Socket 1A A 14-LC-TT
Brand: ASSMANN WSW
SKU: 101223
Price: 0.26 USD
Availability: InStock



Category DIL Socket Brand ASSMANN WSW Condition New

Specifications

Country of Origin	Taiwan
Voltage	60V ac
Brand	ASSMANN WSW
Orientation	Vertical
Current	1A
Frame Type	Open Frame
Length	17.78mm
Model	A 14-LC-TT
Depth	5.1mm
Width	10.16mm
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	14
Pin Type	Stamped
Row Width	7.62mm

Key Features

This DIL socket features a 2.54 mm pitch with 14 contacts for precise connections.
The vertical open frame design ensures easy soldering and installation.
Contacts are stamped from phosphor bronze and plated with tin for excellent conductivity.
The housing is made from black UL94V-0 rated polybutylene terephthalate for durability and safety.
Rated for up to 60V ac voltage and a current of 1 ampere.
Operates reliably between -55°C and 85°C for diverse environmental conditions.
Solder termination type guarantees mechanical strength and secure electrical contact.
Manufactured in Taiwan, Province Of China ensuring high quality standards.

Product Description

ASSMANN WSW A 14-LC-TT is a 2.54 mm pitch vertical 14 way through hole stamped pin open frame DIL socket with a current rating of 1A, suitable for electronic component mounting on printed circuit boards (PCBs).

This product is designed for industrial and commercial PCB assembly applications where reliable and durable connections are essential.

The open frame design allows easy access for soldering and inspection, while the stamped phosphor bronze contacts with tin plating provide low contact resistance and long-term reliability.

The socket housing is manufactured from polybutylene terephthalate (PBT) rated UL94V-0, offering flame retardancy and robust mechanical properties. It operates within a wide temperature range of -55°C to 85°C, making it suitable for diverse operational environments including industrial and laboratory hardware assemblies.

The socket features 14 contacts spaced at a standard 2.54 mm pitch with a row width of 7.62 mm, fitting common DIP (Dual In-line Package) components. With a voltage rating of 60V ac and a current handling capacity of 1 ampere, this socket supports low power electronic applications.

Dimensions of 17.78 mm length, 10.16 mm width, and 5.1 mm depth are optimized for compact PCB layouts. This DIL socket is ideal for use in electronic testing, manufacturing, and prototyping environments. Open frame and vertical orientation facilitate easy insertion and removal of ICs.

Suitable for various industrial equipment and electronic assemblies requiring secure IC socketing. Manufactured in Taiwan, Province Of China, ensuring compliance with quality and material standards. Explore our comprehensive selection of electronic components and DIL Sockets at EnvMart for your industrial and laboratory needs.
