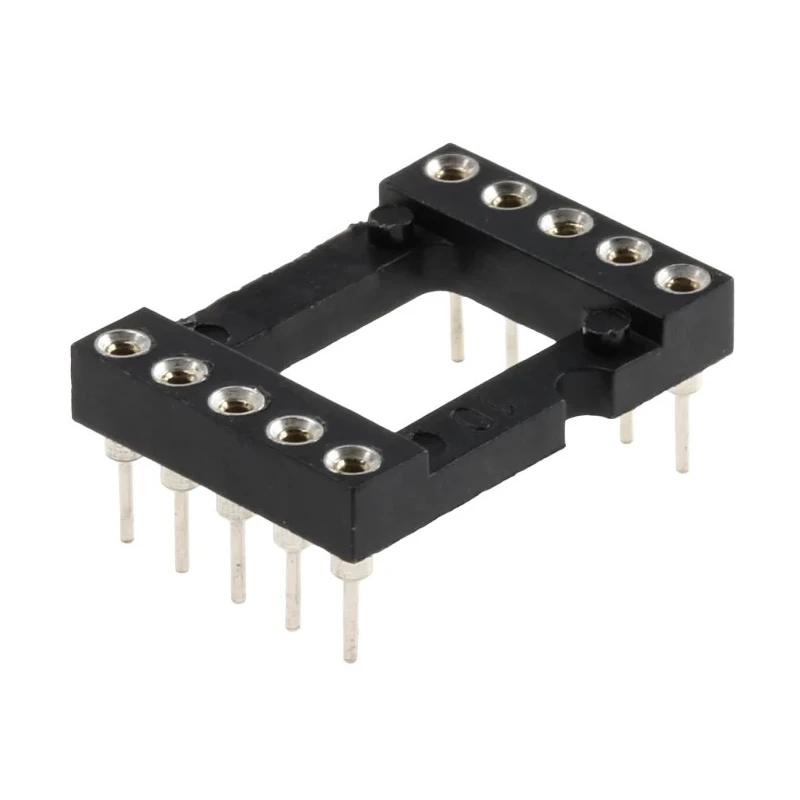

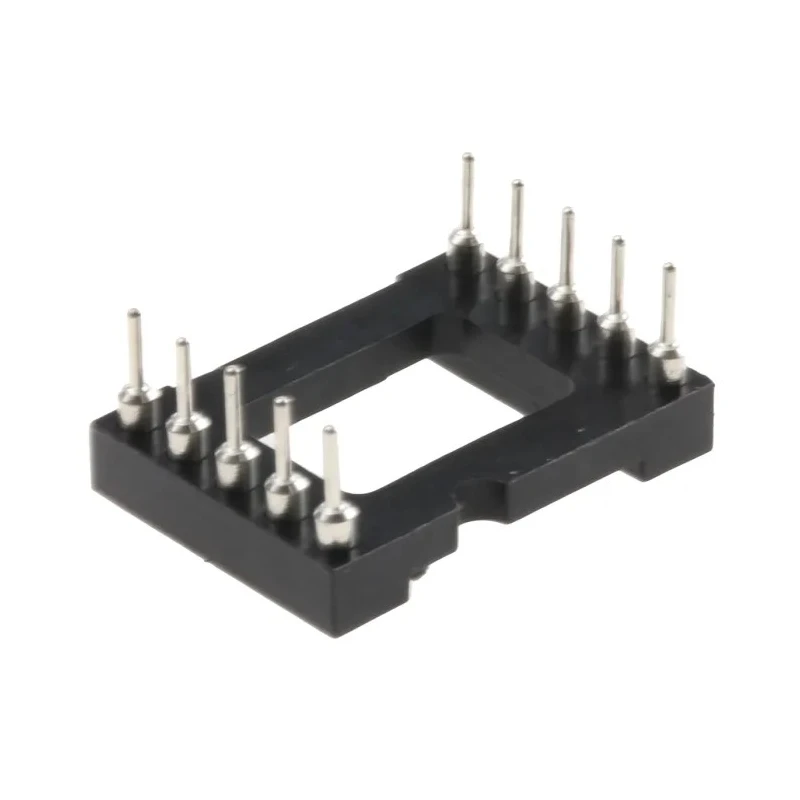

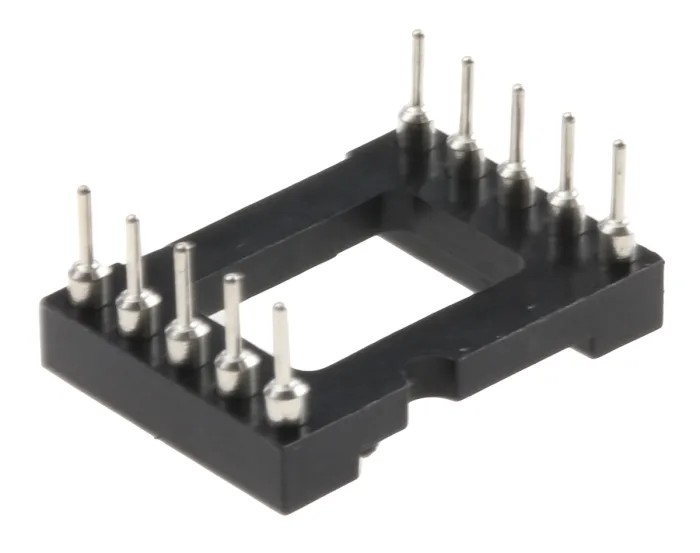

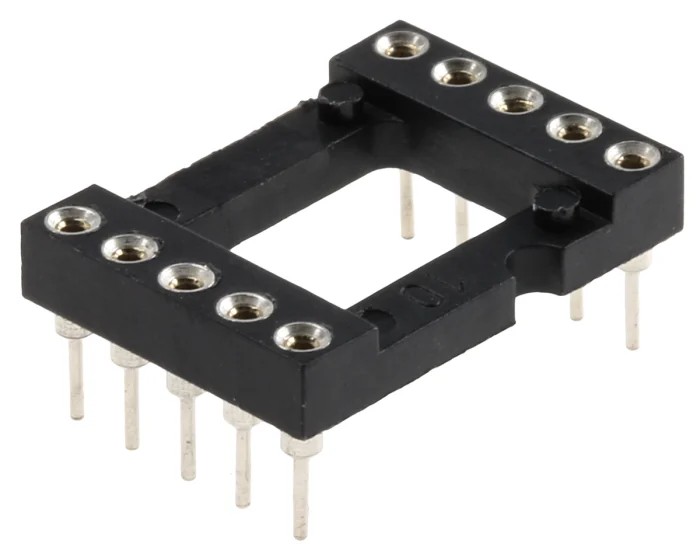

Preci-Dip 110 2.54 mm Pitch Vertical 10 Way Through Hole Turned Pin Open Frame DIL Socket 110-87-610-41-001101

Preci-Dip 110-87-610-41-001101 is a premium vertical dual-in-line (DIL) socket with a 2.54 mm pitch and 10 contact positions, engineered for reliable through hole mounting on printed circuit boards. It features a robust open frame design facilitating easy inspection and soldering while maintaining excellent electrical performance.

The socket contact system utilizes turned pins made of brass with beryllium copper alloy, enhanced by gold and tin plating to guarantee low contact resistance and long-term corrosion resistance. The housing is constructed from fibreglass reinforced polyethylene terephthalate, providing mechanical strength and thermal stability across a broad temperature range from -55°C up to 125°C.

This DIL socket supports a continuous current of 1 amp and a voltage rating between 100 and 150 volts AC, making it suitable for moderate power electronic applications. The solder termination ensures solid and reliable electrical connections to the PCB.

Its vertical orientation and precise 2.54 mm pin pitch align with common industry standards for IC sockets, enabling seamless integration into a wide array of industrial, laboratory, and manufacturing electronic equipment. The compact dimensions of 17.7 mm width, 2.8 mm depth, and 12.7 mm length provide space-efficient installation without compromising performance.

Originating from Switzerland, this Preci-Dip 110 series socket embodies the high standards required in precision electronics components. Open frame vertical DIL socket with 10 contacts ensuring ease of access. Turned pin contact type optimized for through hole PCB mount.

Gold and tin plated contacts provide excellent conductivity and corrosion resistance. Temperature rated for -55°C to 125°C operation. Housing made of robust fibreglass reinforced PET for durability. Rated for 1 amp current and 100-150 VAC voltage applications.

Compact size suits diverse electronic mounting configurations. Manufactured in Switzerland to ensure quality and reliability. Compatible with solder termination for secure PCB connection. Standard 2.54 mm pitch spacing accommodates common IC pin layouts.

These features make the Preci-Dip 110-87-610-41-001101 DIL Socket ideal for industrial electronics, laboratory instrumentation, manufacturing automation, and electronic prototyping environments. Explore the Electronics Components category at EnvMart for more precision sockets and connectors.
