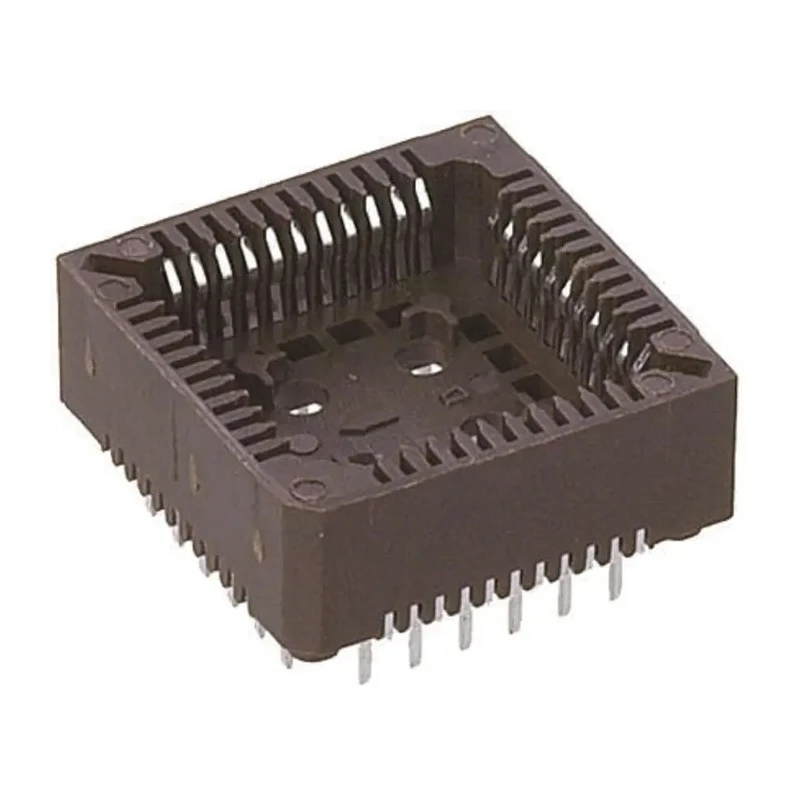

Preci-Dip 1.27 mm Pitch 28 Way DIP Through Hole PLCC IC Socket 540-88-028-24-008
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100, 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 1A |
| Housing Material | Fibreglass Reinforced Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | 540 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Pitch | 1.27mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Number of Contacts | 28 |
| IC Socket Type | PLCC Socket |
| Device Mount Type | Through Hole |
Key Features
- The IC socket type is PLCC with a DIP package for through-hole PCB mounting.
- It features 28 contacts arranged in 4 rows, supporting currents up to 1A.
- Contacts are made of phosphor bronze with tin plating for durability and conductivity.
- The socket operates between temperatures of -55°C to 125°C and voltages up to 150V.
- The housing is constructed from fibreglass reinforced polyphenylene sulphide for strength and insulation.
- The orientation is straight with solder termination type and through-hole mounting.
- This socket achieves a minimum contact pressure of 1.5 N per contact and mechanical life of at least 50 cycles.
- Capacitance is kept low at a maximum of 2 pF for signal integrity.
Product Description
Preci-Dip 540-88-028-24-008 is a 1.27 mm pitch 28 way DIP through hole PLCC IC socket designed for secure and reliable IC package connections in industrial and electronic applications. With a current rating of 1A and operating voltages of 100 to 150V, this socket supports demanding circuit requirements.
The socket features 28 phosphor bronze contacts plated with tin for excellent electrical conductivity and mechanical resilience. It is engineered with a straight orientation and a DIP package type for easy through-hole mounting on PCBs. The housing is made from fibreglass reinforced polyphenylene sulphide, which provides thermal stability and robust insulation.
Operating temperature range spans from -55°C to 125°C, making it suitable for harsh environments encountered in industrial electronics, telecommunications, and instrumentation. The contacts offer a minimum pressure of 1.5 N each, ensuring solid IC engagement over a mechanical life of at least 50 insertion cycles. Low capacitance (max 2 pF) contributes to reduced signal interference, crucial for precision electronics.
The socket meets UL 94V-0 safety standards, guaranteeing flame retardance for enhanced protection. It belongs to the 540 series of Preci-Dip, known for precision and reliability in IC socket applications.
The IC socket type is PLCC with DIP package for through-hole PCB mounting. Contains 28 phosphor bronze contacts plated with tin for durability. Supports operating temperatures from -55°C to 125°C. Ensures a minimum contact pressure of 1.5 N and mechanical life of 50 cycles.
Designed to operate up to 150V voltage and 1A current capacity. Capacitance is limited to a maximum of 2 pF to ensure signal integrity. Constructed with fibreglass reinforced polyphenylene sulphide housing. Features solder termination type and straight orientation for reliable mounting.
Meets UL 94V-0 flammability standard for safety compliance. Part of the 540 Series from Preci-Dip for accurate IC packaging.
Suitable for industrial, electronic manufacturing, telecommunications, instrumentation, and laboratory applications. This IC socket offers robust performance for DIP IC packaging requirements. Explore more products like this in the IC Socket category at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at voltages of 100 to 150V.
The current capacity is rated at 1A.
This socket operates within a temperature range of -55°C to 125°C.
It features 28 contacts arranged in 4 rows.
The contacts are made of phosphor bronze with tin plating, while the housing is constructed from fibreglass reinforced polyphenylene sulphide.
It achieves a minimum contact pressure of 1.5 N per contact.
It features a solder termination type.
The pitch is 1.27 mm.
Yes, it is designed for through-hole PCB mounting.
It meets the UL 94V-0 flammability standard for safety compliance.
It is suitable for industrial, electronic manufacturing, telecommunications, instrumentation, and laboratory applications.
This socket belongs to the 540 series from Preci-Dip.
