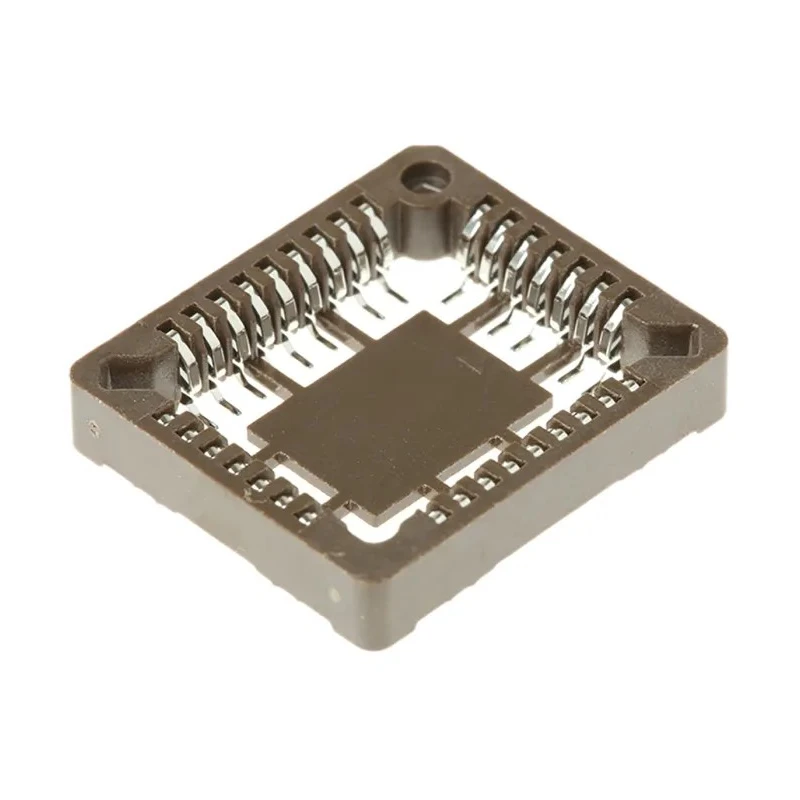

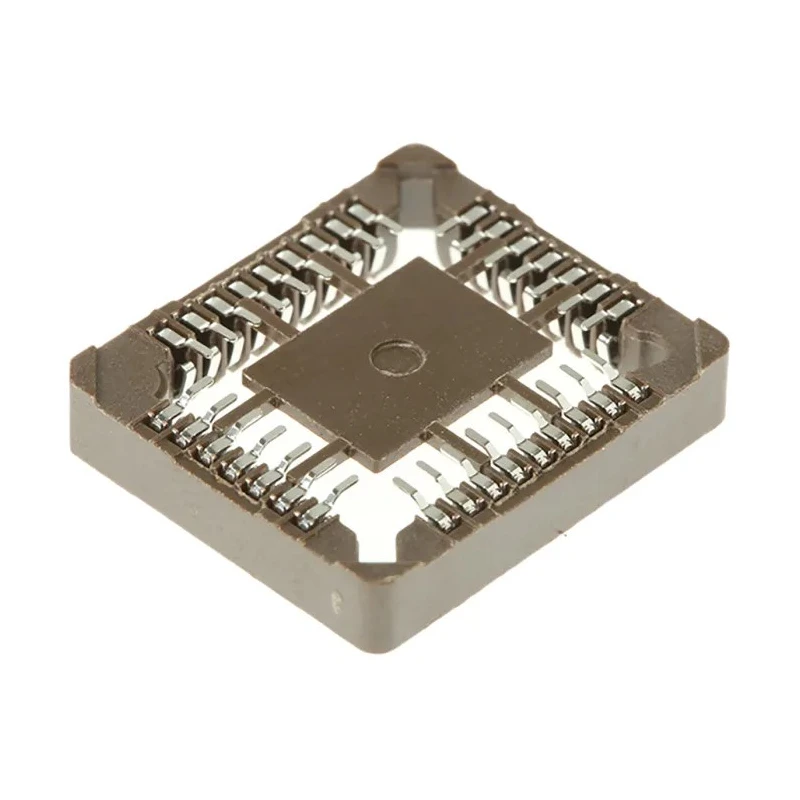

Preci-Dip 1.27 mm Pitch 32 Way Surface Mount Through Hole PLCC IC Socket 540-88-032-17-400

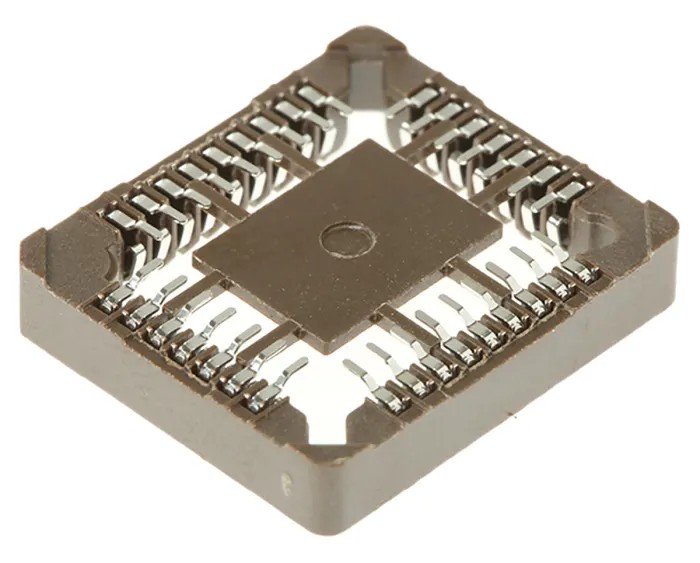

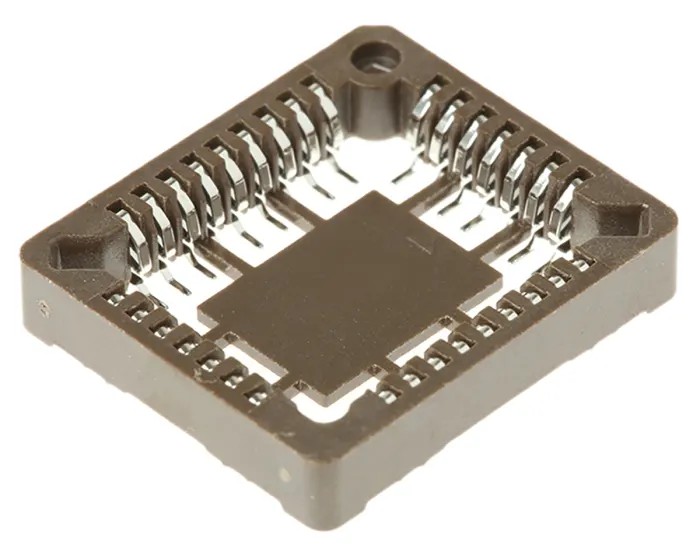

Preci-Dip 540-88-032-17-400 is a precision PLCC IC socket designed for surface mount through hole applications with a 1.27 mm pitch and 32 contacts arranged in 4 rows. It is engineered to provide reliable connections in demanding industrial and electronic environments.

The contacts are made of phosphor bronze with tin plating, optimizing electrical conductivity and corrosion resistance. Rated for 1 amp current and supporting voltages up to 150 V, this socket is suitable for various electronic components and circuits.

The housing uses fibreglass reinforced polyphenylene sulphide, ensuring excellent mechanical strength and stability under thermal stress. Operating temperature ranges from -55°C to 125°C, making it well suited for industrial, manufacturing, and laboratory applications.

The socket mount type is through hole with solder termination, ensuring durable PCB mounting and ease of assembly. It conforms to the UL 94V-0 flammability standard, providing safety and compliance for end-use equipment.

Preci-Dip 540 Series sockets offer a minimum mechanical life of 50 cycles and maintain a minimum contact pressure of 1.5 N per contact, assuring long-term reliability in electronic assemblies.

The socket provides 32 contact points arranged over 4 rows for multiple IC packages. Contact material is phosphor bronze with tin plating for enhanced conductivity. The socket suits a current capacity of 1 amp and voltage up to 150 volts.

Housing is fibreglass reinforced polyphenylene sulphide for mechanical durability. Suitable for use from -55°C up to 125°C in challenging environments. Through hole solder termination mounting ensures firm PCB integration.

Meets UL 94V-0 standard for flame retardance. Designed for industrial, manufacturing, and laboratory electronic applications. This PLCC IC Socket is an ideal component for electronic manufacturing, testing, and repair, enabling efficient insertion and replacement of ICs in PCBs.
