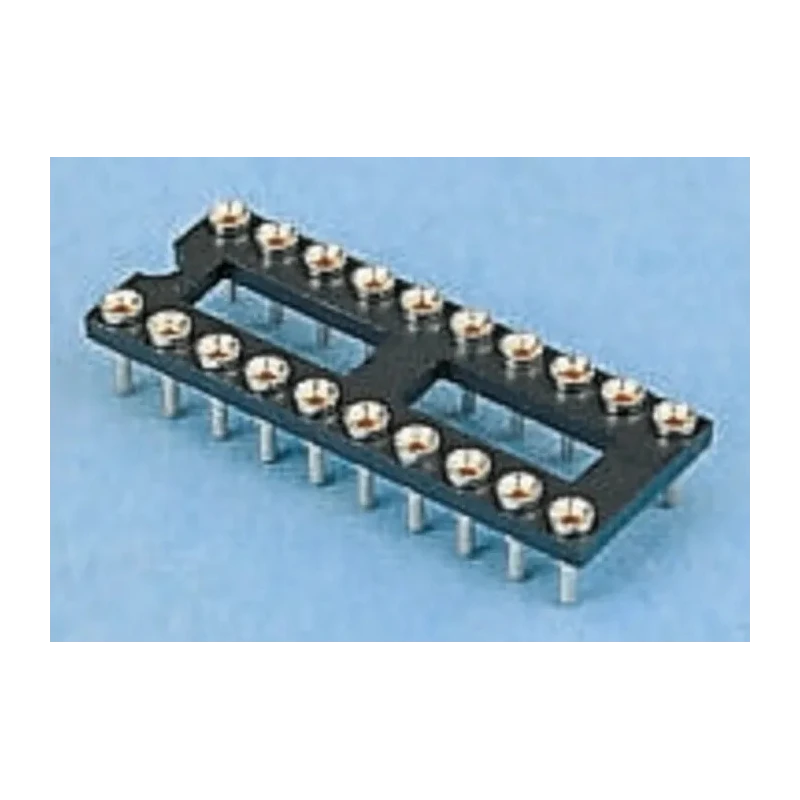

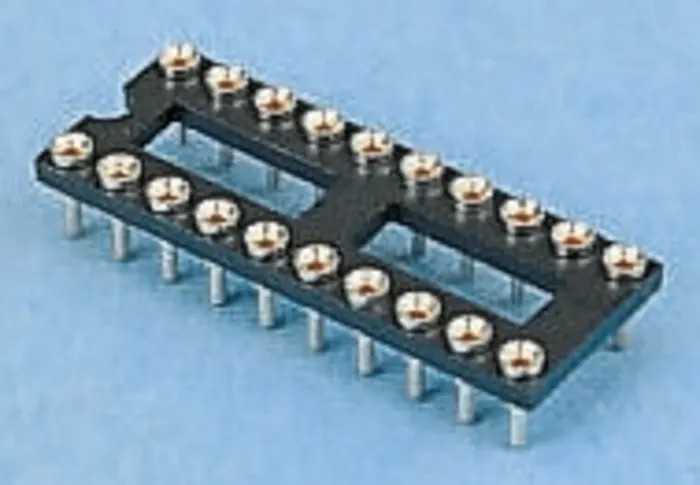

E-TEC 2.54 mm Pitch Vertical 14 Way Through Hole Turned Pin Open Frame DIL Socket, 1A LOP-314-S083-95

E-TEC LOP-314-S083-95 2.54 mm Pitch Vertical 14 Way Through Hole Turned Pin Open Frame DIL Socket, rated at 1A and 100V, is ideal for electronics assemblies requiring compact, reliable connections.

This super low profile socket incorporates beryllium copper alloy contacts with tin and gold plating to provide excellent electrical conductivity and corrosion resistance. The turned pin design ensures dependable insertion into standard 0.8 mm PCB holes.

The open frame construction and vertical orientation allow for minimal board height of 7.62 mm, beneficial in stacked board or compact system designs. The polybutylene terephthalate housing offers robustness and thermal stability to 125°C, suitable for demanding industrial and laboratory environments.

Sockets can be juxtaposably mounted without throughput loss, allowing multiple units to be combined in tight spacing scenarios. The solder termination facilitates secure and durable PCB mounting.

Applications include use in programming EPROMs and similar memory devices, industrial control systems, and electronic prototyping requiring low-profile socket interfaces. This socket provides 14 contact points spaced at 2.54 mm pitch for standard DIP IC compatibility.

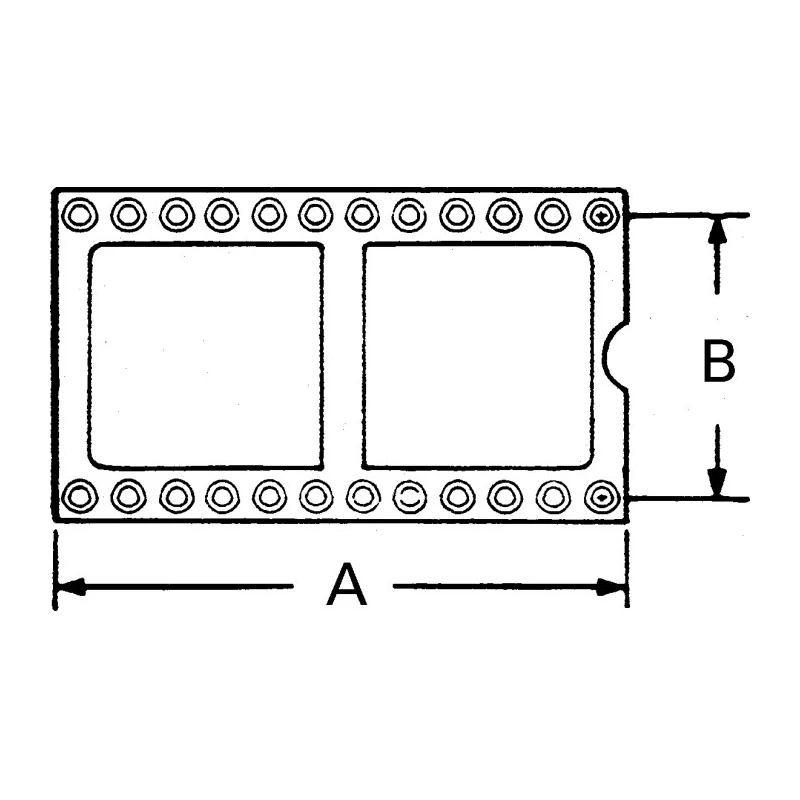

The frame depth is 10.16 mm with an overall length of 17.78 mm and width of 2.41 mm. Contact materials and plating are selected to ensure long life and dependable operation in industrial and commercial electronics. Designed for through-hole mount technology (THT) providing strong mechanical and electrical connections to printed circuit boards.

Supports currents up to 1A at 100V, making it suitable for low power electronic circuits. Explore EnvMart's broad range of electronic components designed for professional electronics manufacturing, laboratory instruments, and industrial applications.
