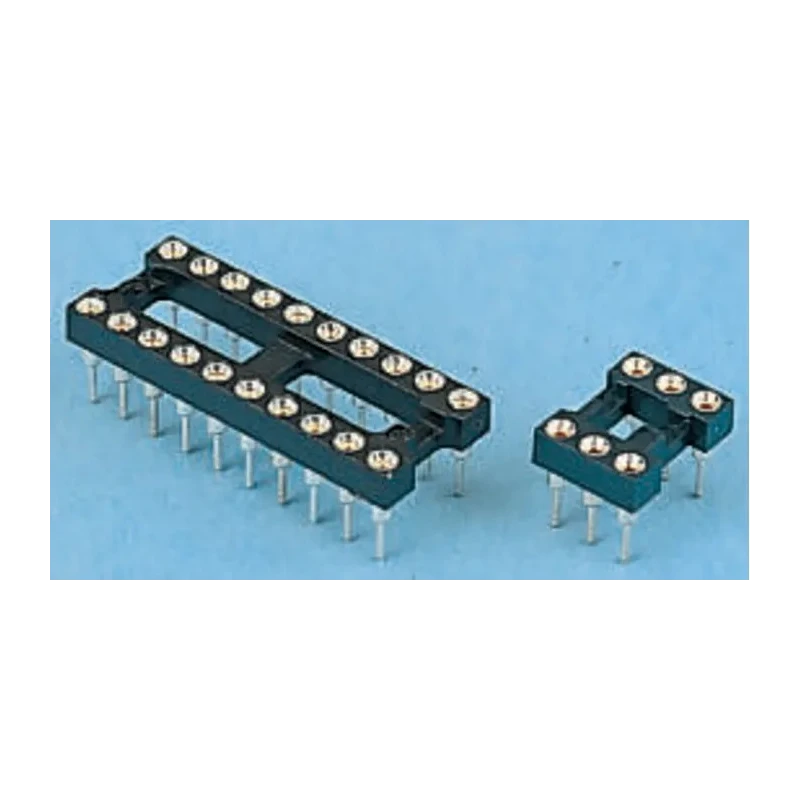

E-TEC 40 Way 2.54 mm Pitch Vertical Through Hole Turned Pin Open Frame DIL Socket 3A POS-640-S001-95

E-TEC POS-640-S001-95 40 Way 2.54 mm Pitch Vertical Through Hole Turned Pin Open Frame DIL Socket is a precision electronic connector designed to provide consistent and reliable connections in various applications. This DIL socket features gold-plated tulip grip contacts with high conductivity beryllium copper alloy and brass pins ensuring long-term durability and minimal contact resistance.

The open frame design allows for excellent heat dissipation, making it suitable for use in demanding environments with operating temperatures ranging from -65°C to +125°C. The socket has a current rating of 3A and is rated for voltages up to 500V, supporting robust electronic circuitry. Its vertical orientation and through-hole mounting promote sturdy mechanical assembly within PCB boards.

The housing is constructed from polybutylene terephthalate, a material known for its mechanical strength and chemical resistance, protecting internal contacts. The socket's design prevents capillary action with solder and flux to maintain the integrity of the PCB during assembly and use. Its termination is solder type compatible with standard PCB manufacturing processes.

Industrial, laboratory, electronic manufacturing, and prototyping applications benefit from this socket’s precision and durability. Its contact life of 100 cycles ensures it can be used effectively for repeated insertions and removals of integrated circuits. The socket measures 50.8 mm in length with a 4.45 mm width and has a row width of 15.24 mm, accommodating standard DIL package sizes.

Features a 2.54 mm pitch with 40 vertical turned pins for through-hole mounting. Constructed with beryllium copper alloy contacts and brass pins for excellent conductivity and durability. Open frame design ensures optimal heat dissipation during operation.

Gold-plated 'tulip' grip contacts prevent capillary action with solder and flux on PCBs. Rated for 3 Amps current and 500 Volts voltage for robust performance. Operating temperature range from -65°C to +125°C suitable for harsh environments.

Housing made from polybutylene terephthalate providing chemical resistance and mechanical strength. Termination type is solder, compatible with standard PCB assembly processes. Contact life rated for 100 cycles ensuring reliable repeated connections.

Dimensions include length of 50.8 mm, width of 4.45 mm, and row width of 15.24 mm. Precision DIP socket suitable for industrial, laboratory, and electronic manufacturing applications.

This E-TEC DIL Socket POS-640-S001-95 is ideal for applications requiring robust and precise integrated circuit connectivity, including industrial electronics, laboratory instrumentation, and manufacturing test equipment. The high-temperature tolerance and open frame design ensure stability and safety under various working conditions. Explore a wide selection of connectors and electronic components at EnvMart for your industrial and production needs.
