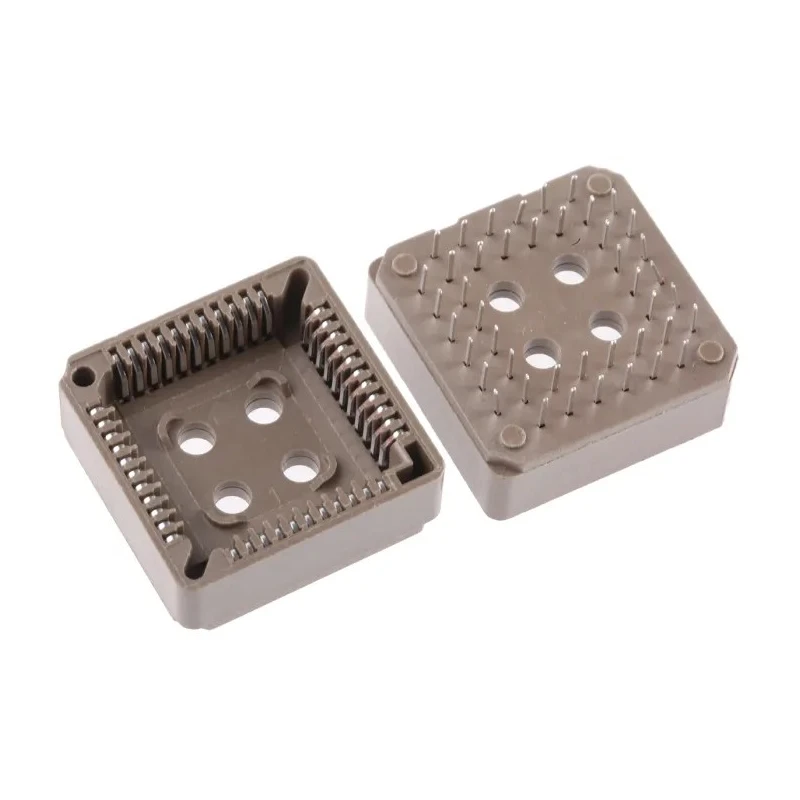

Preci-Dip 1.27 mm Pitch 44 Way DIP Through Hole PLCC IC Socket 540-88-044-24-008

This IC socket is designed to safely accommodate PLCC IC packages for a wide range of electronic applications.

The socket features a robust fibreglass reinforced polyphenylene sulphide housing that provides excellent mechanical strength and resistance to harsh operating conditions. Its contact material made of phosphor bronze offers reliable electrical conductivity, while the tin plating enhances corrosion resistance to ensure long-term performance.

Designed for through-hole solder mounting on printed circuit boards, it supports up to 44 pin contacts arranged in 4 rows. The socket’s standard pitch of 1.27 mm ensures compatibility with JEDEC MO-047 and MO-52 package standards, making it suitable for various IC types.

It operates effectively within a wide temperature range from -55°C to 125°C, allowing deployment in industrial, laboratory, and commercial electronics environments. The socket handles voltages of 100 to 150 V and a current rating of 1A, making it appropriate for low-power ICs with demanding reliability requirements.

The mechanical life expectancy exceeds 50 insertion cycles, providing durability for applications requiring frequent IC replacement or testing. Contact pressure is maintained at a minimum of 1.5 N per contact to ensure secure and consistent electrical connection.

The socket is also UL 94V-0 rated for flame retardance, providing an additional safety factor in electronic assemblies. Its straight orientation and DIP package type support easy installation and stable physical mounting on PCBs.

Constructed with fibreglass reinforced polyphenylene sulphide housing for mechanical durability. Phosphor bronze contacts with tin plating for high conductivity and corrosion resistance. Supports 1.27 mm pitch PLCC ICs compliant with JEDEC MO-047 and MO-52.

Operating temperature range from -55°C to 125°C for diverse environments. Rated for 100 to 150 volts and 1 ampere current capacity. Through-hole solder mounting type for secure PCB assembly. Minimum 1.5 N contact pressure and mechanical life of at least 50 cycles.

Flame retardant housing compliant with UL 94V-0 standard.

This Preci-Dip IC socket is ideal for electronic manufacturing, testing, and maintenance in industrial, commercial, and research laboratory settings requiring reliable connector performance for PLCC IC packages.
