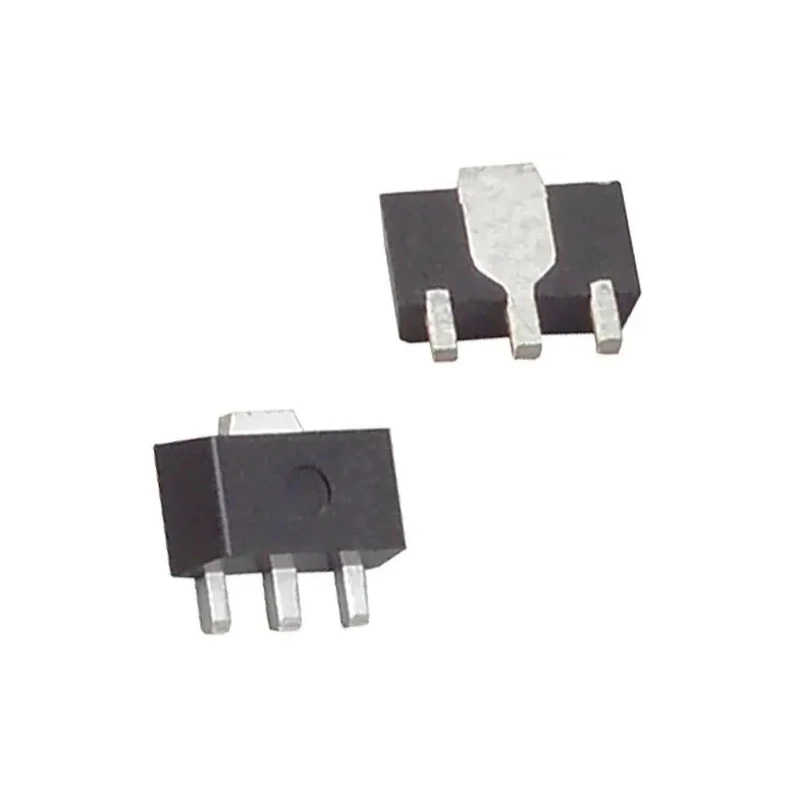

Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator 3V 100mA Surface Mount NJM78L03UA-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM78L03UA-TE1 |
| Mount Type | Surface |
| Series | NJM78L00 |
| Output Current | 100mA |
| Maximum Operating Temperature | 125°C |
| Load Regulation | 50 mV |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Linear Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Output Voltage | 3V |
| Quiescent Current | 6mA |
| Line Regulation | 125 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4V |
| Pin Count | 3 |
Key Features
- Designed for surface mount applications with 3 pins.
- Features internal current limiting and thermal shutdown for protection.
- Low quiescent current of 6mA enhances energy efficiency.
- Operates reliably between -40°C and 125°C temperature range.
- Supports input voltage range from 4V to maximum 40V.
- Includes excellent ripple rejection for stable voltage output.
- Built using JRC Planar epitaxial process ensuring durability and robustness.
- Compliant with RoHS standards, ensuring environmentally friendly manufacturing.
Product Description
Nisshinbo Micro Devices NJM78L03UA-TE1 is a 1-channel linear voltage regulator designed for precision voltage regulation in electronic circuits. This surface mount device provides a fixed output voltage of 3V with a maximum output current of 100mA, making it suitable for compact power management applications in industrial and consumer electronics.
Manufactured using the advanced JRC Planar epitaxial process, this voltage regulator integrates internal current limiting and thermal shutdown features to protect against overload and overheating conditions. It maintains excellent ripple rejection, ensuring a clean and stable output voltage even in noisy power environments.
The device operates efficiently with a low quiescent current of 6mA, minimizing power consumption. It supports a broad temperature range from -40°C to 125°C, making it ideal for demanding industrial and automotive applications, although it is not certified for automotive use.
The input voltage range spans from 4V minimum to 40V maximum, providing compatibility with a variety of power sources. Line regulation is specified at 125mV while load regulation is 50mV, allowing tight voltage control under varying load conditions. RoHS compliance ensures the product meets environmental safety standards.
This NJM78L00 series regulator is a reliable component for power management in semiconductor devices, electric control panels, instrumentation, and embedded systems requiring stable 3V power supply.
Surface mount with 3-pin configuration for easy PCB integration. Robust internal protections enhance device lifetime and safety. Lightweight design supports modern electronics miniaturization. RoHS compliant for global environmental regulations adherence.
Ideal for use in industrial, laboratory, and electronic manufacturing sectors.
Choose Nisshinbo Micro Devices for trusted, high-quality power regulation solutions. Explore more power management ICs and Voltage Regulators on EnvMart to suit all your design and production needs.
