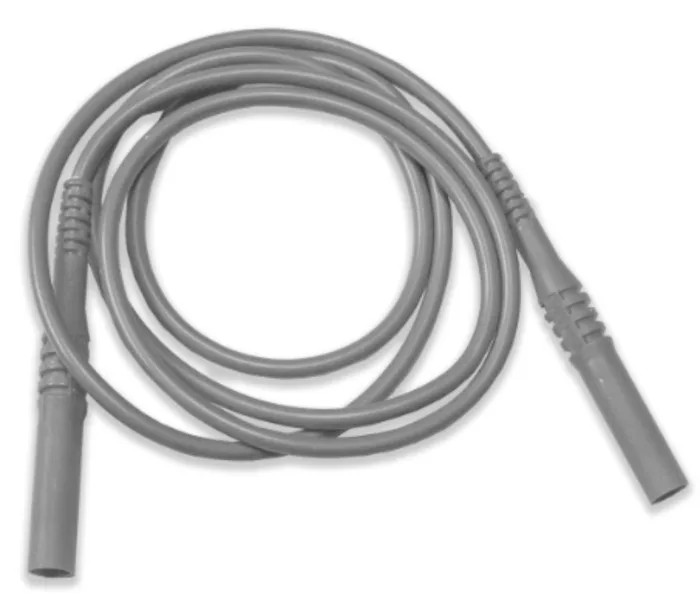

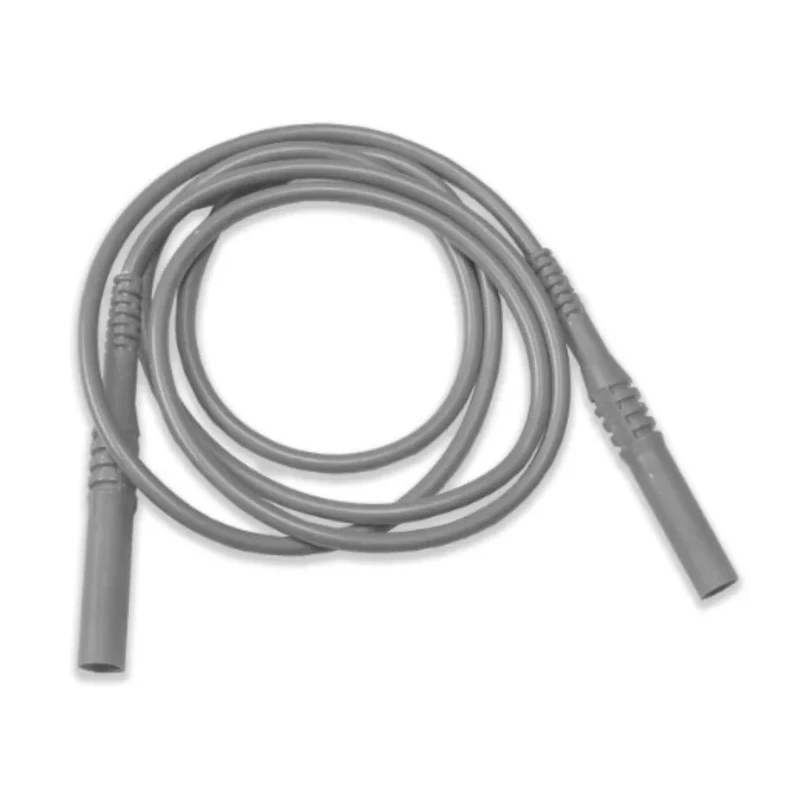

Mueller Electric Test Lead 20A 1kV Grey 1.8 Meter Lead Length BU-6161-M-72-8

Free Delivery in India | Lowest Global Shipping Charges

Mueller Electric Test Lead 20A 1kV Grey 1.8 Meter Lead Length BU-6161-M-72-8

Name: Mueller Electric Test Lead 20A 1kV Grey 1.8 Meter Lead Length BU-6161-M-72-8
Brand: Mueller Electric
SKU: 154581
Price: 34.68 USD
Availability: InStock



Category Test Leads Brand Mueller Electric Condition New

Specifications

Country of Origin	India
Voltage	1kV
Brand	Mueller Electric
Colour	Grey
Current	20A
Model	BU-6161-M-72-8
Contact Material	Brass
Maximum Operating Temperature	80°C
Insulation Material	Silicone
Lead Length	1.8m
Ratings	1000 V, 20 Amps. Hands free testing to 3000V
Standards/Approvals	RoHS
Test Lead Type	4 mm Connector Test Lead

Key Features

Shrouded 4mm banana plugs on both ends ensure secure and reliable connections.
Constructed with 18 AWG, 413 strand 3577 highly flexible silicone-jacketed wire.
Rated for 1000 V and 20 Amps, suitable for hands-free testing up to 3000 V.
Nickel plated beryllium copper and brass banana plugs for enhanced durability.
Maximum operating temperature of 80°C supports robust performance in demanding environments.
Standard lead length of 1.8 meters offers convenient reach for various setups.
Colour coded grey insulation aids easy identification and organization in test setups.

Product Description

Mueller Electric BU-6161-M-72-8 Test Lead 20A 1kV Grey 1.8 Meter Lead Length is a precision-engineered test lead designed specifically for electrical and electronic testing professionals. The product features shrouded 4mm banana plugs at both ends, providing secure and safe connections for test equipment and meters. With an 18 AWG wire composed of 413 strands (type 3577) jacketed in flexible silicone, the lead offers superior flexibility and durability, facilitating ease of use during testing procedures.

The test lead is rated for currents up to 20 Amps and voltages up to 1000 V, with capability to handle hands-free testing conditions reaching 3000 V, enhancing user safety during high-voltage measurements. The banana plugs utilize nickel-plated beryllium copper and brass materials to resist corrosion and wear, ensuring long-term reliability.

Operating temperature tolerance of up to 80°C makes this test lead suitable for demanding industrial environments and laboratory conditions. The grey silicone insulation provides excellent electrical insulation and mechanical protection, while the standard length of 1.8 meters allows convenient reach in various testing setups. This test lead is fully RoHS compliant, underscoring its environmental and safety standards.

Shrouded 4mm banana plugs provide secure connections. Highly flexible 18 AWG silicone jacketed wire with 413 strands (type 3577). Rated up to 20 Amps current and 1000 V voltage; suitable for hands-free testing up to 3000 V.

Banana plugs are nickel-plated beryllium copper and brass for durability. Maximum operating temperature 80°C for use in industrial and laboratory settings. Lead length of 1.8 meters for versatile application reach. Grey silicone insulation ensures electrical safety and durability.

Environmentally compliant with RoHS standards.

This test lead is ideal for electrical test and measurement use in industrial, laboratory, manufacturing, and educational environments. Suitable for robust, high-precision continuity, voltage, and current testing tasks requiring reliable and safe connectors and flexible wiring. Explore more quality electrical test accessories in the Electrical Test & Measurement category at EnvMart.
