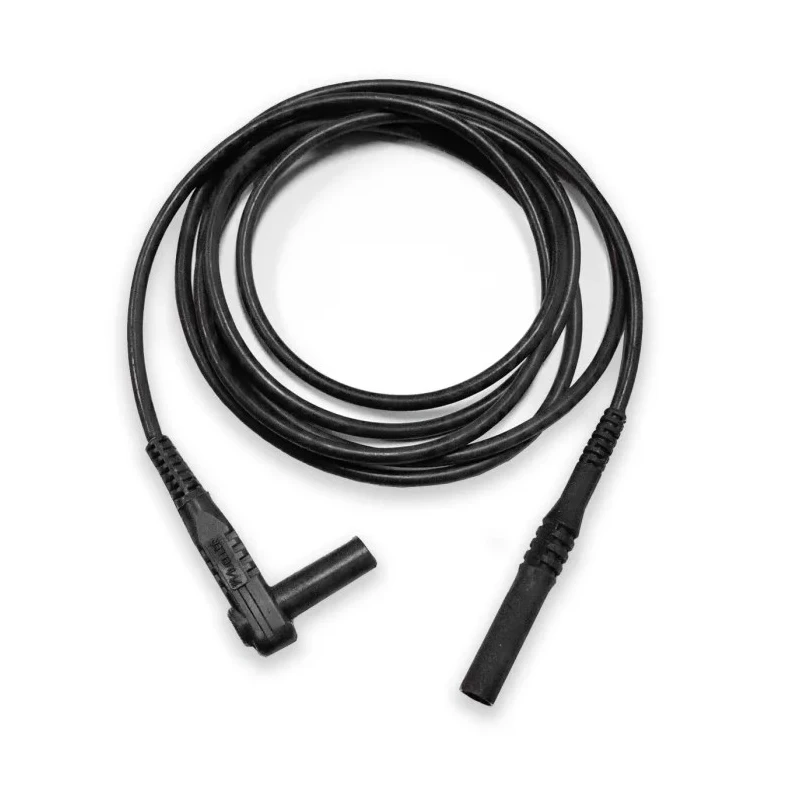

Mueller Electric 4 mm Connector Test Lead 20A 1kV Black 1.8m Lead BU-6162-M-72-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Mueller Electric |
| Colour | Black |
| Current | 20A |
| Model | BU-6162-M-72-0 |
| Housing | High Temperature Nylon |
| Contact Material | Brass |
| Maximum Operating Temperature | 105°C |
| Wire | #18 AWG (413/44), 105°C High Flex Silicone |
| Insulation Material | Silicone |
| Lead Length | 1.8m |
| Standards/Approvals | RoHS |
| Test Lead Type | 4 mm Connector Test Lead |
Key Features
- Constructed with #18 AWG (413/44) 105°C high flex silicone for durability.
- Features shrouded 4 mm banana plugs with right angle and straight ends.
- Insulation material is silicone ensuring flexibility and safety at high temperatures.
- Contact material is brass providing reliable electrical connections.
- Maximum operating temperature of 105°C suitable for demanding electrical testing tasks.
- Jacketed with 413 strand 3577 flexible wire for excellent conductivity and mechanical strength.
- Compatible with 4 mm banana jacks for versatile usage.
- Designed for hands-free testing up to 3 kV and 20 Amps.
Product Description
Mueller Electric BU-6162-M-72-0 Test Lead offers a highly flexible, reliable solution for electrical and electronic testing applications. Rated for 20 Amp current and testing voltages up to 1 kV, this black test lead is equipped with shrouded 4 mm banana plugs, one right angled and one straight, to ensure safe and secure connectivity.
The lead wire is #18 AWG with 413 strands of fine copper, coated in high-flex silicone rated for use at temperatures up to 105°C. The silicone insulation imparts exceptional flexibility and durability making it ideal for frequent bending and movement in laboratory, industrial, and field testing environments.
Contact points are made of brass to provide excellent electrical conductivity and corrosion resistance. The housing of the connectors uses high temperature nylon, supporting safe operation under thermal stress.
This test lead is compatible with standard 4 mm banana jacks and supports hands-free testing up to 3 kV at 20 Amps current, making it suitable for a wide range of electrical test and measurement tasks across electronics manufacturing, maintenance, laboratory testing, and quality control.
Packaged in bulk, this test lead caters to professional users who require reliable, durable, and flexible test leads certified to RoHS standards. Constructed with flexible #18 AWG silicone insulation for durability and safety.
Shrouded 4 mm banana plugs for enhanced operator safety. Brass contact material ensures conductivity and resistance to wear. Rated for continuous use at temperatures up to 105°C. Compatible with 4 mm banana jack test equipment.
Rated 20 Amp current capacity and 1 kV working voltage. Housing made of high temperature nylon for thermal endurance. Designed for hands-free testing up to 3 kV and 20 Amps. Ideal for industrial, laboratory, and field electrical testing.
Explore the full range of Mueller Electric Test Leads and measurement accessories to find the best solutions for your electrical testing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This test lead is rated for a maximum operating voltage of 1 kV.
It supports a current capacity of 20 Amps.
The lead length is 1.8 meters.
The test lead features a #18 AWG wire with high-flex silicone insulation, brass contact material, and a housing made of high temperature nylon.
The maximum operating temperature is 105°C.
It is equipped with shrouded 4 mm banana plugs, one right angled and one straight.
Yes, it is compatible with standard 4 mm banana jacks.
This test lead is certified to RoHS standards.
The insulation material is silicone, which provides flexibility and safety at high temperatures.
It is suitable for a wide range of electrical test and measurement tasks across electronics manufacturing, maintenance, laboratory testing, and quality control.
It is designed for hands-free testing up to 3 kV and 20 Amps current, allowing for secure and convenient operation during testing.
The shrouded 4 mm banana plugs enhance operator safety by ensuring secure connections and reducing the risk of accidental contact.
