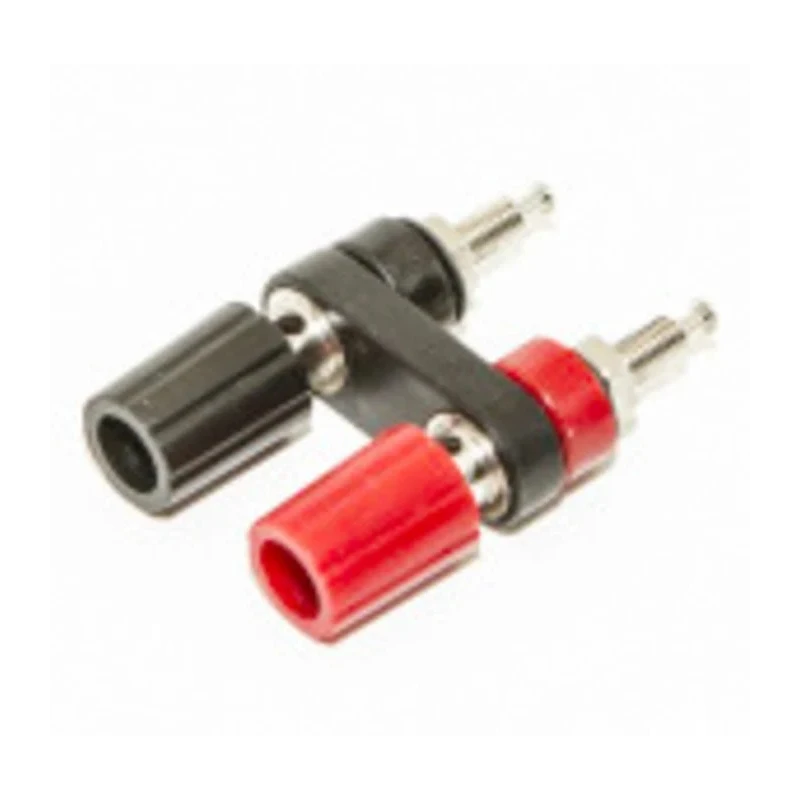

Mueller Electric 9.5 mm Red, Black Terminal Post, 1000V, 15A BU-P4243-0
Specifications
| Country of Origin | China |
|---|---|
| Brand | Mueller Electric |
| Material | Bright Tin Plated Brass with Polycarbonate Insulators and High Temp ABS Spacer |
| Colour | Red, Black |
| Body Material | Brass |
| Current | 15A |
| Model | BU-P4243-0 |
| Hole Diameter | 9.5mm |
| Ratings | 15 Amps, Hands Free testing to 1000V |
| Standards/Approvals | RoHS |
| Maximum Panel Thickness | 6.4mm |
| Panel Cutout is | φ.375 (9.5mm) thru holes on .75 (19mm) centers |
Key Features
- Constructed from bright tin plated brass for superior conductivity and durability.
- Equipped with polycarbonate insulators and a high temperature ABS spacer for enhanced safety.
- Supports panel mounting up to 6.4 mm thick for versatile installation.
- Designed as a slim-line binding post accepting non-shrouded and retractable 4 mm banana plugs and 7 mm spade connectors.
- Rated for hands-free testing up to 1000 volts and 15 amps current.
- Panel cutout diameter is 9.5 mm with 19 mm centers for precise mounting.
- RoHS compliant ensuring environmentally friendly manufacturing standards.
- Manufactured in China under strict quality control.
Product Description
Mueller Electric BU-P4243-0 terminal post features a 9.5 mm hole diameter and is rated for 15 Amps current with insulation for safe operation up to 1000 volts. This product is ideal for electrical test and measurement applications requiring a reliable connection point for banana plugs, spade connectors, and bare wires.
Constructed using bright tin plated brass, the terminal post delivers excellent electrical conductivity and long-lasting durability. The use of polycarbonate insulators combined with a high temperature ABS spacer ensures that the post maintains safe operation even in demanding environments.
This terminal post mounts easily through panels up to 6.4 mm thick, with mounting holes aligned on 19 mm centers, making installation straightforward for various panel designs in electrical enclosures or test equipment.
The BU-P4243-0 slim-line binding post accepts a variety of connection types, including non-shrouded and retractable 4 mm banana plugs, bare wire, and spade connectors with an internal diameter of 7 mm. The internal wires connect via a solder post, providing a secure, reliable wiring solution.
The product is RoHS compliant, ensuring environmentally responsible manufacture, and supports hands-free testing procedures safely up to 1000 volts and 15 amps current rating. Constructed from bright tin plated brass for superior conductivity and durability.
Polycarbonate insulators and high temperature ABS spacer for enhanced safety. Supports mounting through panels up to 6.4 mm thickness. Accepts non-shrouded and retractable 4 mm banana plugs, bare wire, and 7 mm spade connectors.
Internal wiring connected via solder post for secure connections. Panel cutout diameter is 9.5 mm with holes on 19 mm centers. Hands-free testing rated for 1000 volts and 15 amps current. RoHS compliant and manufactured in China.
This terminal post is suitable for industrial, laboratory, electrical test and measurement, and safety equipment applications. Its reliable connection capabilities make it an excellent choice for engineers and technicians requiring secure and easy test point access.
Explore more from Mueller Electric and similar Terminal Posts for your electronics and electrical components needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal post is rated for a maximum current of 15 Amps.
It is rated for hands-free testing up to 1000 volts.
The panel cutout diameter for this terminal post is 9.5 mm.
It accepts non-shrouded and retractable 4 mm banana plugs, bare wire, and 7 mm spade connectors.
This terminal post supports mounting through panels up to 6.4 mm thick.
It is constructed from bright tin plated brass with polycarbonate insulators and a high temperature ABS spacer.
The mounting holes are aligned on 19 mm centers.
Yes, it is RoHS compliant, ensuring environmentally friendly manufacturing standards.
It is manufactured in China under strict quality control.
The internal wires connect via a solder post, providing a secure wiring solution.
It is suitable for industrial, laboratory, electrical test and measurement, and safety equipment applications.
The terminal post is available in red and black colors.
