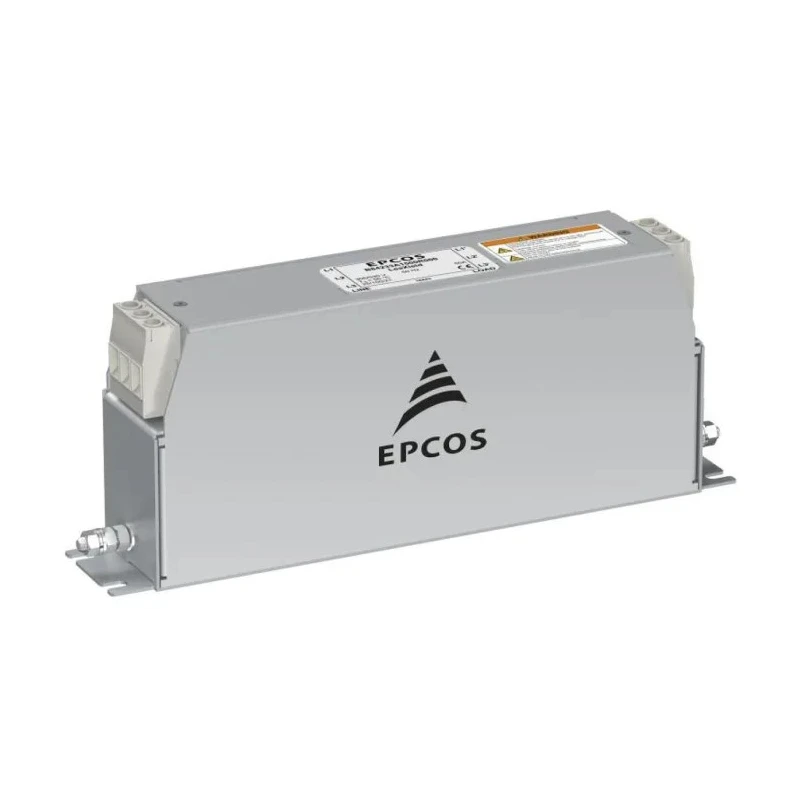

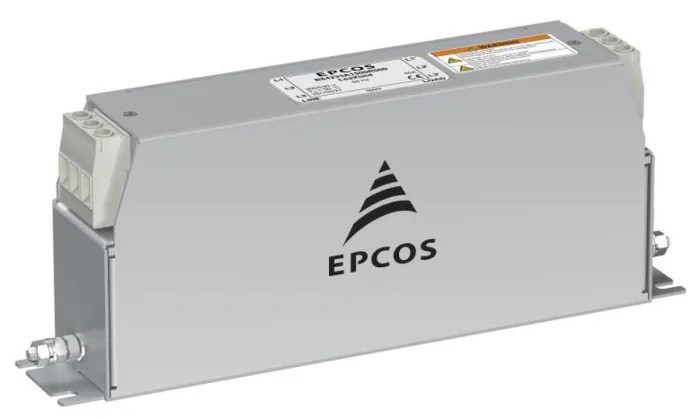

TDK EMC Filter, 50A, 530V AC, 30kHz, Terminal Block, 3 Phase B84233A1500R000
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 120mm |
| Length | 270mm |
| Model | B84233A1500R000 |
| Depth | 60mm |
| Operating Frequency | 30kHz |
| Series | B84233A |
| Maximum Operating Temperature | 50°C |
| Resistance | 1mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50A |
| Number of Phases | 3 |
| Maximum Voltage | 530V ac |
| Standards/Approvals | IEC 60068-1 |
| Termination Style | Terminal Block |
Key Features
- Provides earth leakage compensation for variable-speed drive systems.
- Maintains RCD compatibility in industrial power applications.
- Rated for continuous operation at 50A, 530V AC, 3-phase input.
- Supports 30kHz operating frequency for broad EMI suppression.
- Terminal block style simplifies installation in control panels.
- Low resistance of 1mΩ minimizes power loss.
- Compliant with IEC 60068-1 standard for durability.
- Designed to operate between -25°C and 50°C ambient temperature.
Product Description
The TDK B84233A1500R000 is a high-performance EMC (Electromagnetic Compatibility) filter specifically designed for integration in three-phase power systems operating at up to 50A and 530V AC. This advanced filter plays a critical role in mitigating earth leakage currents, which are common in variable-speed drive installations commonly found in industrial, commercial, and manufacturing applications. Its role is essential in maintaining compatibility with sensitive residual current devices (RCDs), reducing nuisance tripping, and ensuring equipment reliability.
This model features a robust terminal block interface for secure electrical connections and is engineered for an operational frequency of 30kHz, making it highly effective in suppressing electromagnetic interference across a wide band. The enclosure measures 270mm in length, 120mm in height, and 60mm in depth, allowing straightforward integration into electrical panels.
Core technical attributes of the B84233A1500R000 include its 50A maximum current rating, its capacity to withstand line voltages up to 530V AC, and a minimal line resistance of just 1mΩ, ensuring low-loss operation for power-critical installations. With a temperature operating range of -25°C to +50°C, the filter is well suited for consistent operation in challenging industrial environments.
Installation is simplified by the filter's ‘plug-and-play’ design, requiring no external power supply and offering rapid mounting. Its IEC 60068-1 compliance attests to its quality and manufacturing integrity. Typical use cases include industrial motor drives, machine tools, pumps, compressors, and transport or conveyance systems where controlled earth leakage is necessary for proper RCD functioning and safe, uninterrupted operation.
For buyers seeking a reliable EMC filtering solution for modern automated plants, process lines, or high-frequency equipment, the TDK B84233A1500R000 delivers safety, performance, and trouble-free compatibility with international standards.
Explore more in Terminal Blocks and related power filtering solutions by TDK and other leading brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EMC filter has a maximum current rating of 50A.
It can withstand line voltages up to 530V AC.
This model supports an operating frequency of 30kHz.
The filter features a minimal line resistance of 1mΩ, which helps minimize power loss.
The filter measures 270mm in length, 120mm in height, and 60mm in depth.
It operates effectively within a temperature range of -25°C to 50°C.
The TDK B84233A1500R000 uses a terminal block termination style for secure connections.
Yes, it complies with the IEC 60068-1 standard for durability.
It is suitable for use in industrial motor drives, machine tools, pumps, compressors, and transport systems where controlled earth leakage is necessary.
It mitigates earth leakage currents, maintaining compatibility with sensitive residual current devices (RCDs) and reducing nuisance tripping.
The filter is manufactured in Hungary.
This model belongs to the B84233A series.
