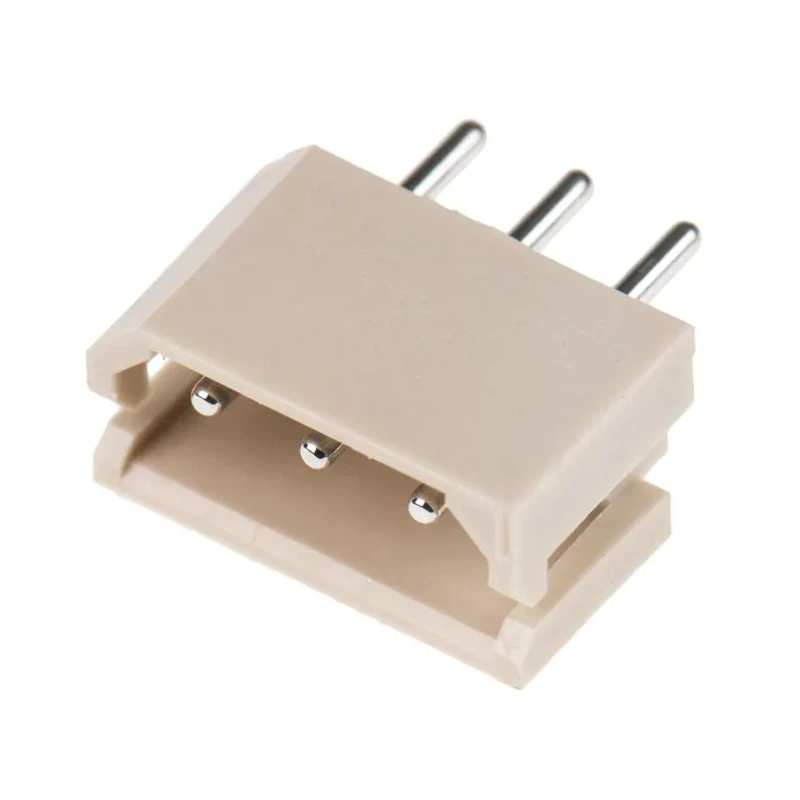

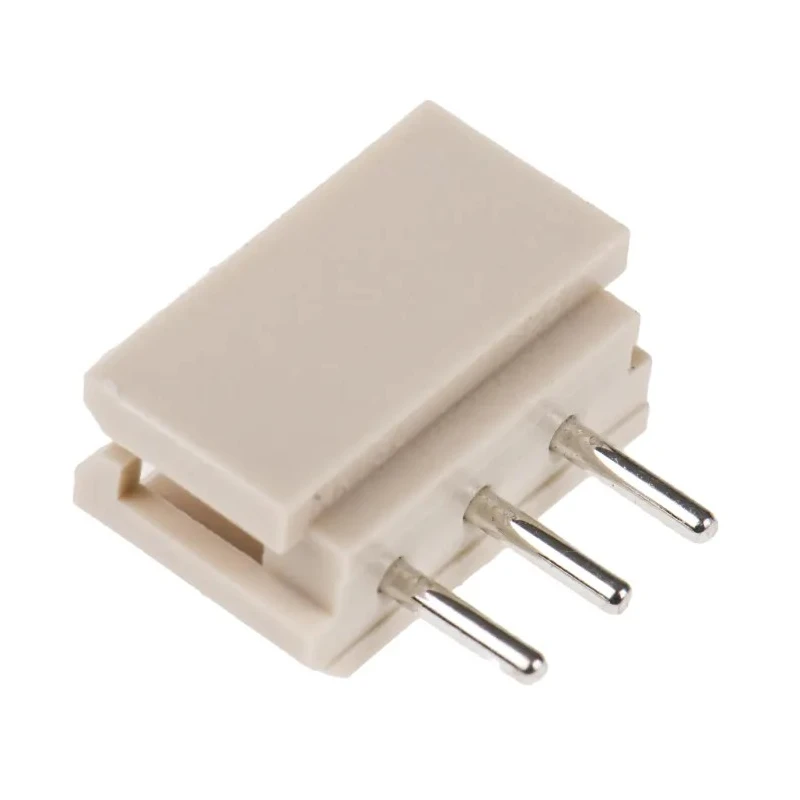

Molex SPOX Series Straight Through Hole Shrouded PCB Header 3 Contacts 2.5 mm Pitch 1 Row 250 V 3A 22-03-5035
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | SPOX |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features a straight body orientation for effortless connectivity.
- Constructed with brass contacts plated in tin for excellent conductivity and durability.
- Through hole mounting ensures stable and secure PCB installation.
- Shrouded design provides added protection and prevents misalignment.
- Rated for a current of 3.0A and voltage of 250V suitable for moderate power electronics.
- Operates reliably in environments from -40°C to 105°C.
- Termination type is solder for a robust electrical and mechanical bond.
- Tail pin length is precisely 3.5 mm to ensure proper PCB insertion.
Product Description
Molex 22-03-5035 SPOX Series straight through hole shrouded PCB header features a 2.5 mm pitch with 3 male brass contacts plated with tin, rated for 3A current and 250 V voltage. This connector offers reliable wire-to-board signal transmission and power delivery in a single row with a straight orientation.
The shrouded housing made of durable nylon provides mechanical protection and helps prevent pin misalignment during PCB assembly. Through hole mount type allows stable and secure installation suitable for high-quality manufacturing processes.
Operating temperature range from -40°C to 105°C makes it adaptable for various industrial and electronic environments, ensuring consistent performance under thermal stresses. Tin plating on contacts improves conductivity and protection against corrosion.
This PCB header is commonly used in automation, electronics assembly, and industrial equipment applications requiring reliable connector systems and secure power transmission. The solder termination type ensures strong and durable connections on PCB boards.
Key features include a 3.5 mm tail pin length, straight contact orientation, and excellent chemical and thermal resistance provided by the nylon housing. Straight body orientation for easy connectivity. Brass contacts with tin plating for durability.
Through hole mounting for secure PCB attachment. Shrouded design to prevent misconnection. 3A current rating and 250 V voltage rating. Wide operating temperature range of -40°C to 105°C. Solder termination for robust connection.
Suitable for wire-to-board applications.
This Molex SPOX series PCB Header delivers dependable performance for electronics manufacturing and industrial automation environments, combining mechanical robustness with electrical reliability. Explore more connectors and PCB assembly components on EnvMart to streamline your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a voltage of 250V.
It has a current rating of 3A.
The contact pitch is 2.5 mm.
The termination type is solder, providing a robust electrical and mechanical bond.
The tail pin length is 3.5 mm, ensuring proper PCB insertion.
The contacts are made of brass and are plated with tin for improved conductivity and corrosion resistance.
It operates reliably in environments ranging from -40°C to 105°C.
This model features 3 male contacts.
It uses a through hole mounting type for stable and secure installation on PCBs.
The housing is made of durable nylon, providing mechanical protection and preventing pin misalignment.
Yes, it is commonly used in automation, electronics assembly, and industrial equipment applications.
The contacts have a straight body orientation for easy connectivity.
