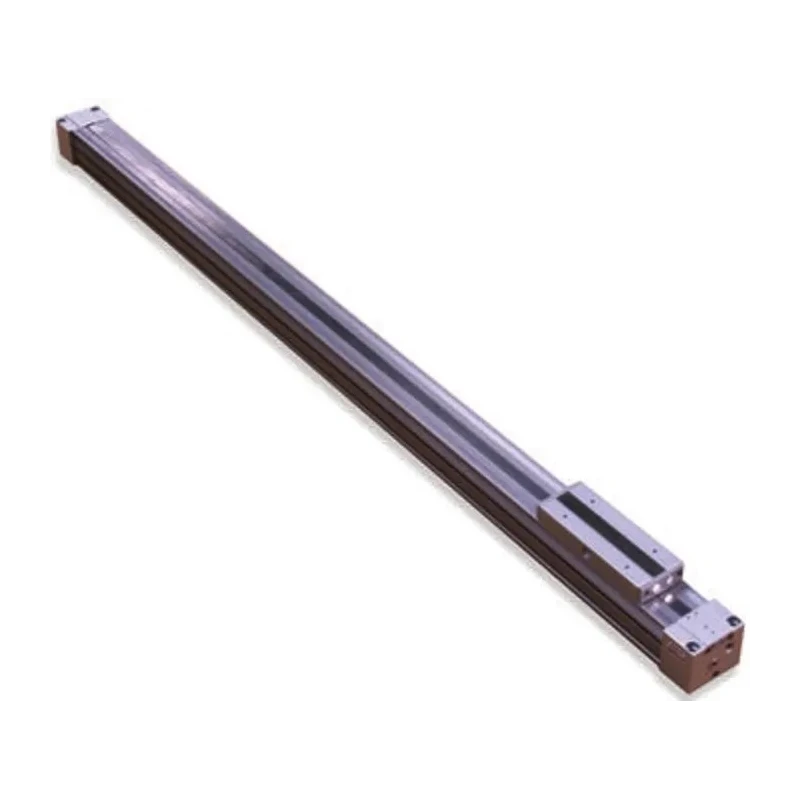

SMC Double Acting Rodless Actuator 16mm Bore 150mm Stroke Aluminium Alloy Body MY1B16G-150

SMC MY1B16G-150 is a high-quality double acting rodless actuator designed for industrial pneumatic applications requiring compact and space-saving solutions. The actuator offers a 16mm bore diameter coupled with a 150mm stroke length, making it suitable for precise linear motion control in manufacturing, automation, and fluid power systems.

The actuator's body is constructed from hard anodized aluminium alloy, enhancing corrosion resistance and mechanical robustness. Its double acting design includes a magnetic piston that allows for accurate positioning along the stroke, complemented by air cushioning to absorb impact and extend service life.

Designed primarily for horizontal mounting orientation, the actuator features female M5 x 0.8 metric port threads and a basic guide type for straightforward integration into existing pneumatic setups. It supports a maximum operating pressure of 0.8 MPa and operates efficiently within a temperature range of 5°C to 60°C.

Compact and lightweight with dimensions of 310mm length, 37mm width, and 37mm height, and weighing approximately 610 grams, this rodless actuator is ideal for applications in industrial automation, laboratory instrumentation, and mechanical fluid power equipment. It conforms to IEC standards guaranteeing quality and performance consistency.

Durable aluminium alloy body construction ensures longevity in demanding environments. Double acting action provides precise bidirectional control of the piston. Magnetic piston enables reliable position sensing for automation feedback.

Air cushioning reduces mechanical shock and operational noise for smooth function. Metric connection threads simplify installation in standard pneumatic circuits. Suitable for horizontal mounting with a basic guide type for stability.

Complies with international IEC standards for industrial pneumatic components. Compact size and light weight facilitates versatile use in tight spaces.

This SMC rodless actuator model MY1B16G-150 is recommended for various industrial uses including mechanical automation, fluid power control systems, laboratory instrumentation, and manufacturing production lines. For additional pneumatic components and actuators, explore the Industrial Tools & Equipment sections on EnvMart.
