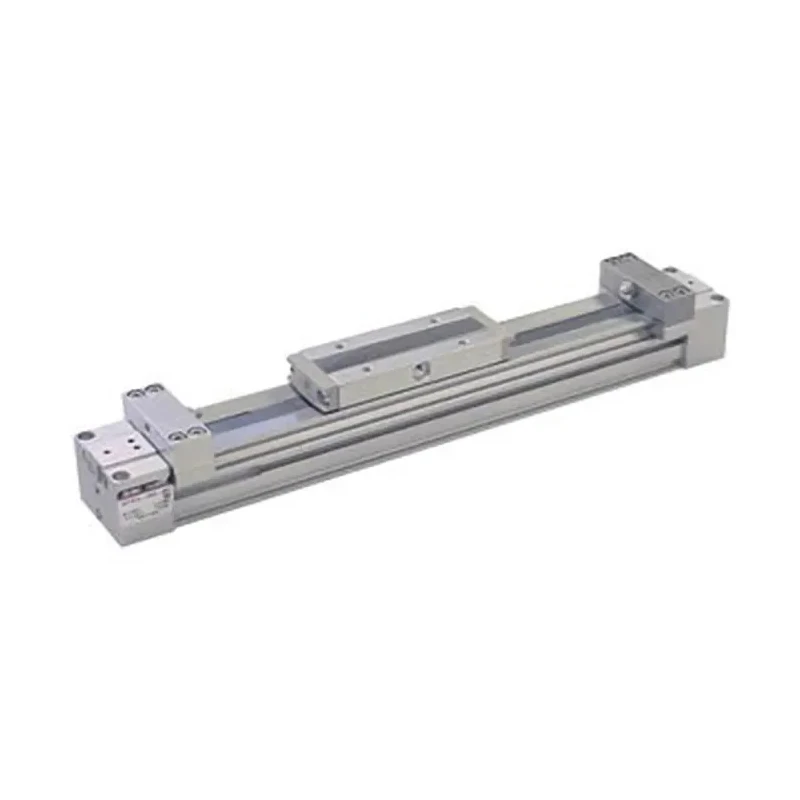

SMC Double Acting Rodless Actuator 25mm Bore 0.8 MPa Maximum Pressure 500mm Stroke Length MY1B25TFG-500Z
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 0.8 Mpa |
| Height | 54mm |
| Length | 720mm |
| Model | MY1B25TFG-500Z |
| Gross Weight | 1.3kg |
| Width | 53mm |
| Series | MY1B |
| Maximum Operating Temperature | 60°C |
| Mounting Orientation | Horizontal |
| Minimum Operating Temperature | 5°C |
| Stroke Length | 500mm |
| Bore Diameter | 25mm |
| Action Type | Double Acting |
| Standards/Approvals | IEC |
| Connection Thread Standard | BSP |
| Cushioning Type | Air Cushion |
| Guide Type | Basic |
| Port Gender | Female |
| Port Thread Size | Rc 1/4 in |
| SMC Double Acting Rodless Actuator 500mm Stroke, 25mm BoreBrand | SMC |
Key Features
- Compact and lightweight design suitable for horizontal mounting orientation.
- Equipped with air cushioning for smooth operation and extended service life.
- Supports Rc 1/4 inch female port thread size and BSP connection thread standard.
- Operates reliably within 5°C to 60°C temperature range.
- Includes magnetic piston and basic guide type for accurate positioning.
- Side support prevents cylinder tube deflection during long strokes.
- Easy adjustment of cushion needle via hexagon wrench.
- Compliance with IEC standards ensures quality and safety.
Product Description
SMC MY1B25TFG-500Z is a double acting rodless actuator featuring a 25mm bore diameter and 500mm stroke length, designed for efficient pneumatic positioning and movement in industrial applications.
This actuator operates with a maximum pressure of 0.8 MPa and is fitted with an air cushion system to provide smooth stopping and reduce impact forces, enhancing durability and reliability.
Its compact horizontal mounting design and magnetic piston offer flexibility and compact integration into assembly automation, packaging lines, and electronics manufacturing processes.
Featuring a female Rc 1/4 inch port thread size and BSP connection standard, this rodless cylinder ensures easy piping from multiple directions, increasing installation convenience.
The actuator body is equipped with a basic guide and side support to prevent tube deflection on longer strokes, maintaining positional accuracy throughout its 720mm length. The device operates reliably within a temperature range of 5°C to 60°C and complies with IEC standards, ensuring adherence to industrial safety and quality benchmarks.
Manufactured in China, this lightweight actuator weighs approximately 1.3 kg and offers a simple, reliable solution for various industrial pneumatic automation requirements. Compact and lightweight design suitable for horizontal mounting orientation.
Equipped with air cushioning for smooth operation and extended service life. Supports Rc 1/4 inch female port thread size and BSP connection thread standard. Operates reliably within 5°C to 60°C temperature range. Includes magnetic piston and basic guide type for accurate positioning.
Side support prevents cylinder tube deflection during long strokes. Easy adjustment of cushion needle via hexagon wrench. Compliance with IEC standards ensures quality and safety. Manufactured in China with a compact length of 720mm, height 54mm, and width 53mm.
This rodless actuator is ideal for pneumatic applications in industrial tools, manufacturing automation, and packaging lines where precise linear actuation and compact design are critical. For additional product options and detailed specifications, explore the Pneumatic Rodless Cylinders category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this actuator is 0.8 MPa.
This model features a stroke length of 500mm.
The bore diameter of this rodless actuator is 25mm.
The actuator has a length of 720mm, a height of 54mm, and a width of 53mm.
It operates reliably within a temperature range of 5°C to 60°C.
This model is equipped with an air cushion system for smooth operation and extended service life.
The actuator supports a Rc 1/4 inch female port thread size.
Yes, it features a compact design that is suitable for horizontal mounting orientation.
It includes a basic guide type for accurate positioning.
This actuator complies with IEC standards, ensuring adherence to industrial safety and quality benchmarks.
The gross weight of this actuator is approximately 1.3 kg.
This rodless actuator is designed for pneumatic applications in industrial tools, manufacturing automation, and packaging lines.
