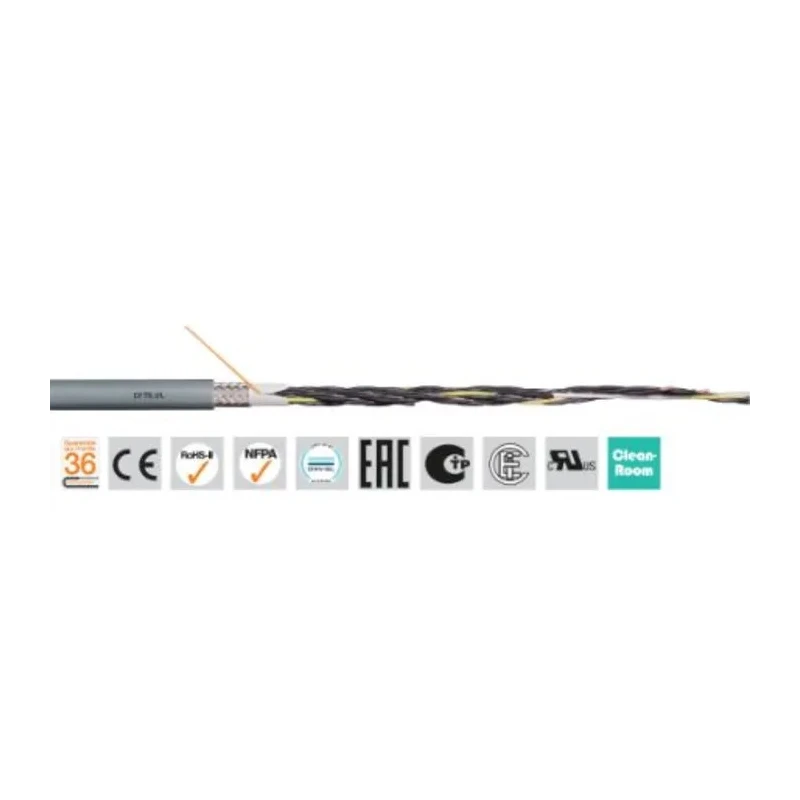

Igus chainflex CF78.UL Screened Control Cable, 12 Cores, 1.5mm² (15 AWG), 16mm Diameter, Thermoplastic CF78.UL.15.12 (50m)

Free Delivery in India | Lowest Global Shipping Charges

Igus chainflex CF78.UL Screened Control Cable, 12 Cores, 1.5mm² (15 AWG), 16mm Diameter, Thermoplastic CF78.UL.15.12 (50m)

Name: Igus chainflex CF78.UL Screened Control Cable, 12 Cores, 1.5mm² (15 AWG), 16mm Diameter, Thermoplastic CF78.UL.15.12 (50m)
Brand: IGUS
SKU: 109020
Price: 46.33 USD
Availability: InStock



Category Control Cable Brand IGUS Condition New

Specifications

Country of Origin	Germany
Voltage	300, 500V
Brand	Igus
Model	CF78.UL.15.12 (50m)
Cable Length	50m
Series	chainflex CF78.UL
Outside diameter	16mm
Maximum Operating Temperature	80°C
Number Of Cores	12
Conductor Material	Copper
Minimum Operating Temperature	-50°C
Jacket Material	Thermoplastic Elastomer
Standards/Approvals	CE, EN
Jacket Colour	Grey
Fire Behaviour	Flame Retardant, Halogen Free
American Wire Gauge	15AWG
Screened/Unscreened	Screened
Conductor Type	Stranded
Cable CSA	1.5mm²

Key Features

Constructed with a grey thermoplastic elastomer jacket for excellent abrasion and chemical resistance.
Screened with low angled braided design to reduce EMC, EMI, and cross-talk interference.
Rated for 300/500V voltage with operating temperatures from -50°C to 80°C.
Flame retardant and halogen-free construction for enhanced safety standards.
Suitable for dynamic applications such as e-chains, machinery, packaging, and refrigeration.
Oil resistant Class 4 jacket providing extensive protection in harsh environments.
Stranded copper conductors optimize flexibility and conductivity.

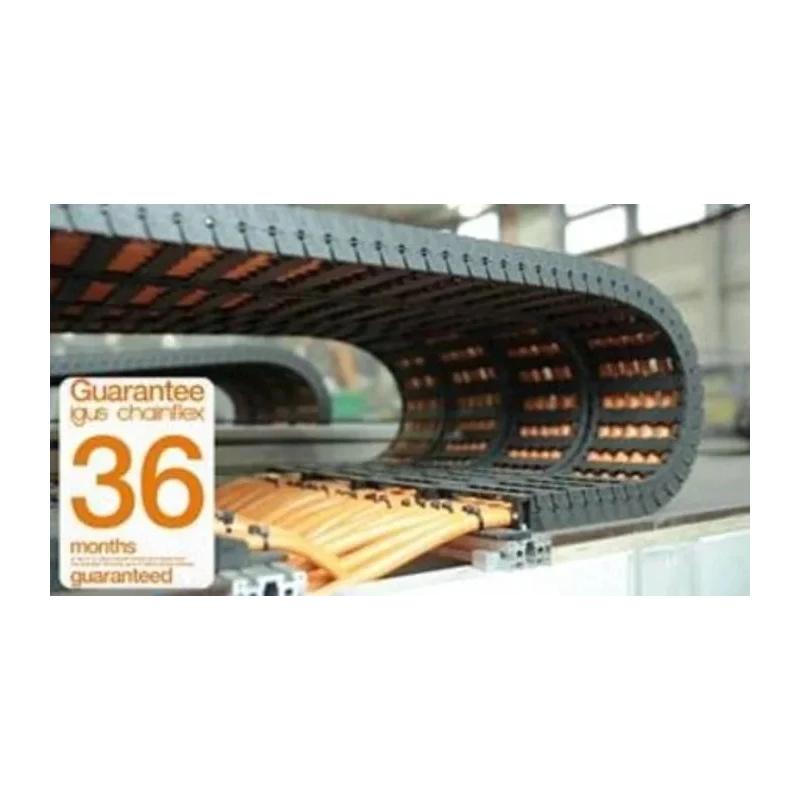

Guaranteed long service life with patented bundled core design for minimum bend radius and long travels up to 400 m in e-chains.

Product Description

Igus CF78.UL.15.12 (50m) screened control cable from Igus features a durable design with 12 copper cores, each 1.5mm² (15 AWG), enclosed in a grey thermoplastic elastomer jacket. This 50 meter cable measures 16mm in diameter and is expertly engineered for industrial control applications requiring flexibility and longevity.

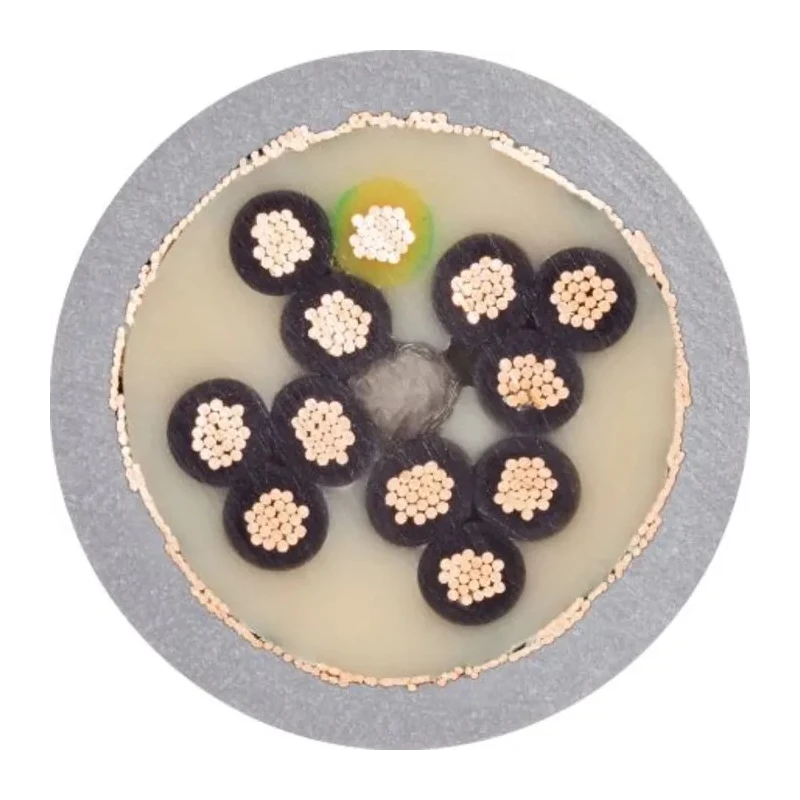

The cable's patented bundled core layout ensures a small bend radius ideal for space-saving installations and dynamic uses such as in e-chain cable carriers. Its thermoplastic elastomer sheath offers high abrasion resistance and robust protection against oils, chemicals, and bio-oils, making it suitable for demanding environments.

This screened control cable operates safely at voltages of 300 and 500 volts, withstanding temperatures ranging from -50°C up to 80°C, making it versatile for indoor and outdoor machine tools, storage and retrieval units, high-bay warehousing, packaging, rapid handling, and refrigeration sectors.

Designed to minimize electromagnetic interference, the cable has a low-angled braided screen providing excellent shielding against EMC and EMI, ensuring reliable signal integrity. Its fire behavior complies with flame retardant and halogen-free standards (IEC 60332-1-2, CEI 20-35, FT1, VW1), adding safety in industrial settings.

Compatible with UL/CSA styles 11323 and 21223 and conforming to NFPA 79-2018, this cable is also certified RoHS-II lead-free and suitable for clean rooms up to ISO Class 1 requirements. Its oil resistant Class 4 jacket follows DIN EN 50363-4-1 standards, enhancing durability in chemical and oily conditions.

Constructed with a thermoplastic elastomer jacket for high abrasion and chemical resistance. Screened with a low angled braided design optimized for dynamic applications. Rated voltage of 300/500V meeting industrial control requirements.

Wide operating temperature range from -50°C to +80°C for versatile deployment. Flame retardant and halogen-free for improved safety compliance. Patented bundled core design for extended life and reduced bend radius. Highly oil and bio-oil resistant suitable for harsh environments.

Certified to multiple international standards including CE and UL/CSA.

This Igus Control Cable guarantees a reliable lifespan when installed in industrial machinery, automation systems, packaging equipment, and HVAC applications. Its flexibility and resistance to harsh chemicals make it highly suited for demanding manufacturing and processing plants.

Browse the extensive range of electronics and electrical cables at EnvMart to find compatible industrial cables tailored for various automation, control, and power needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The cable is rated for voltages of 300V and 500V, making it suitable for various industrial control applications.

This control cable can operate safely at temperatures up to 80°C.

This model features 12 cores, each with a cross-sectional area of 1.5mm² (15 AWG).

The outside diameter of the cable is 16mm.

The cable is constructed with a grey thermoplastic elastomer jacket, providing high abrasion and chemical resistance, with stranded copper conductors for flexibility and conductivity.

Yes, it is designed for dynamic applications such as e-chains, machinery, packaging, and refrigeration.

The cable features a low-angled braided design for screening, which helps reduce electromagnetic interference (EMI) and cross-talk.

This model is certified to multiple standards including CE and complies with flame retardant and halogen-free requirements, ensuring safety in industrial environments.

The minimum operating temperature for this control cable is -50°C.

The patented bundled core design allows for a minimum bend radius and supports long travels up to 400 meters in e-chains, enhancing flexibility and longevity.

It conforms to UL/CSA styles 11323 and 21223, and NFPA 79-2018, ensuring compatibility with various industrial applications.

This model is available in a length of 50 meters.
