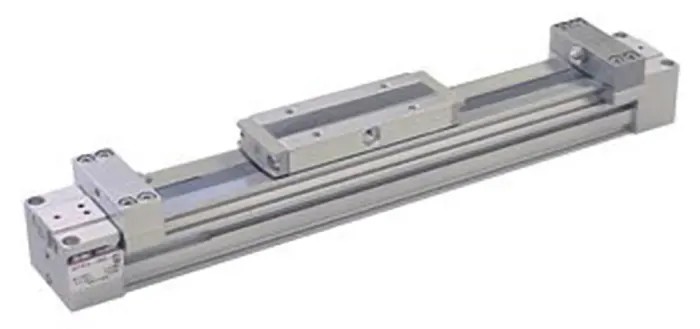

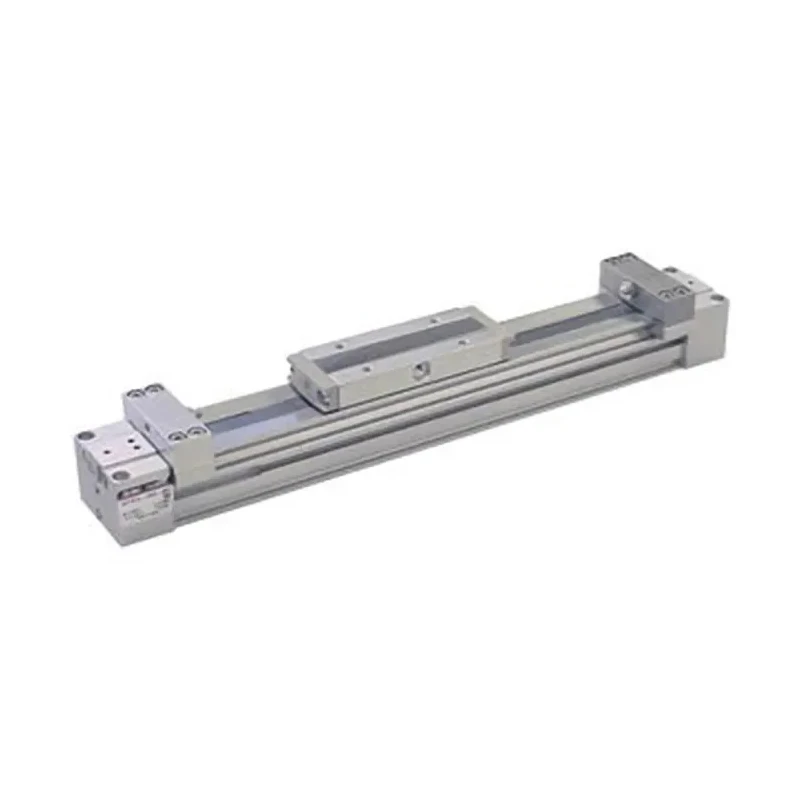

SMC Double Acting Rodless Actuator 25mm Bore 800mm Stroke MY1B25TFG-800Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 0.8 Mpa |
| Height | 54mm |
| Length | 1.02m |
| Model | MY1B25TFG-800Z |
| Gross Weight | 1.3kg |
| Width | 53mm |
| Series | MY1B |
| Maximum Operating Temperature | 60°C |
| Mounting Orientation | Horizontal |
| Minimum Operating Temperature | 5°C |
| Stroke Length | 800mm |
| Bore Diameter | 25mm |
| Action Type | Double Acting |
| Standards/Approvals | IEC |
| Connection Thread Standard | BSP |
| Cushioning Type | Air Cushion |
| Guide Type | Basic |
| Port Gender | Female |
| Port Thread Size | Rc 1/4 in |
| SMC Double Acting Rodless Actuator 800mm Stroke, 25mm BoreBrand | SMC |
Key Features
- Compact and lightweight design enhances integration flexibility.
- Double acting mechanism with air cushioning for smooth operation.
- Magnetic piston offers reliable positioning accuracy.
- Suitable for horizontal mounting orientation with basic guide type.
- Maximum operating pressure rated at 0.8 MPa.
- Operating temperature range from 5°C to 60°C.
- Mountable auto-switches in any position for ease of use.
- Connection thread standard BSP with Rc 1/4 inch port thread size.
Product Description
The SMC MY1B25TFG-800Z Double Acting Rodless Actuator offers a compact and efficient solution for precise linear motion in industrial settings.
This actuator features a 25mm bore diameter and an 800mm stroke length, making it suitable for a wide range of fluid power applications, including assembly automation, packaging lines, and electronics production.
Designed with a double acting mechanism and air cushioning, it ensures smooth operations while reducing mechanical impacts. The integrated magnetic piston provides superior positioning accuracy and repeatability.
Constructed for horizontal mounting with a basic guide type, this model supports connection thread standards of BSP with Rc 1/4 inch port size. It operates reliably across a broad temperature range from 5°C to 60°C and withstands maximum operating pressures up to 0.8 MPa.
Further benefits include its compact design that is up to 17% lighter than previous models, flexible auto-switch mountability, four-direction piping connection capability, and easy cushion needle adjustment through a hexagon wrench.
The actuator’s side support prevents cylinder tube deflection at longer strokes, and enhanced dust seals use magnetic attraction to improve service life. A floating bracket connection simplifies installation tasks.
Compact design for ease of integration and space-saving installation. Double acting air cushioning ensures smooth, quiet operation. Magnetic piston for precise and reliable positioning. Flexible auto-switch mounting and multi-directional piping connection.
Durable construction compliant with IEC standards for industrial reliability. This product is ideal for industrial automation, pneumatic systems, manufacturing processes, and other commercial applications requiring robust and precise linear actuators.
Explore more industrial-grade pneumatic actuators and components in our comprehensive Pneumatic Rodless Cylinders category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this actuator is 25mm.
The stroke length of the MY1B25TFG-800Z is 800mm.
The maximum operating pressure is rated at 0.8 MPa.
It operates within a temperature range of 5°C to 60°C.
This model features air cushioning for smooth operation.
The connection thread standard is BSP with an Rc 1/4 inch port thread size.
The actuator has a height of 54mm, a width of 53mm, and a length of 1.02m.
This actuator is designed for horizontal mounting orientation.
It provides a double acting mechanism.
The gross weight of this actuator is 1.3kg.
The actuator complies with IEC standards for industrial reliability.
This actuator is suitable for applications in assembly automation, packaging lines, and electronics production.
