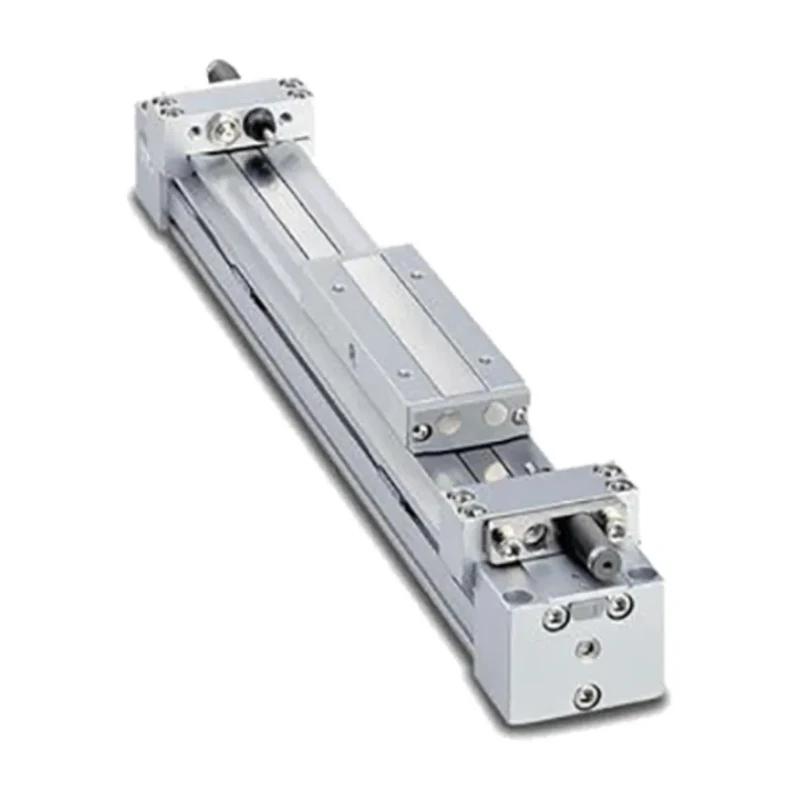

SMC Double Acting Rodless Actuator 25mm Bore 600mm Stroke, BSP Connection, Horizontal Mounting MY1B25TFG-600Z

SMC MY1B25TFG-600Z Double Acting Rodless Actuator with a 25mm bore diameter and 600mm stroke length is engineered for pneumatic automation requiring precise linear motion with compact size and integrated guide system. This rodless actuator belongs to the MY1B series, ideal for applications demanding long strokes with reliable performance.

The actuator features a double acting action type, ensuring control in both extension and retraction strokes, enhanced by air cushioning to reduce impact and wear.

Its BSP connection thread and Rc 1/4 inch port thread size with female port gender enable compatibility with common pneumatic fittings. Operational pressure ranges up to 0.8 Mpa, allowing usage in typical industrial pneumatic systems.

Designed for horizontal mounting, this actuator supports operating temperatures between 5°C and 60°C, suitable for diverse industrial environments. The basic guide type ensures stable rodless motion along the 820mm length dimension, with compact overall height and width for efficient space utilization.

Measuring 54mm in height and 53mm in width, and weighing 1.3kg, this actuator offers a balance of compactness and durability. It complies with IEC standards, further assuring quality and consistency for industrial applications.

The MY1 series includes a variety of bore sizes and stroke lengths up to 2000mm, providing solutions to specific accuracy and load requirements through different bearing styles. This model expands the utility range, supporting automation in manufacturing, machinery, assembly lines, and fluid power systems.

This rodless actuator features a double acting action type for precise control. Connection thread standard is BSP with Rc 1/4 inch port thread size and female port gender. Operates within a pressure range up to a maximum of 0.8 Mpa.

Mounting orientation is horizontal with air cushioning type for smooth operation. Suitable for operating temperatures from 5°C to 60°C for diverse environments. The actuator guide is a basic type with series MY1B for standard configurations.

Compact dimensions of 820mm length, 54mm height, and 53mm width ensure space-saving installation. Weighs approximately 1.3kg, making it manageable in various settings. Meets IEC standards and is manufactured in China.

This actuator is a reliable choice for industrial and pneumatic automation needs, providing efficiency and long service life. Explore additional products in the pneumatic rodless cylinder category for matched application solutions on EnvMart.
