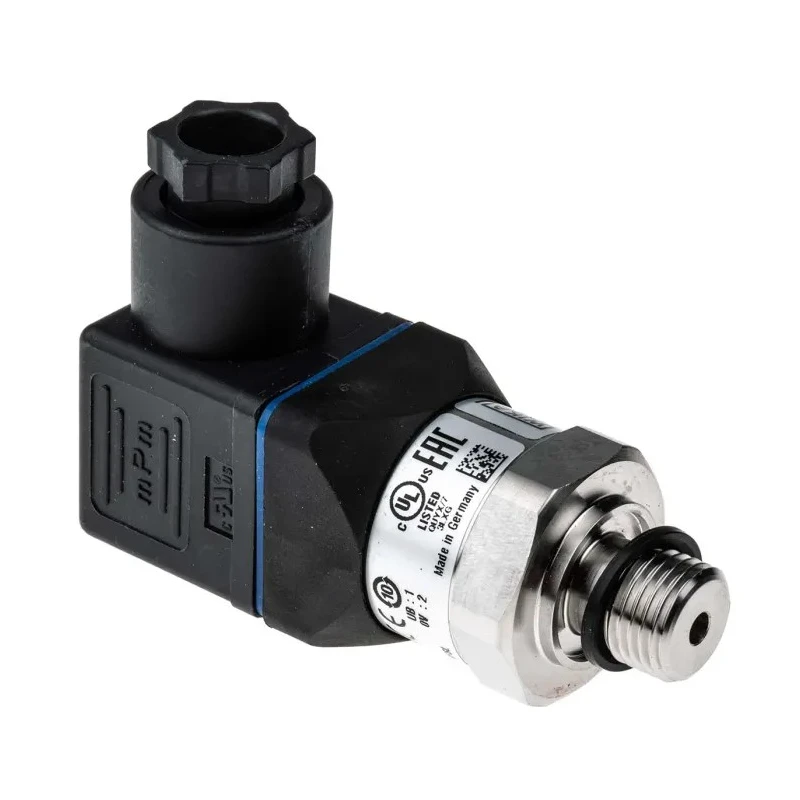

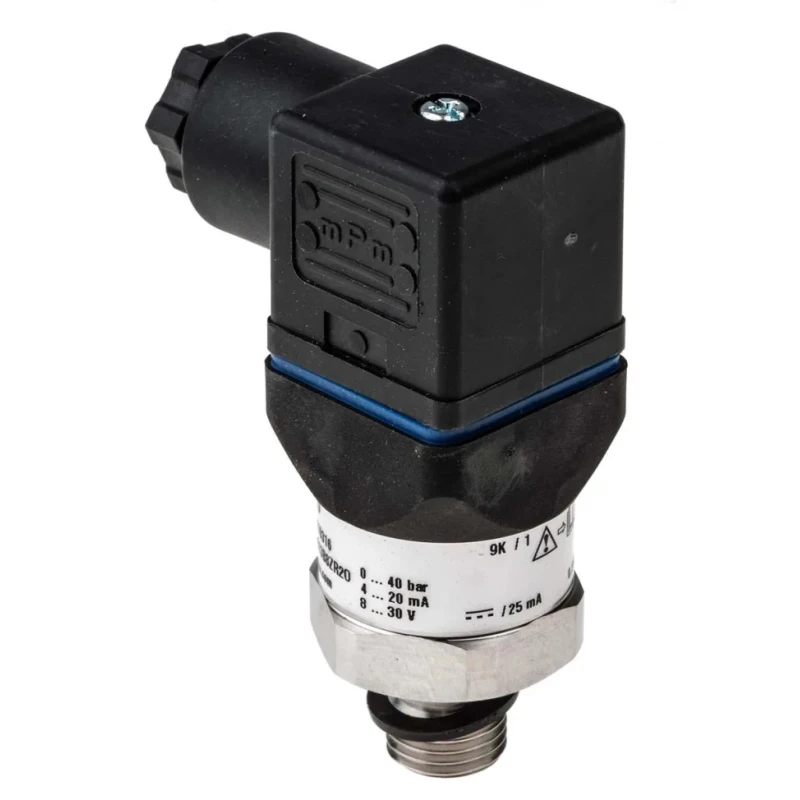

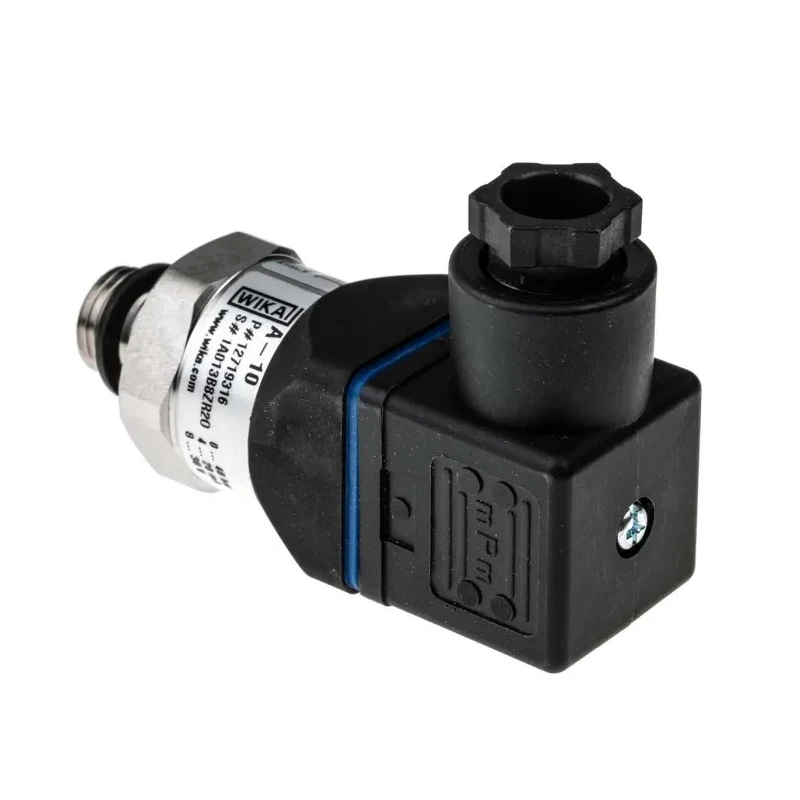

WIKA A-10 Series Pressure Sensor Current Output 0 bar to 40 bar Relative Reading 12719316
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | 0.5 %FS |
| Brand | WIKA |
| Model | 12719316 |
| IP Rating | IP67 |
| Housing Material | Stainless Steel |
| Output type | Current |
| Series | A-10 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | DIN EN 175301-803 A, DIN 3852-E |
| Maximum Pressure Measurement | 40bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 3V |
| Minimum Supply Voltage | 8V |
| Pressure Reading Type | Relative |
| Media Measured | Hydraulic Fluid |
| Electrical Output | 4 to 20mA 2 wire |
Key Features
- The sensor uses a piezoresistive sensor element for pressure ranges up to 10 bar.
- Thin film strain gauge technology enables measurement up to 600 bar pressure ranges.
- Output signal is a 4 to 20mA current in a 2-wire configuration.
- Operating temperature range is 0°C to 80°C with IP67 rated stainless steel housing.
- Complies with DIN EN 175301-803 A and DIN 3852-E standards for industrial applications.
- Compact design suits hydraulic applications requiring integrated pressure measurement.
- Relative pressure measurement type suitable for various industrial fluid monitoring systems.
- Supplied voltage range spans minimum 8V and maximum 3V supply voltage requirements.
Product Description
WIKA 12719316 Pressure Sensor from the A-10 Series is a compact, high-precision instrument intended for measuring relative pressure in hydraulic fluid systems. It operates within a pressure range from 0 bar minimum up to a maximum of 40 bar and provides a current output signal designed for integration in automation and industrial control systems.
The sensor features a piezoresistive sensing element for accurate pressure evaluation at ranges up to 10 bar. For higher ranges up to 600 bar, thin film strain gauge technology is employed, ensuring durability and precision. The electrical output is standardized as a 4 to 20mA current, transmitting signals via a 2-wire configuration suited for robust industrial environments.
Encased in a stainless steel housing with an IP67 rating, this sensor is resistant to dust and water ingress, making it ideal for harsh industrial conditions. It complies with recognized industrial standards DIN EN 175301-803 A and DIN 3852-E, ensuring high reliability and compatibility with standard fittings and interfaces.
The operating temperature range from 0°C to 80°C allows for versatile installation in diverse environments, including hydraulic and pneumatic tool applications, water treatment systems, manufacturing processes, and heavy machinery monitoring. Its compact size facilitates easy integration with existing automation and control gear.
The sensor uses a piezoresistive sensor element for pressure ranges up to 10 bar. Thin film strain gauge technology enables measurement of pressure ranges up to 600 bar. Output signal is a 4 to 20mA current in a 2-wire configuration.
Operating temperature range is 0°C to 80°C with IP67 rated stainless steel housing. Complies with DIN EN 175301-803 A and DIN 3852-E standards for industrial use. Compact design suited for hydraulic pressure measurement applications.
Relative pressure measurement type suitable for fluid monitoring systems. Minimum supply voltage 8V; maximum supply voltage 3V.
This Pressure Sensor is essential for precise industrial and laboratory pressure monitoring and control. Explore the category for more models and industrial pressure measurement solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures relative pressure from 0 bar to a maximum of 40 bar.
It provides a 4 to 20mA current output in a 2-wire configuration, suitable for industrial applications.
The accuracy of this sensor is 0.5 %FS (full scale).
The operating temperature range is from 0°C to 80°C.
It features a stainless steel housing, providing durability and resistance to environmental factors.
It complies with DIN EN 175301-803 A and DIN 3852-E standards for industrial applications.
This model is designed to measure hydraulic fluid.
It has an IP67 rating, making it resistant to dust and water ingress.
The minimum supply voltage is 8V, and the maximum supply voltage is 3V.
It uses a piezoresistive sensing element for pressure ranges up to 10 bar and thin film strain gauge technology for higher ranges.
Its compact design allows for easy integration into existing automation and control systems.
It is suitable for hydraulic applications, water treatment systems, manufacturing processes, and heavy machinery monitoring.
