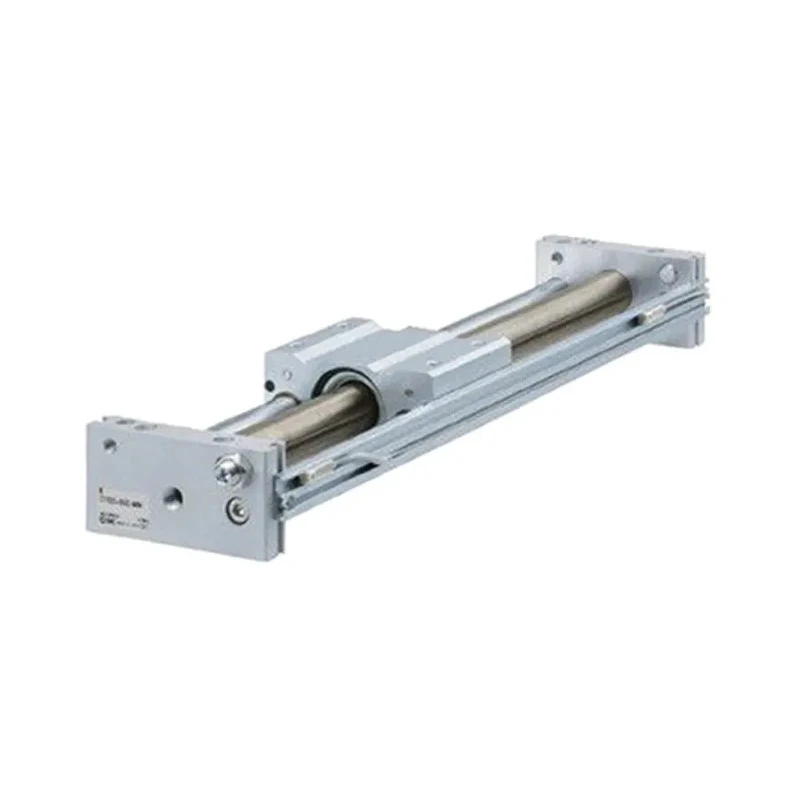

SMC Double Acting Rodless Actuator 15mm Bore 250mm Stroke CY1SG15-250Z

Free Delivery in India | Lowest Global Shipping Charges

SMC Double Acting Rodless Actuator 15mm Bore 250mm Stroke CY1SG15-250Z



Category Pneumatic Rodless Cylinders Brand SMC Condition New

Specifications

Country of Origin	Czech Republic
Brand	SMC
Maximum Operating Pressure	0.7 Mpa
Height	40mm
Length	342mm
Model	CY1SG15-250Z
Gross Weight	740g
Width	75mm
Series	CY1S
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	250mm
Bore Diameter	15mm
Action Type	Double Acting
Connection Thread Standard	Metric
Cushioning Type	Rubber
Guide Type	Slide Bearing
Port Gender	Female
Port Thread Size	M5 x 0.8
SMC Rodless Actuator 250mm Stroke, 15mm BoreBrand	SMC
SMC KQ2 Series, R 1/2 Male, Threaded-to-Tube Connection StyleBrand	SMC

Key Features

Features a 15mm bore diameter and a 250mm stroke length for medium-range actuation.
Double acting action type ensures controlled motion in both directions.
Constructed with slide bearing guides and rubber cushioning for durability and smooth operation.
Operates efficiently within a pressure range up to 0.7 MPa and temperature range from -10°C to 60°C.
Includes female M5 x 0.8 port threads compatible with metric connection standards.
Lightweight design with a gross weight of 740 grams supports ease of installation.
Dimensioned at 342mm length, 75mm width, and 40mm height for compact system integration.
Magnetic piston coupling eliminates seal leakage and enhances reliability under high load conditions.

Product Description

SMC CY1SG15-250Z Double Acting Rodless Actuator offers precise pneumatic linear motion with a 15mm bore diameter and 250mm stroke length, suitable for a wide range of industrial and automation applications.

This actuator features a double acting mechanism, providing controlled force and speed in both extension and retraction strokes. The internal piston magnetically couples with the carriage, eliminating the need for seals and thereby preventing leakage, ensuring long-term reliability and reduced maintenance.

The actuator incorporates rubber cushioning, which absorbs impact and reduces noise, while slide bearing guides provide accurate linear travel and durability under repetitive motion cycles.

Designed to operate within a maximum pressure of 0.7 MPa and stable temperature ranges from -10°C to 60°C, it is suitable for varied environmental conditions in pneumatic automation setups.

Compact dimensions of 342mm length, 75mm width, and 40mm height, along with a lightweight of 740 grams, facilitate easy integration into manufacturing, packaging, assembly lines, and robotic applications.

The actuator ports are metric standard female threads (M5 x 0.8), ensuring compatibility with standard pneumatic fittings and connections. Features a 15mm bore diameter and 250mm stroke length. Double acting pneumatic rodless actuator design.

Rubber cushioning reduces vibration and noise. Slide bearing guide type for precision and durability. Maximum operating pressure of 0.7 MPa. Operates in temperatures from -10°C to 60°C. Lightweight at 740 grams for easy installation.

Metric standard connection with female M5 x 0.8 port thread size. Magnetic piston coupling eliminates seal leakage. Manufactured in Czech Republic to high standards.

This pneumatic rodless actuator is ideal for industrial automation, fluid power systems, manufacturing, and laboratory equipment requiring controlled linear motion without leakage risks. Explore more SMC pneumatic solutions at EnvMart for reliable pneumatic components.
