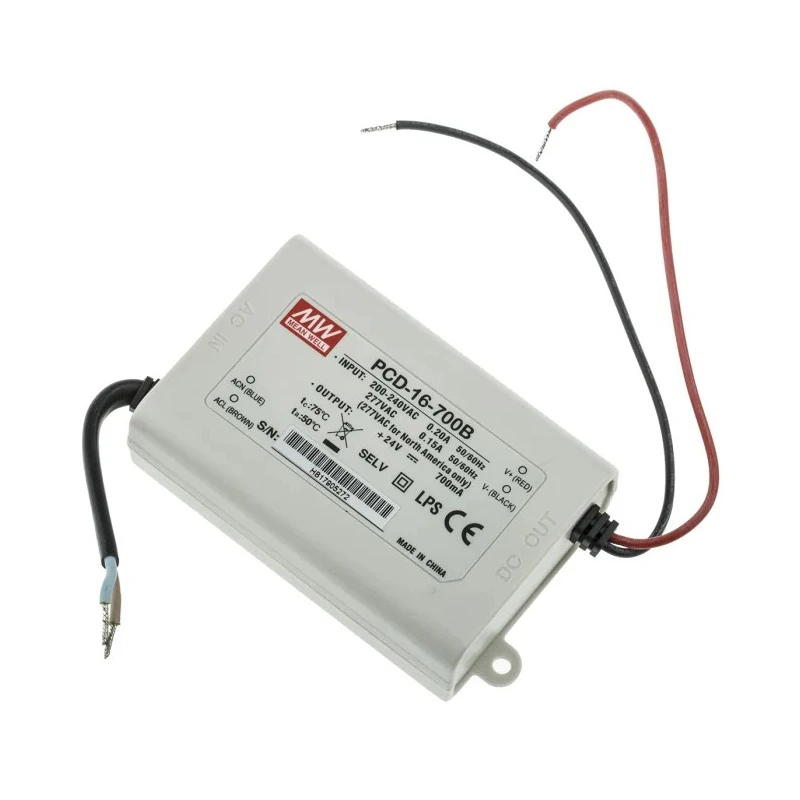

MEAN WELL IP42 5 Output Enclosed Constant Current LED Driver 16V, 24V, 16.8W, 700mA

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL IP42 5 Output Enclosed Constant Current LED Driver 16V, 24V, 16.8W, 700mA

Name: MEAN WELL IP42 5 Output Enclosed Constant Current LED Driver 16V, 24V, 16.8W, 700mA
Brand: MEAN WELL
SKU: 223574
Price: 20.22 USD
Availability: InStock



Category LED Lighting Components Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	IP42
IP Rating	IP42
Mount Type	Screw
Series	PCD-16
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Current
Number of outputs	5
Terminal type	Wire
Maximum Output Power	16.8W
Input Voltage	180, 295V ac
Output Voltage	16, 24V
Power Dissipation	16.8W
Standards/Approvals	TUV, SELV, ENEC, CSA, CE, UL
Primary Type	AC-AC
Driver Current	700mA
LED Voltage	180, 295V ac
16W versions	Derate output above 50°C operating temperature
25W versions	Derate output above 40°C operating temperature

Key Features

Supports 5 output channels with constant current operation.
Operates at input voltage range of 180 to 295V AC.
Output voltage ranges between 16V and 24V suitable for LED modules.
Equipped with IP42 rated fully enclosed plastic case providing protection for indoor use.
Features built-in active Power Factor Correction (PFC) for improved efficiency.
Compatible with both leading and trailing edge AC phase-cut dimmers.
Complies with multiple international standards such as TUV, SELV, ENEC, CSA, CE, and UL.
Designed for free air convection cooling without the need for fans.

Product Description

MEAN WELL PCD-16-700B IP42 is a 16W constant current dimmable LED driver designed for indoor LED lighting applications requiring reliable multi-output operation.

This LED driver offers 5 output channels delivering a regulated current of 700mA at output voltages ranging from 16 to 24V and a maximum output power of 16.8W. The unit supports wide input AC voltage ranging from 180 to 295V, making it compatible with diverse power environments.

It features a fully enclosed plastic case that meets the IP42 rating standards, providing protection against solid objects while enabling free air convection cooling without fans. The driver is equipped with active power factor correction (PFC) that enhances power efficiency and reduces harmonic currents.

Designed to work with both leading-edge and trailing-edge phase cut dimmers, it delivers smooth dimming performance. Safety features include short circuit, overload, and over temperature protections, ensuring stable operation even under adverse conditions. Compliance with major international certifications such as TUV, SELV, ENEC, CSA, CE, and UL affirms its quality and safety for commercial and industrial environments.

This product is part of the MEAN WELL PCD-16 series, recognized for low cost and high reliability LED drivers suitable for indoor lighting in industrial, commercial, and architectural applications.

Supports 5 output channels with constant current operation. Operates at input voltage range of 180 to 295V AC. Output voltage ranges between 16V and 24V suitable for LED modules. Equipped with IP42 rated fully enclosed plastic case providing protection for indoor use.

Features built-in active Power Factor Correction (PFC) for improved efficiency. Compatible with both leading and trailing edge AC phase-cut dimmers. Includes multiple protections: short circuit, overload, and over temperature.

Complies with multiple international standards such as TUV, SELV, ENEC, CSA, CE, and UL. Designed for free air convection cooling without the need for fans. Suitable for industrial use with high reliability and durability.
