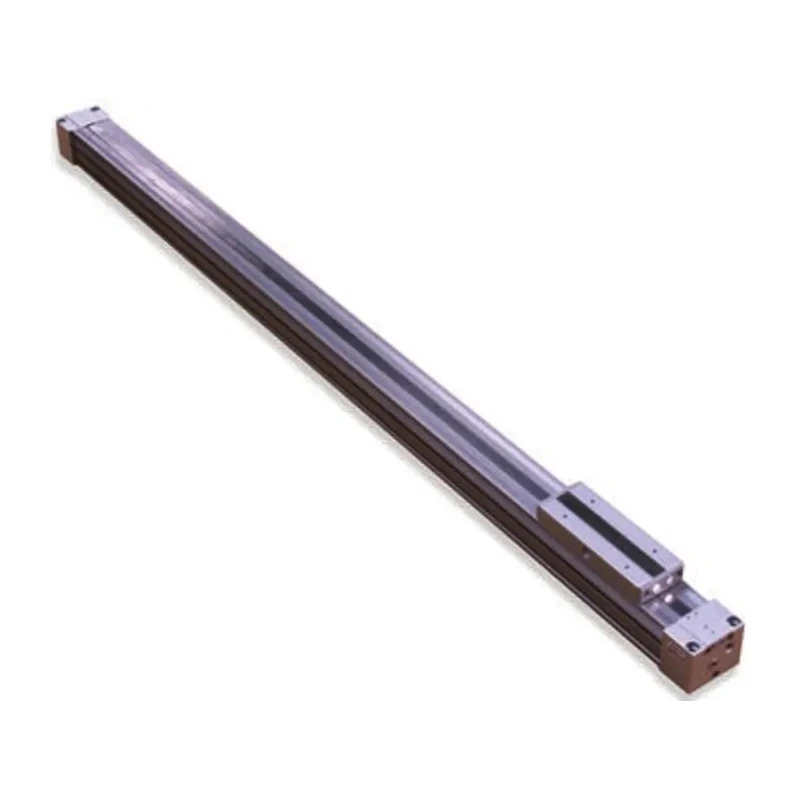

SMC Double Acting Rodless Actuator 16mm Bore 200mm Stroke Aluminium Alloy Body MY1B16G-200

Free Delivery in India | Lowest Global Shipping Charges

SMC Double Acting Rodless Actuator 16mm Bore 200mm Stroke Aluminium Alloy Body MY1B16G-200



Category Pneumatic Rodless Cylinders Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	0.8 Mpa
Height	37mm
Length	360mm
Model	MY1B16G-200
Gross Weight	610g
Width	37mm
Series	MY1
Maximum Operating Temperature	60°C
Mounting Orientation	Horizontal
Minimum Operating Temperature	5°C
Stroke Length	200mm
Bore Diameter	16mm
Action Type	Double Acting
Standards/Approvals	IEC
Connection Thread Standard	Metric
Cushioning Type	Air Cushion
Guide Type	Basic
Port Gender	Female
Port Thread Size	M5 x 0.8

Key Features

The actuator features an aluminium alloy body for enhanced strength and corrosion resistance.
It operates with a maximum pressure of 0.8 Mpa, suitable for various industrial applications.
Equipped with air cushioning and magnetic sensing for smooth and precise operation.
Designed for horizontal mounting orientation with basic guide type for stability.
The product supports a temperature range of 5°C to 60°C for versatile environmental usage.
Port thread size is M5 x 0.8 with female port gender for standard connectivity.
Complies with IEC standards ensuring quality and reliability.

Product Description

SMC MY1B16G-200 double acting rodless actuator is engineered to deliver reliable linear motion with a 16mm bore diameter and a 200mm stroke length. The aluminium alloy body construction ensures durability and strength, making it suitable for demanding pneumatic systems.

This actuator operates efficiently at a maximum pressure of 0.8 Mpa and is designed for horizontal mounting orientation. It features air cushioning to reduce impact forces and magnetic sensing for precise position detection.

The unit supports a temperature operating range from 5°C to 60°C, allowing broad application versatility. The port configuration includes female ports with an M5 x 0.8 thread size, adhering to metric connection standards.

With dimensions measuring 360mm in length and 37mm in both width and height, the actuator occupies minimal space while delivering robust performance. The gross weight is 610 grams, providing a lightweight yet sturdy pneumatic actuator solution.

Compliant with IEC standards, this rodless actuator is ideal for industrial automation, manufacturing, fluid power systems, and mechanical engineering applications requiring compact linear actuation.

The actuator body is made of anodized aluminium alloy for corrosion resistance. Double acting operation with magnetic piston for precise sensing. Adjustable air cushioning ensures smooth end-of-stroke damping. Compact design enables space-saving installation in pneumatic circuits.

Supports use in industrial, automation, and mechanical system integrations. Basic guide type provides reliable support for the piston. Horizontal mounting orientation optimized for common industrial setups. Explore our Pneumatic Rodless Cylinders category for compatible accessories and additional actuator options.
