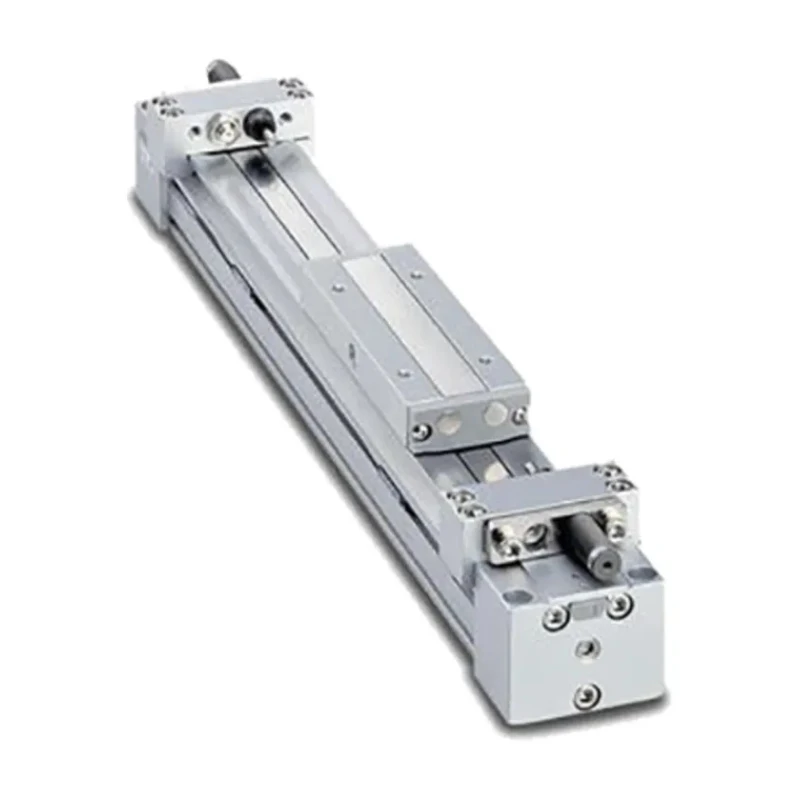

SMC Double Acting Rodless Actuator 40mm Bore 800mm Stroke MY1B40TFG-800Z

SMC MY1B40TFG-800Z Double Acting Rodless Actuator is engineered for industrial pneumatic applications requiring precise linear movement with long stroke lengths in confined spaces.

This rodless actuator features a 40mm bore and an 800mm stroke length, allowing it to deliver reliable force over extended distances without the bulk of traditional cylinders. The double acting design uses air pressure to drive movement in both directions and is equipped with air cushions to reduce impact and vibration at stroke ends, ensuring smooth operation.

Designed for horizontal mounting, the actuator includes a basic guide type that provides stability and accuracy throughout its stroke. Its connection ports are female BSP threads sized Rc 1/4 inch, facilitating easy integration into existing pneumatic setups.

Operating effectively across temperatures from 5°C to 60°C, this actuator complies with IEC standards, ensuring safety and performance in demanding industrial environments.

With dimensions of 75mm width, 84mm height, and 1.14 meters length, and a gross weight of approximately 3.9 kg, the unit combines compactness with manageable weight for versatile use.

This product is part of the trusted SMC MY1 series, widely used in manufacturing, automation, assembly lines, and fluid power applications, providing reliable linear actuation. Compact rodless design ideal for long strokes and space-efficient applications.

Double acting action type with air cushioning for smooth operation. Maximum operating pressure up to 0.8 MPa ensures reliable pneumatic force. Includes Rc 1/4 inch female BSP threaded ports compatible with standard pneumatic systems.

Temperature range from 5°C to 60°C supports varied industrial environments. Horizontal mounting orientation with basic guide type for stable motion control. Complies with IEC standards for quality and safety assurance. Robust construction with 75mm width, 84mm height, and 1.14m length dimensions.

Lightweight actuator with gross weight approximately 3.9 kg for easy integration. Made in Japan with proven SMC MY1 series technology for high durability. Explore comprehensive pneumatic and hydraulic solutions in the Industrial Tools & Equipment category at EnvMart for your automation and fluid power needs.
