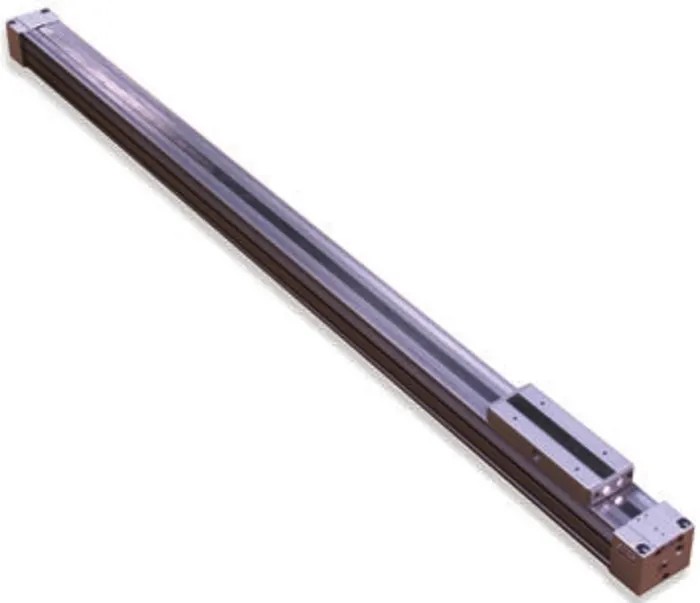

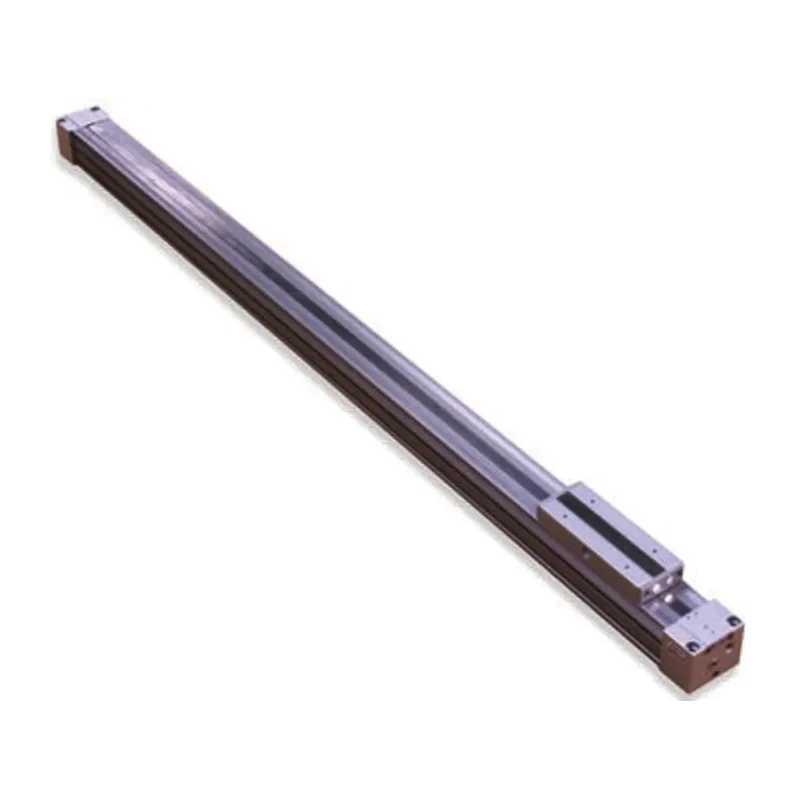

SMC Double Acting Rodless Actuator 20mm Bore 200mm Stroke MY1B20G-200

Free Delivery in India | Lowest Global Shipping Charges

SMC Double Acting Rodless Actuator 20mm Bore 200mm Stroke MY1B20G-200



Category Pneumatic Rodless Cylinders Brand SMC Condition New

Specifications

Country of Origin	France
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	0.8 Mpa
Height	46mm
Length	400mm
Model	MY1B20G-200
Gross Weight	1.1kg
Width	45mm
Series	MY1
Maximum Operating Temperature	60°C
Mounting Orientation	Horizontal
Minimum Operating Temperature	5°C
Stroke Length	200mm
Bore Diameter	20mm
Action Type	Double Acting
Standards/Approvals	IEC
Connection Thread Standard	Metric
Cushioning Type	Air Cushion
Guide Type	Basic
Port Gender	Female
Port Thread Size	M5 x 0.8

Key Features

Double acting pneumatic rodless actuator for precise linear motion.
20mm bore diameter with 200mm stroke length.
Aluminium alloy body ensures a lightweight and durable construction.
Air cushioning for smooth operation and reduced impact.
Maximum operating pressure of 0.8 Mpa suitable for industrial automation.
Magnetic piston standard for reliable sensing applications.
Horizontal mounting orientation for versatile installation.
Operating temperature ranges between 5°C and 60°C ensuring operational stability.

Product Description

SMC MY1B20G-200 is a high-quality double acting rodless actuator designed for pneumatic applications requiring precise and space-saving linear motion. Featuring a 20mm bore diameter and 200mm stroke length, it combines a robust aluminium alloy body with a hard anodized finish that enhances durability and resistance to wear. The actuator operates at a maximum pressure of 0.8 Mpa with an air cushion system to ensure smooth operation and minimal impact during the stroke cycle.

This rodless cylinder includes a magnetic piston as standard for accurate position sensing and quick integration with magnetic sensors, making it ideal for automation and industrial control systems across manufacturing, material handling, and assembly lines.

With a horizontal mounting orientation and compact dimensions of 400 mm in length, 45 mm width, and 46 mm height, the MY1B20G-200 is engineered to be space-efficient while maintaining performance. It supports a working temperature range from 5°C to 60°C, suitable for typical industrial environments.

The actuator has standard metric threaded ports (M5 x 0.8) with female port gender configuration, facilitating easy installation and connection. Its weight of 1.1 kg makes it lightweight for enhanced flexibility in various applications where weight and space constraints matter.

Double acting pneumatic rodless actuator for precise linear motion. 20mm bore diameter with 200mm stroke length. Aluminium alloy body for lightweight and robust construction. Air cushioning reduces impact and noise during operation.

Maximum operating pressure of 0.8 Mpa for effective pneumatic power. Magnetic piston allows for reliable position sensing integration. Horizontal mounting orientation enables versatile setup options. Operating temperature range from 5°C to 60°C ensures durable performance.

Standard metric thread connections with M5 x 0.8 port size. Compact size and light weight (1.1 kg) for space saving applications.

Ideal for industrial automation, pneumatic control systems, manufacturing machinery, assembly lines, packaging, and lab automation requiring efficient and reliable pneumatic actuators. Explore more Pneumatic Rodless Cylinders and pneumatic components from SMC at EnvMart for your application needs.
