FTDI Chip TTL to USB Serial Converter Cable for FPGA, PLD, Microcontroller UART TTL-232RG-VIP-WE

Free Delivery in India | Lowest Global Shipping Charges

FTDI Chip TTL to USB Serial Converter Cable for FPGA, PLD, Microcontroller UART TTL-232RG-VIP-WE

Name: FTDI Chip TTL to USB Serial Converter Cable for FPGA, PLD, Microcontroller UART TTL-232RG-VIP-WE
Brand: FTDI Chip
SKU: 219501
Price: 40.56 USD
Availability: InStock



Category Cable Converter Brand FTDI Chip Condition New

Specifications

Country of Origin	China
Brand	FTDI Chip
Model	TTL-232RG-VIP-WE
Interfaces	USB bandwidth consumption
Accessory Type	TTL to USB Serial Converter Generic Cable
For Use With	FPGA/PLD, Microcontroller UART, FTDI VDRIVE2 Or VMUSIC2 Modules, I/O Pins
Standards/Approvals	RoHS, CE, FCC

Key Features

The cable connects directly to microcontroller UART or I/O pins with TTL voltage levels supplied.

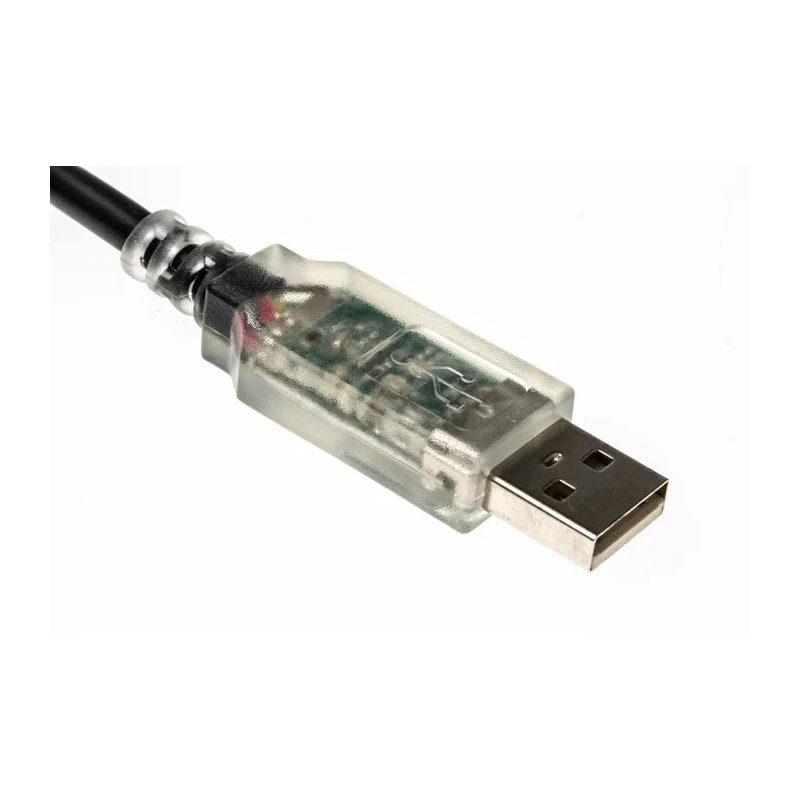

It utilizes an internal FT232R chip inside the USB connector for fast and simple interfacing.
Supports data transfer rates up to 3 Mbps with low USB bandwidth consumption.
Includes internal EEPROM with user-writeable area for configuration.
Operates over a temperature range of -40°C to 85°C for industrial environments.
Provides USB 2.0 full-speed compatibility and supports various logic levels as per customer interface.

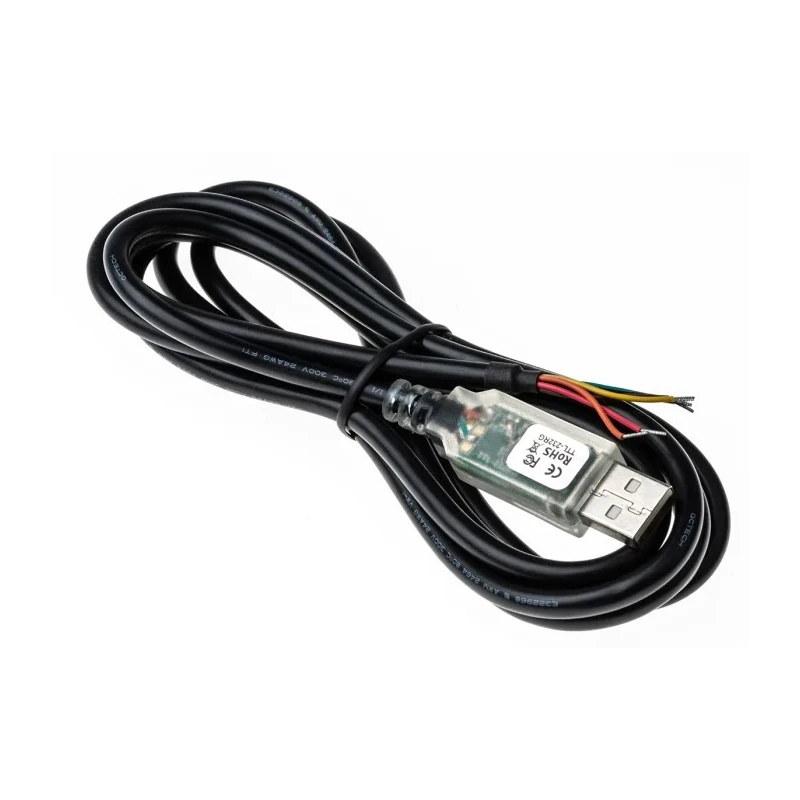

Cable length is approximately 1.8 meters with 24AWG gauge and 5mm diameter.
Compatible with Windows, Mac, and Linux via WHQL certified VCP drivers.

Product Description

FTDI Chip TTL-232RG-VIP-WE is a TTL to USB serial converter cable designed for seamless connection between USB ports and TTL level serial interfaces used in FPGA, PLD, and microcontroller UART systems. Integrating an FT232R chip encapsulated inside the USB connector, the cable provides a robust and efficient interface to convert USB signals to UART signals for embedded systems and development tools.

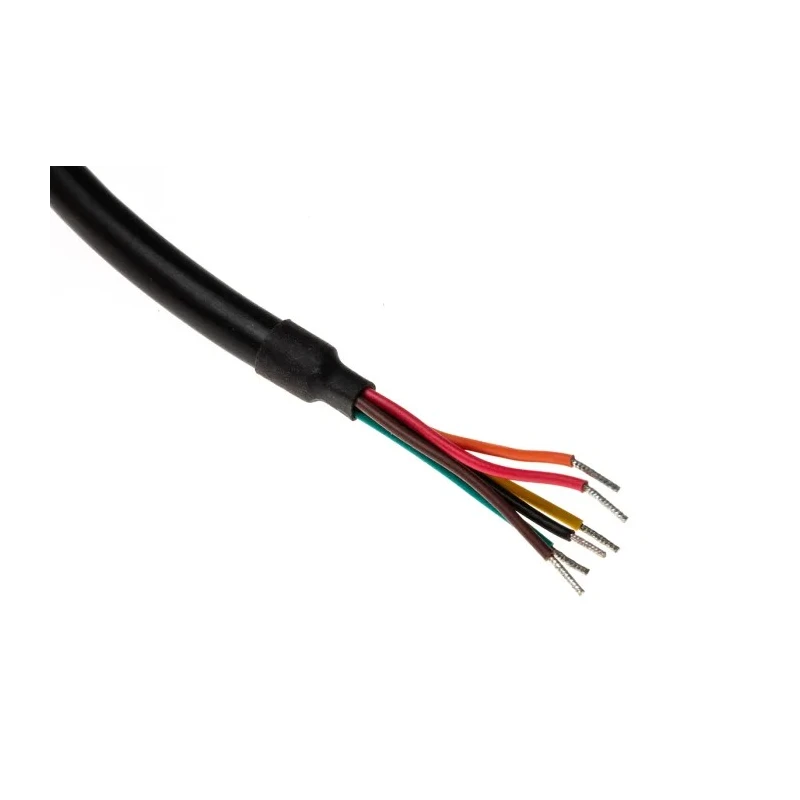

This cable is powered via USB at 5V and offers configurable TTL logic levels to accommodate various customer requirements. The cable is constructed with 24AWG wires of 5mm diameter, un-terminated with bare and tinned wire ends for flexible connectivity options.

Operating over a wide temperature range of -40°C to 85°C, this cable is suitable for industrial and embedded system environments. It supports data transfer rates up to 3 Mbps and features an internal EEPROM for user customization.

Certified RoHS, CE, and FCC compliant, this FTDI cable is compatible with multiple operating systems including Windows, Mac OS, and Linux through WHQL certified drivers. The unique serial number embedded in each cable adds a security layer for data transfer applications.

The cable connects directly to microcontroller UART or I/O pins. Uses USB 2.0 full speed compatible FT232R driver chip. Low USB bandwidth consumption enhances system efficiency. Supports various UART-end connector options.

Internal EEPROM allows user-specific configurations. Operates within a wide industrial temperature range. Cable length of 1.8 meters with durable 24AWG wiring. Compatible with major operating systems via certified drivers.

Unique serial number for secure file transfer.

This USB to TTL serial interface cable is ideal for embedded systems development, communication interface conversion, prototyping, and programming microcontroller UARTs or FPGAs. Its stable performance makes it well-suited for laboratory, industrial automation, and field programmable logic applications.
