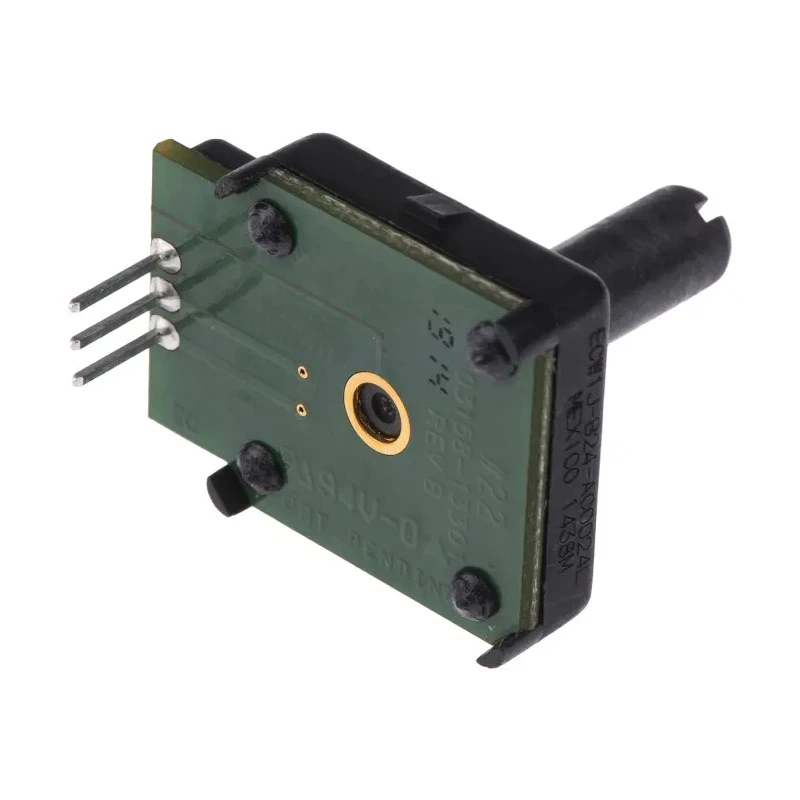

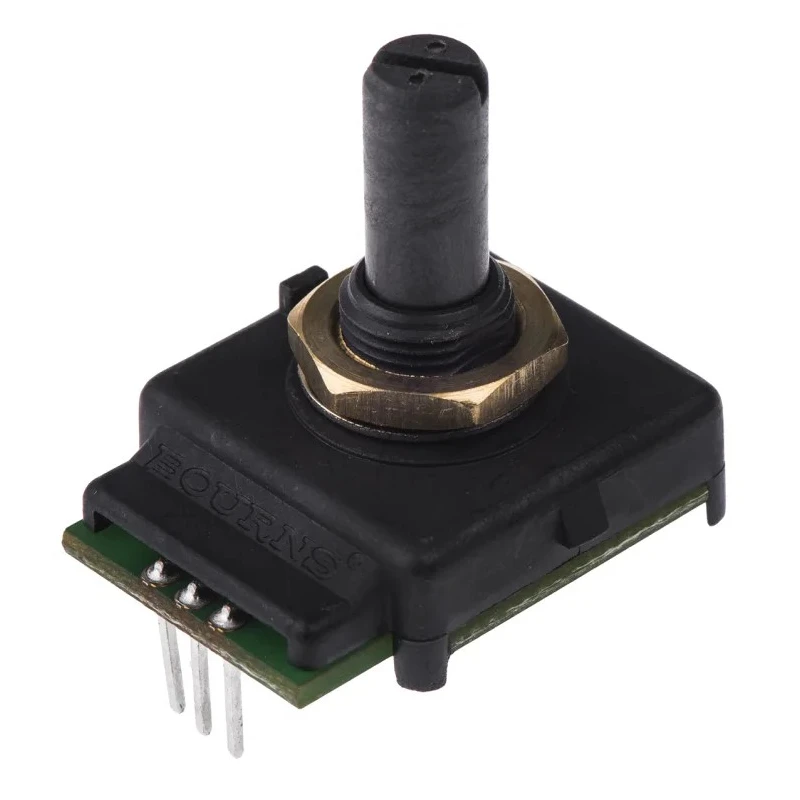

Bourns ECW Series Incremental Encoder 10V Supply, 24 ppr Pulses, Quadrature Signal, Solid Shaft 6.35 mm ECW1J-B24-AC0024L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Model | ECW1J-B24-AC0024L |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Series | ECW |
| Overall Width | 28.49mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 6.35mm |
| Overall height | 27.51mm |
| Shaft Type | Solid |
| Pulses per Revolution | 24ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 10V |
| Overall Depth | 22.2mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 120rpm |
| Output Signal Type | Quadrature |
Key Features
- This incremental encoder features a robust solid shaft of 6.35 mm diameter.
- Quadrature output signal ensures accurate position detection and speed measurement.
- Panel mount type with bushing mount offers reliable installation.
- Operational temperature range from -40°C to 85°C supports various industrial environments.
- IP40 rated for protection against dust ingress, suitable for controlled conditions.
- Maximum rotational speed rated at 120 rpm for moderate speed applications.
- ECW series encoders have long operating life due to durable contacting design.
- Compliant with RoHS standards ensuring environmental safety and regulation adherence.
Product Description
Bourns ECW1J-B24-AC0024L is a precision incremental encoder from the ECW series designed for reliable motion control applications in industrial automation and machinery. Operating on a 10V supply, it provides 24 pulses per revolution with quadrature output signals allowing high-resolution position and speed sensing for accurate feedback control.
The encoder features a solid shaft of 6.35 mm diameter with a panel bushing mount, ensuring secure mechanical installation. Its robust contacting digital design contributes to an exceptionally long operating life, making it suitable for demanding environments.
Designed to operate in a temperature range of -40°C to 85°C and protected with an IP40 rating, this encoder is suited for industrial, automation, and manufacturing use where moderate dust protection and temperature resilience are required.
Robust solid shaft with 6.35 mm diameter assures reliable mechanical coupling. Quadrature incremental output delivers precise rotational position feedback. Compact size minimizes footprint with 28.49 mm width, 27.51 mm height, and 22.2 mm depth.
Panel mount with bushing type supports easy and stable installation. Supports rotational speeds up to 120 rpm to accommodate various motion control needs. Compliant with RoHS, meeting environmental and safety regulations.
Long lifespan digital contacting encoder ideal for extended industrial use.
This Incremental Encoder is widely used in industrial automation, motion control systems, electronics manufacturing, and machinery requiring precise rotary position sensing and feedback.
Explore more industrial sensors and motion control encoders on EnvMart to find the right components for your projects and applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This encoder provides a quadrature output signal type, allowing for accurate position detection and speed measurement.
The shaft diameter is 6.35 mm, featuring a solid shaft design for reliable mechanical coupling.
It offers 24 pulses per revolution (ppr), which helps in providing high-resolution feedback.
This encoder has an IP40 rating, providing protection against dust ingress in controlled conditions.
The minimum operating temperature is -40°C, making it suitable for various industrial environments.
The maximum rotational speed is rated at 120 rpm, accommodating moderate speed applications.
The overall dimensions are 28.49 mm in width, 27.51 mm in height, and 22.2 mm in depth.
It features a panel mount type with a bushing mount for secure installation.
Yes, it is compliant with RoHS standards, ensuring environmental safety and regulation adherence.
This model is part of the ECW series, designed for reliable motion control applications.
It is widely used in industrial automation, motion control systems, and machinery requiring precise rotary position sensing.
