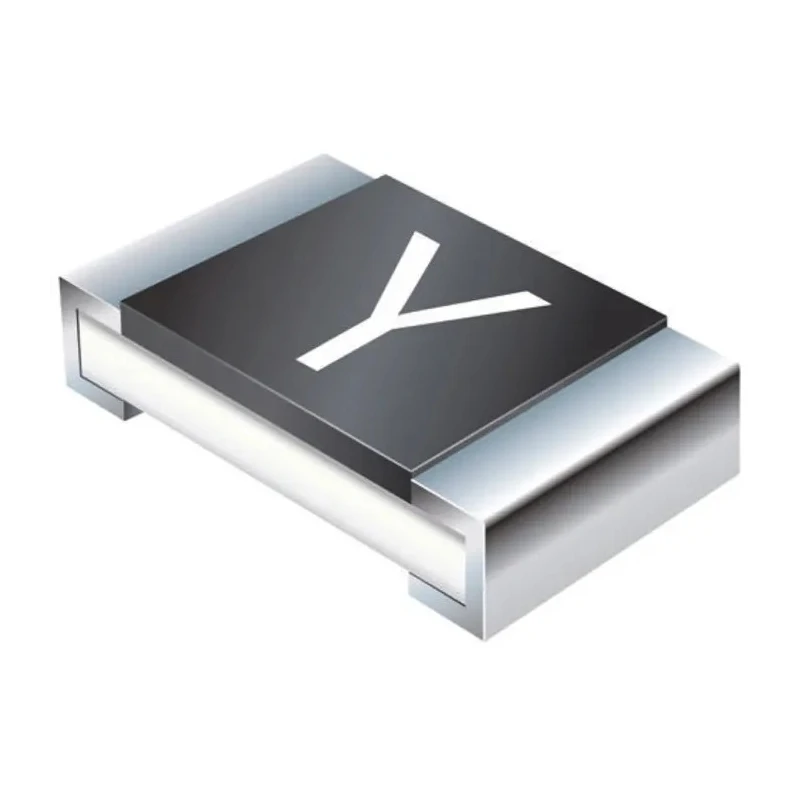

Bourns Ceramic Body Time Delay Non-Resettable Surface Mount Fuse 7A 24V DC SF-1206S700-2

Bourns SF-1206S700-2 is a ceramic material time delay non-resettable fuse designed for low voltage direct current (DC) applications rated at 7 amperes and 24 volts DC. This surface mount fuse provides durable and reliable overcurrent protection to sensitive electronic circuits and components, making it essential for industrial, laboratory, and commercial equipment protection.

The fuse operates with a slow blow time delay characteristic, which allows transient surges without nuisance blowing while safeguarding circuits from sustained overcurrent. Constructed using a ceramic body, it offers high thermal stability and mechanical strength, suitable for demanding environments.

With a miniature 1206 (3216 EIA) package footprint, it supports Surface Mount Technology (SMT) assembly for space-saving and efficiency on printed circuit boards (PCB). It features tin plated nickel copper terminals to ensure excellent solderability and corrosion resistance, improving long-term reliability.

Its high breaking capacity of 50 amperes protects circuits against extreme fault conditions, while the operating temperature range from -40°C to 105°C permits usage in varied climatic and industrial settings. The fuse exhibits a low resistance of 0.01 ohms minimizing power loss.

Typical applications include overcurrent protection for alarm systems, audio/visual electronics, computer boards, portable telephony, power supplies, and medical instrumentation. It helps prevent costly damage to high-value semiconductor components.

The product is supplied on a reel package to facilitate automated insertion into PCB assemblies, enhancing production efficiency. The fuse is UL 248-14 and RoHS compliant, ensuring adherence to recognized safety and environmental standards.

Country of origin is Taiwan, Province of China. High breaking capacity of 50A ensures effective protection against surges. Time delay fuse characteristics suitable for slow blow requirements. Compact surface-mount 1206 package size for space-saving circuit design.

Tin plated nickel copper terminals enhance solderability and corrosion resistance. Wide operating temperature range from -40°C to 105°C for robust performance. Constructed from durable ceramic material for thermal endurance.

Surface Mount Technology enables efficient automated PCB assembly. Ideal for protecting high value semiconductor devices in audio/visual and medical equipment. Complies with UL 248-14 and RoHS standards for safety and environmental compliance.
